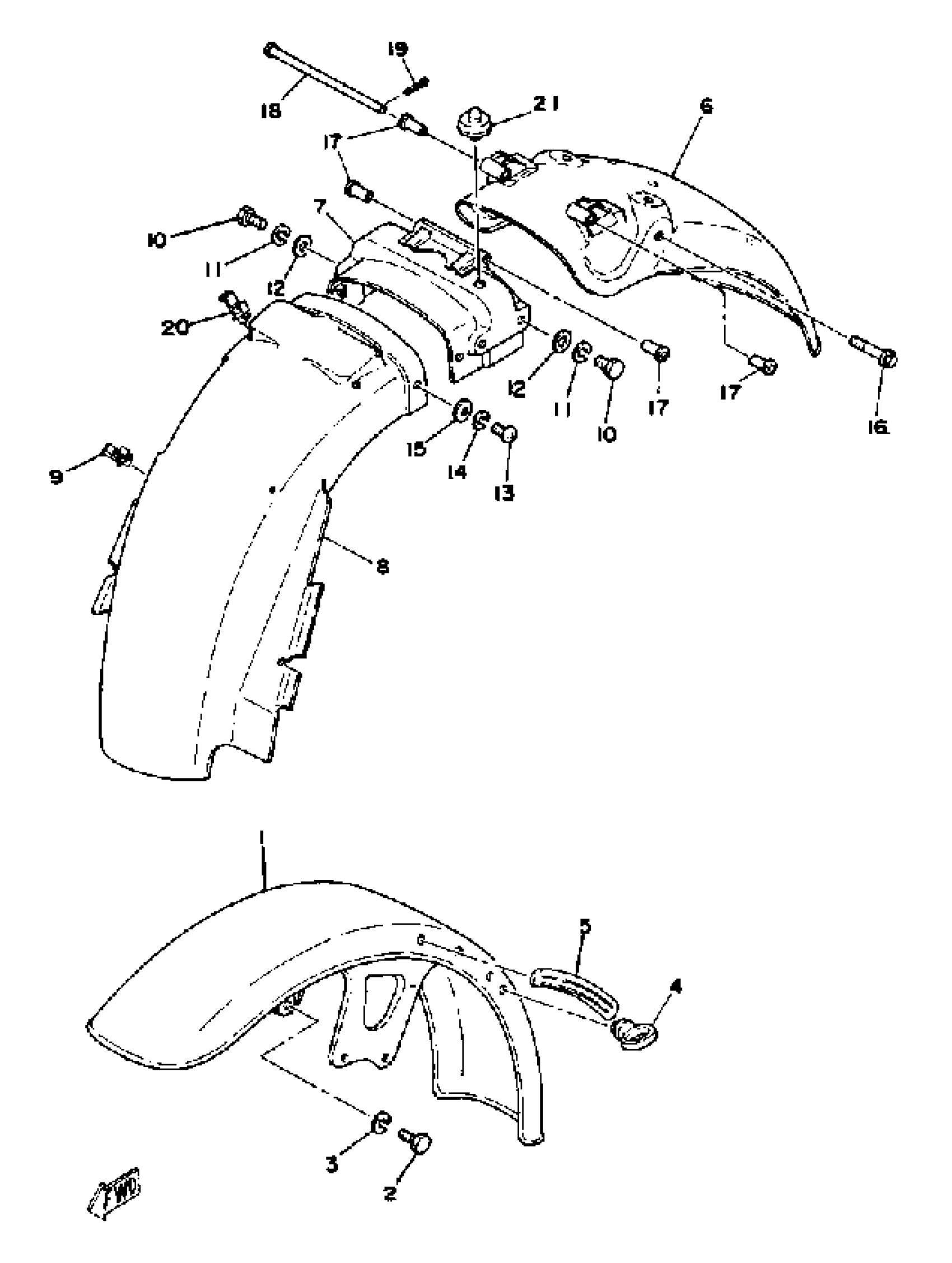

Yamaha XS750E_227501 (XS750E_227501) 1978 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1J7-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

PAD, CABLE

1J7-21517-00-00

Unavailable

6

FENDER, REAR

(2F3-21610-00-93)

Unavailable

7

STAY, FENDER 1

(1J7-21613-00-00)

Unavailable

8

GUARD, MUD

(3J2-21629-01-00)

Unavailable

9

CLAMP (1J7)

90464-16021-00

$12.49

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

WASHER, PLAIN (646)

92990-06600-00

$2.80

13

SCREW PAN HEAD

98580-06010-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06M08-00

Unavailable

16

BOLT, FLANGE

95814-08040-00

Unavailable

17

COLLAR

90387-06159-00

Unavailable

18

PIN, CLEVIS

(91701-06152-00)

Unavailable

19

PIN, COTTER

91490-16020-00

Unavailable

20

CLAMP (1J7)

90464-16025-00

Unavailable

21

DAMPER

1J7-21649-01-00

Unavailable
