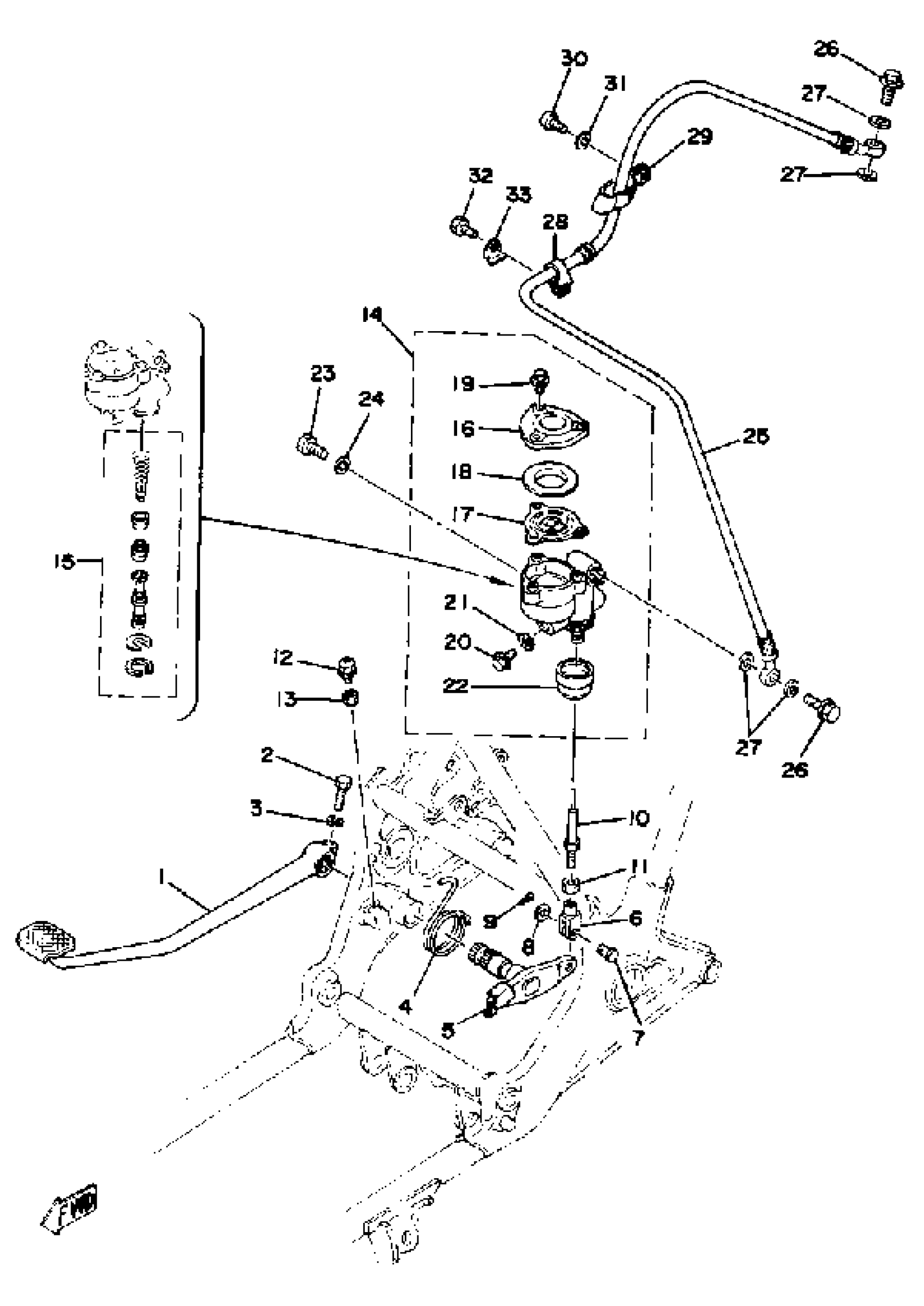

Yamaha XS750E_227501 (XS750E_227501) 1978 BRAKE PEDAL - REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

2G2-27211-00-00

Unavailable

2

BOLT (1J7)

90109-06468-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

SPRING, TORSION

(90508-40314-00)

Unavailable

5

SHAFT, BRAKE PEDAL

(1J7-27212-01-00)

Unavailable

6

JOINT

47X-27222-00-00

Unavailable

7

PIN W/HOLE 307181180000

90240-08013-00

$8.49

8

WASHER, PLATE 1562722600

90201-08083-00

$9.49

9

PIN, COTTER

91490-16020-00

Unavailable

10

ROD, BRAKE

1J7-27231-00-00

Unavailable

11

. NUT

95380-08700-00

Unavailable

12

SCREW 341272170000

90153-06008-00

$7.49

13

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

14

MSTR CYLINDER ASSEMBLY

1J7-25850-52-00

Unavailable

15

. UNAVAILABLE IN PRICE BOOK (1J3-20000-50)

1J3-W0042-01-00

Unavailable

16

. CAP, RESERVOIR

1J3-25852-52-00

Unavailable

17

. DIAPHRAGM RESERVOR

1J3-25854-51-00

Unavailable

18

. BUSH, DIAPHRAGM

1J3-25855-51-00

Unavailable

19

. SCREW, HEXAGON

90153-05014-00

Unavailable

20

. SCREW, hexagon

90153-10015-00

Unavailable

21

. WASHER, plate

90201-10610-00

Unavailable

22

. BOOT, MASTER CYLINDER

1J3-25862-50-00

Unavailable

23

BOLT, HEXAGON

97017-08025-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

HOSE, BRAKE

1J7-25874-01-00

Unavailable

26

BOLT, UNION(3GM)

90401-10159-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable

28

CLAMP

(90461-10023-00)

Unavailable

29

CLAMP

(90461-12021-00)

Unavailable

30

SCREW, PAN

98507-06014-00

Unavailable

31

WASHER, SPRING

92907-06100-00

Unavailable

32

BOLT, HEXAGON

97017-06012-00

Unavailable

33

WASHER, LOCK

(90215-06128-00)

Unavailable
