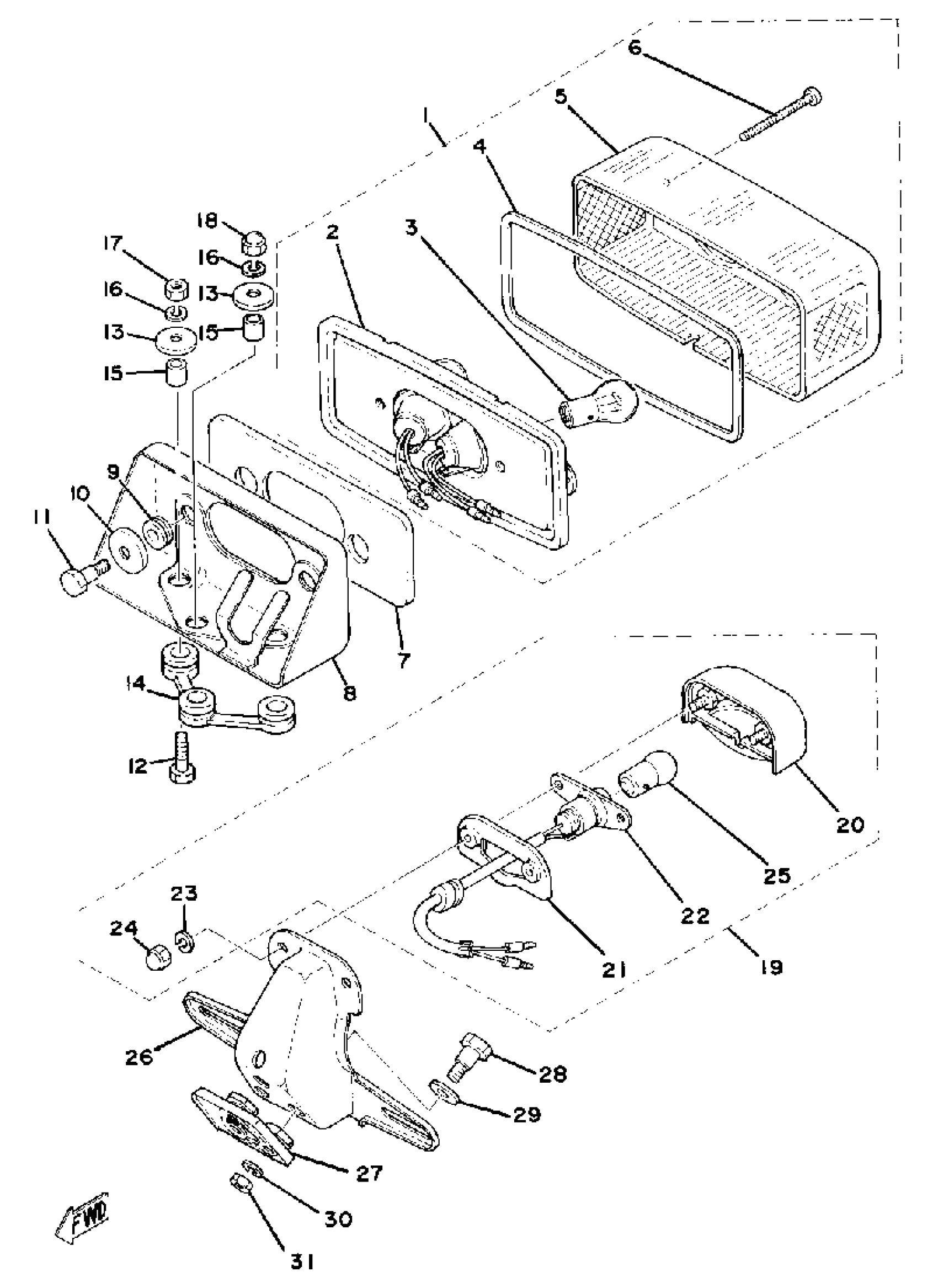

Yamaha XS750D (XS750) 1977 TAIL LAMP (XS750D) Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(1L9-84710-60-00)

Unavailable

2

. BASE, TAILLIGHT

(1A0-84711-60-00)

Unavailable

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. LENS, TAILLIGHT

1A8-84721-61-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

DAMPER, TAIL

(1A8-84736-00-00)

Unavailable

8

BRACKET, TAILLIGHT

(1J7-84702-00-35)

Unavailable

9

GROMMET (2T4)

90480-12237-00

$2.55

10

WASHER, SPECIAL

2H7-84754-00-00

$10.99

11

BOLT, TAILLAMP

1A0-84726-60-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

WASHER

90209-06012-00

$5.60

14

DAMPER, TAIL

(1J7-84736-00-00)

Unavailable

15

COLLAR

90387-07020-00

$8.49

16

WASHER, SPRING

92995-06100-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

NUT (J17)

95380-06800-00

Unavailable

19

LICENSE LITE ASSEMBLY

(1J7-84745-60-00)

Unavailable

20

BULB

(1J7-84744-60-00)

Unavailable

21

SEAT, BASE

(1A8-84742-60-00)

Unavailable

22

CORD ASSEMBLY, LCNCE LT

(1A8-84747-60-00)

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

NUT (CROWN)

95303-05800-00

Unavailable

25

BULB (12V 38W)

4H7-84744-00-00

Unavailable

26

BRACKET, LICENSE

(1A8-84751-60-33)

Unavailable

27

DAMPER

(1J3-84753-01-00)

Unavailable

28

BOLT 168217380000

90109-06017-00

Unavailable

29

WASHER, PLAIN

92990-08200-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

NUT, HEXAGON

95380-06600-00

Unavailable

31

NUT(650)

95380-06700-00

Unavailable
