STAND - FOOTREST

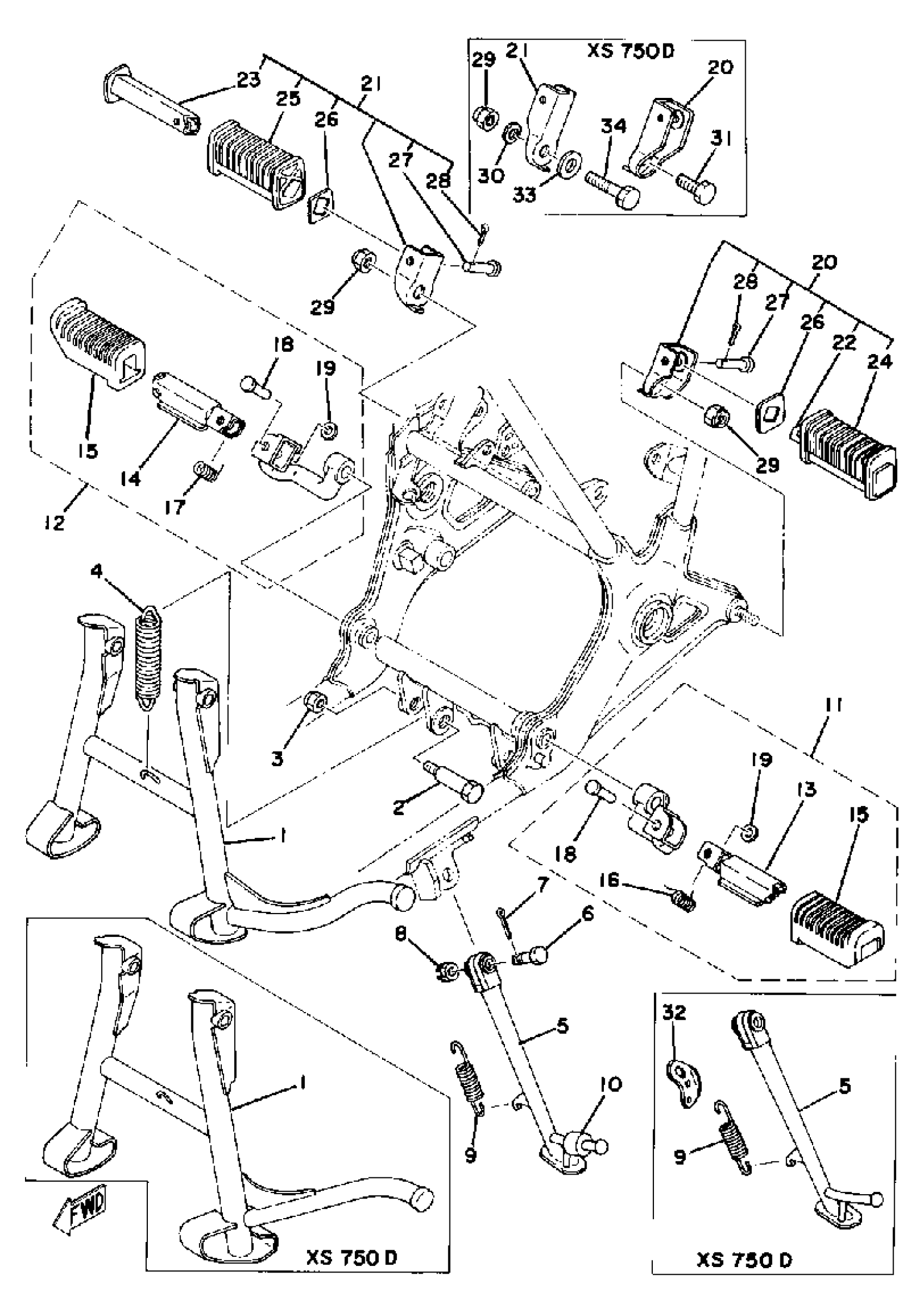

Yamaha XS750D (XS750) 1977 STAND - FOOTREST Diagram
#
1
STAND, MAIN
2G2-27111-01-00
Unavailable
1
STAND, MAIN
2G2-27111-01-00
Unavailable
2
BOLT
90109-10440-00
Unavailable
4
SPRING,TENSION
90506-32057-00
Unavailable
4
SPRING, TENSION
90506-40145-00
Unavailable
5
STAND, SIDE
(1J7-27311-00-00)
Unavailable
5
STAND, SIDE
(1T5-27311-00-00)
Unavailable
6
BOLT
90109-10399-00
Unavailable
8
NUT,CASTLE
90171-10049-00
Unavailable
10
STOPPER
278-27314-00-00
Unavailable
11
FRT FOOTREST ASSEMBLY L
(1J7-27410-02-00)
Unavailable
12
FRT FOOTREST ASSEMBLY R
1J7-27420-02-00
Unavailable
13
FOOTREST
1J7-27451-00-00
Unavailable
14
. FOOTREST
1J7-27461-00-00
Unavailable
15
COVER, FOOTREST
4L0-27423-00-00
Unavailable
16
. SPRING, TORSION
90508-20154-00
Unavailable
17
SPRING TORSION 371274560000
90508-20155-00
Unavailable
18
PIN (214-27418-00)
90243-08006-00
Unavailable
19
WASHER, PLATE (214-27417-00)
90201-06042-00
Unavailable
20
RR FOOTREST ASSEMBLY 1
(1J7-27430-01-00)
Unavailable
20
RR FOOTREST ASSEMBLY 1
1T4-27430-00-00
Unavailable
21
RR FOOTREST ASSEMBLY 2
1J7-27440-01-00
Unavailable
21
RR FOOTREST ASSEMBLY 2
1T4-27440-00-00
Unavailable
22
FOOTREST, REAR 1
447-27431-00-00
Unavailable
23
FOOTREST, REAR 2
447-27441-00-00
Unavailable
24
. COVER, RR FOOTREST
1J7-27433-00-00
Unavailable
24
COVER, REAR FOOTREST
447-27433-00-00
Unavailable
25
. COVER, RR FOOTREST
1J7-27444-00-00
Unavailable
26
WASHER 447274370000
90209-18070-00
Unavailable
27
PIN, CLEVIS (2F9)
91701-06035-00
Unavailable
28
PIN, COTTER
91490-16020-00
Unavailable
29
NUT, SELF-LOCKING(1KH)
90185-12134-00
Unavailable
29
NUT, SELF-LOCKING(1KH)
90185-12134-00
Unavailable
30
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
31
BOLT, HEXAGON
(97303-12025-00)
Unavailable
32
LINK, SIDE STAND
371-27315-00-00
Unavailable
33
WASHER (856)
90201-12317-00
Unavailable
34
BOLT(6TA)
97027-12050-00
Unavailable
