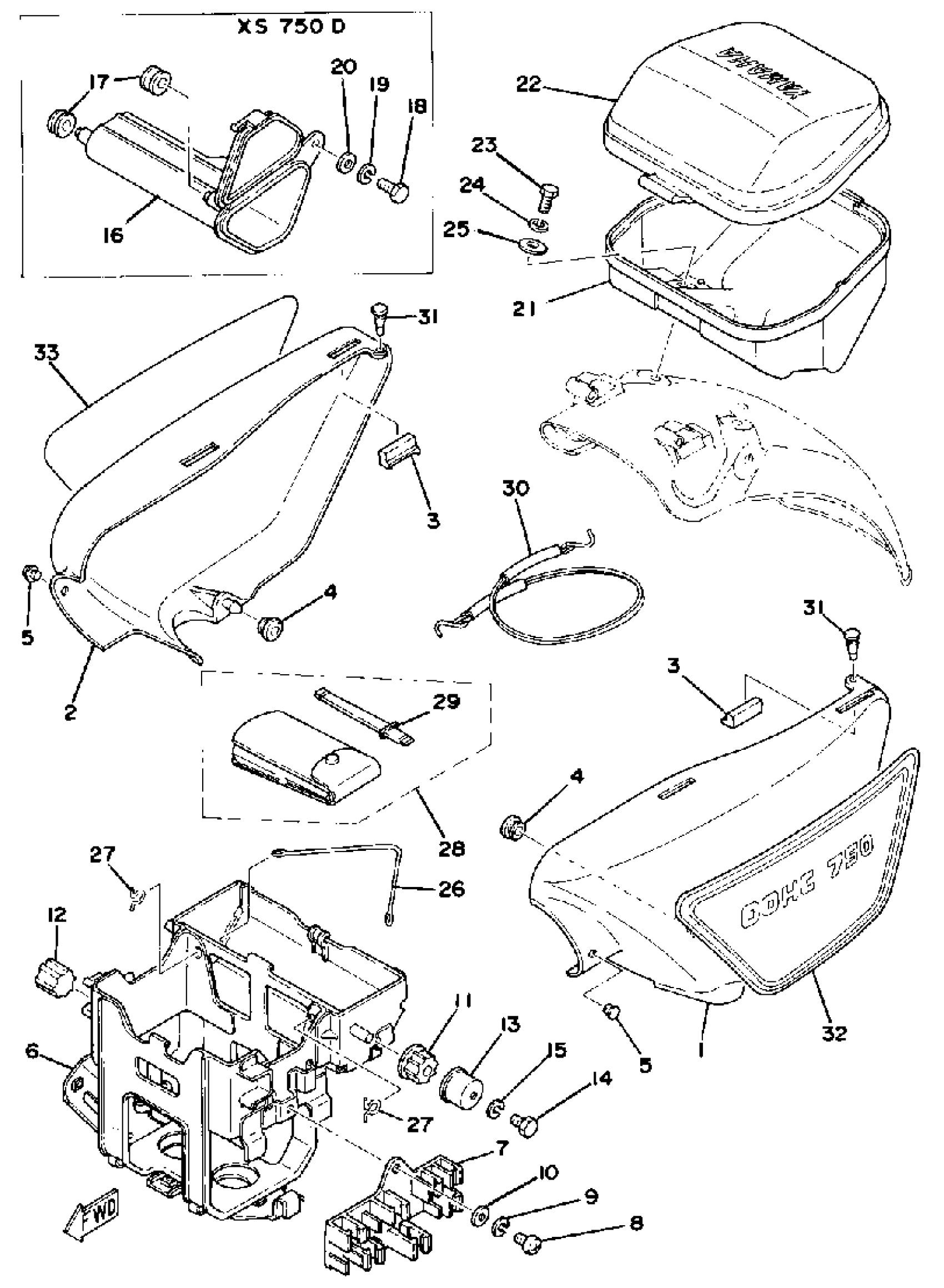

Yamaha XS750D (XS750) 1977 SIDE COVER - BATTERY BOX Diagram

#

Description

Price

1

COVER, SIDE 1

(1J7-21711-00-20)

Unavailable

1

COVER, SIDE 1

(1J7-21711-00-U8)

Unavailable

2

COVER, SIDE 2

(1J7-21721-00-20)

Unavailable

2

COVER, SIDE 2

(1J7-21721-00-U8)

Unavailable

3

DAMPER, SIDE COVER

360-21717-01-00

Unavailable

4

GROMMET(41Y)

90480-01401-00

$8.49

5

DAMPER, SIDE COVER

1J7-21717-00-00

$6.99

6

BOX, BATT.

(1J7-21170-02-33)

Unavailable

7

HOLDER, KNOB

(1J7-21794-00-00)

Unavailable

8

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

DAMPER

1J7-21746-00-00

Unavailable

12

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

13

BRACKET, DAMPER

(1J7-21798-00-00)

Unavailable

14

BOLT(3JP)

97017-06010-00

Unavailable

15

WASHER, SPRING

92995-06100-00

Unavailable

16

BOX

(1J7-21245-00-00)

Unavailable

17

GROMMET (1E6)

90480-15058-00

Unavailable

18

BOLT(8CP)

97017-06014-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLATE

90201-06380-00

Unavailable

21

BOX

1T4-2177A-00-00

Unavailable

22

LID

1T4-2177E-00-00

Unavailable

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

26

BAND, TOOL

256-21376-00-00

Unavailable

27

HOOK, TOOL BAND

256-21366-00-00

Unavailable

28

TOOL KIT

3J3-W2810-00-00

Unavailable

29

. GAUGE, OIL LEVEL

1J7-2815A-00-00

Unavailable

30

WIRE, HOOK

1T4-2814A-00-00

Unavailable

31

GROMMET (1J7)

90480-05201-00

Unavailable

32

EMBLEM 1

(1J7-21781-00-00)

Unavailable

32

EMBLEM 1

(1J7-21781-10-00)

Unavailable

33

EMBLEM 2

(1J7-21782-00-00)

Unavailable

33

EMBLEM 2

(1J7-21782-10-00)

Unavailable
