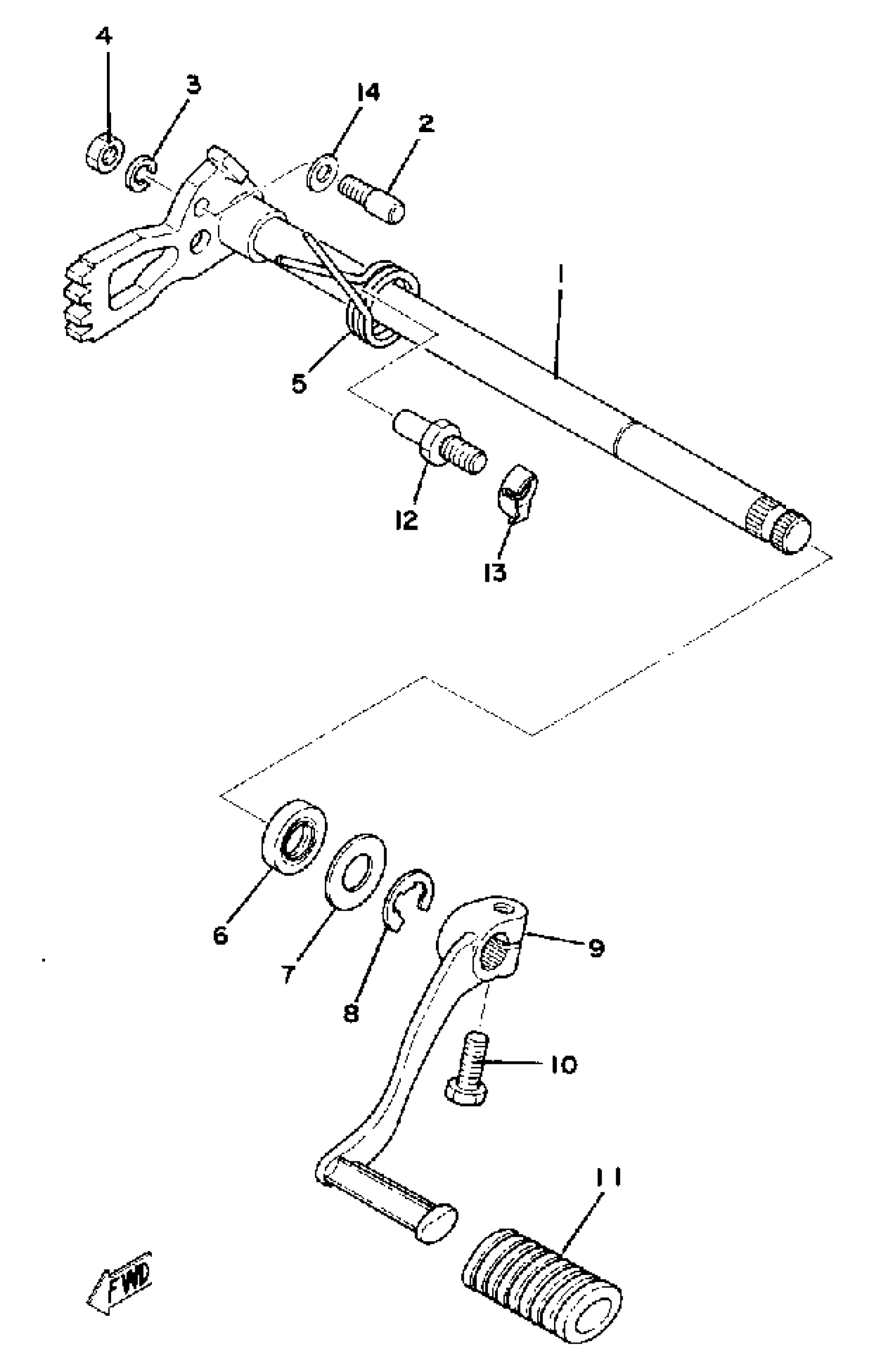

Yamaha XS750D (XS750) 1977 SHIFTER 2 Diagram

#

Description
Price

1

CHANGE SHAFT ASSEMBLY

99999-01084-00

Unavailable

2

SCREW 214181860000

90149-06017-00

$7.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

NUT, HEXAGON

95380-06600-00

Unavailable

5

SPRING TORSION 214181240000

90508-32052-00

$7.49

6

SEAL, OIL (30X)

93102-12321-00

$12.49

7

WASHER, PLATE (353)

90201-12575-00

$8.49

8

CIRCLIP

99006-10600-00

$9.49

9

PEDAL, SHIFT

2J2-18111-01-00

$51.99

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

12

BOLT (1J7)

90109-08441-00

$8.49

13

WASHER, LOCK

248-18139-09-00

Unavailable

14

WASHER, PLATE

90201-06636-00

Unavailable
