MIDDLE DRIVE GEAR

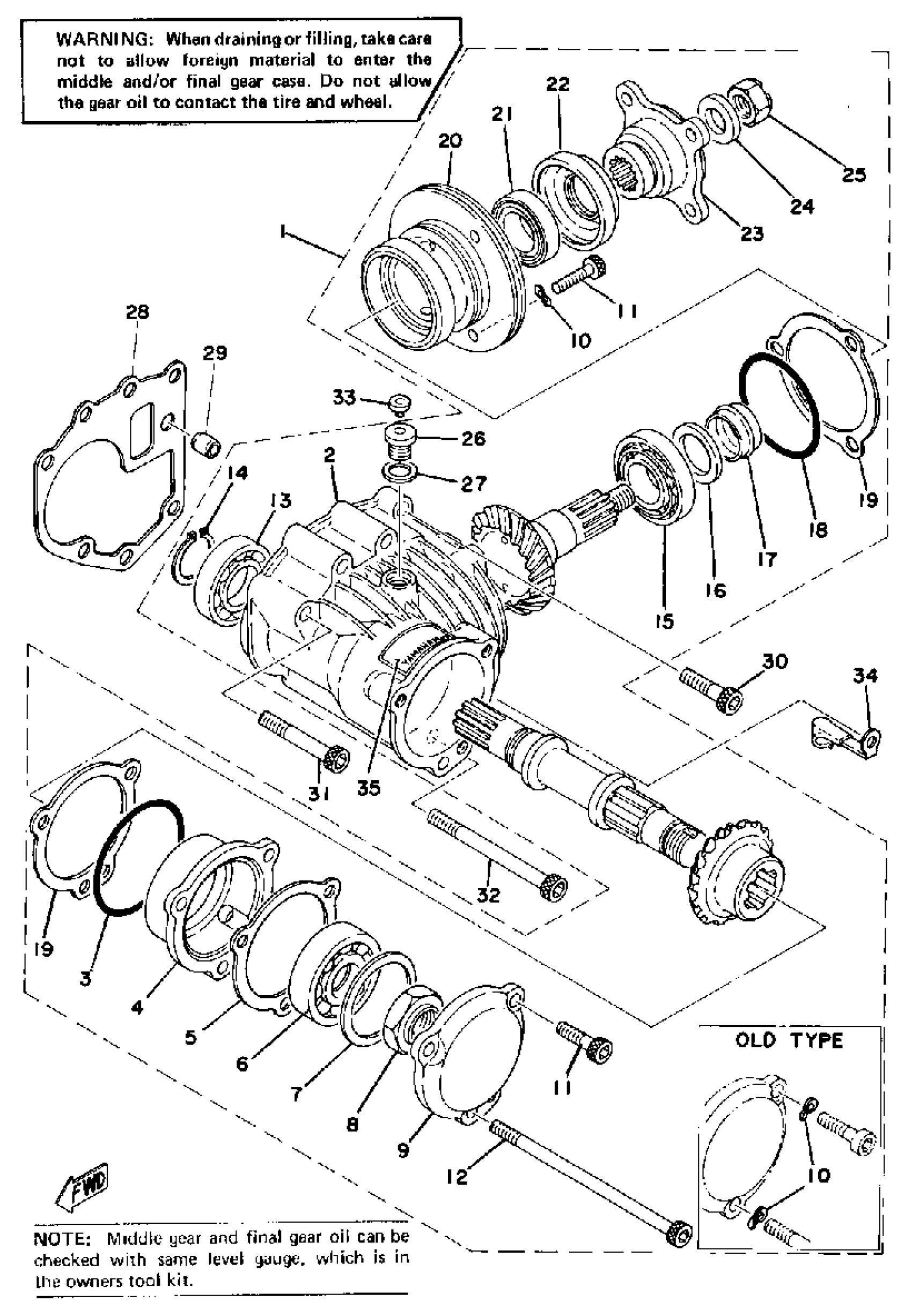

Yamaha XS750D (XS750) 1977 MIDDLE DRIVE GEAR Diagram
#
1
MIDDLE GR CASE ASSEMBLY
(1J7-17501-N1-00)
Unavailable
2
HOUSING, MID-GEAR
(99999-01013-00)
Unavailable
2
HOUSING MIDL GEAR
(YG4-11011-00-1G)
Unavailable
3
O-RING (1J7)
93210-68347-00
Unavailable
4
HOUSING, BEARING
(1J7-17521-Y0-00)
Unavailable
4
HOUSNG BRNG M DR
(YG4-11011-10-0G)
Unavailable
5
GASKET,HOUSING CAP
1J7-17519-10-00
Unavailable
8
. NUT, SPEC''L SHAPE
90179-24230-00
Unavailable
9
CAP, HOUSING
(1J7-17538-Y1-00)
Unavailable
10
WASHER(6TA)
92907-08700-00
Unavailable
12
BOLT,SOCKET HEAD
91317-08160-00
Unavailable
13
BEARING(2HR)
93306-00612-00
Unavailable
14
CIRCLIP(4A6)
99009-30400-00
Unavailable
15
. BEARING
93332-00022-00
Unavailable
16
WASHER, PLATE (1J7)
90201-25634-00
Unavailable
17
. SPACER, EXPANSION
1J7-17571-Y0-00
Unavailable
18
O-RING (1J7)
93210-68347-00
Unavailable
19
. SHIM, PINION
1J7-17531-Y0-15
Unavailable
19
SHIM PINION 0.3T
(YG4-11707-70-0G)
Unavailable
19
SHIM PINION 0.15T
(YG4-11708-90-0G)
Unavailable
19
SHIM PINION 0.1T
(YG4-11710-70-0G)
Unavailable
20
. HOUSING, BEARING
1J7-17551-Y0-00
Unavailable
21
BRG, TAPERED ROLLER (409)
93332-00001-00
Unavailable
22
OIL SEAL (35X63X16.5-1J7)
93101-35085-00
Unavailable
23
. FLANGE, MIDDLE GEAR
1J7-17555-Y0-00
Unavailable
24
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
25
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
26
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
27
GASKET
214-11198-01-00
Unavailable
28
GASKET,MDL GR CASE
1J7-17518-10-00
Unavailable
29
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
30
BOLT, SOCKET
91317-08035-00
Unavailable
31
BOLT, SOCKET
91317-08060-00
Unavailable
32
BOLT, SOCKET HEAD
91316-08100-00
Unavailable
33
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
34
CLAMP
(90465-10137-00)
Unavailable
35
LABEL, OIL CAUTION
1J7-46181-11-00
Unavailable
