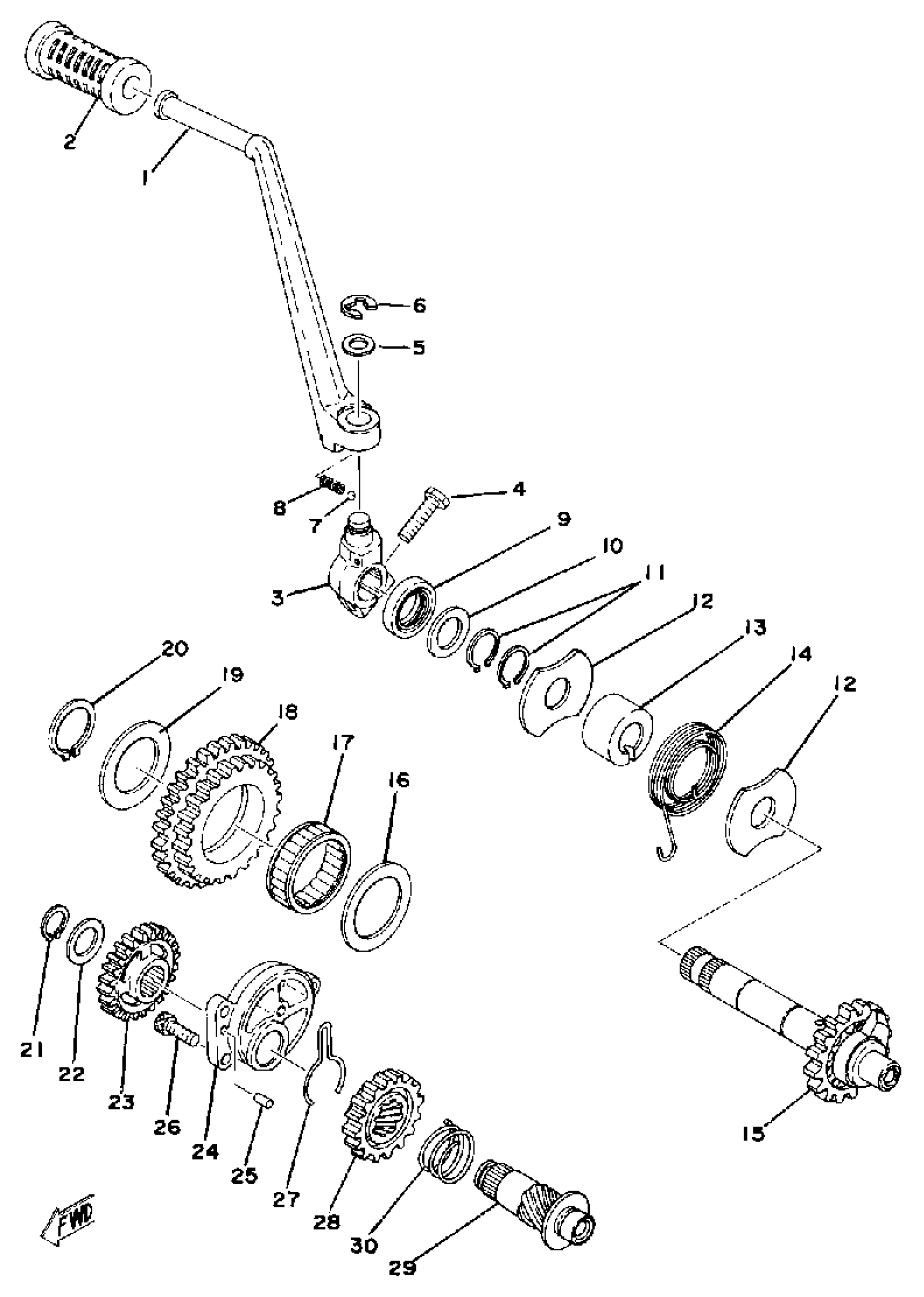

Yamaha XS750D (XS750) 1977 KICK STARTER Diagram

#

Description
Price

1

CRANK,KICK

278-15611-00-00

Unavailable

2

COVER, KICK LEVER

156-15618-01-00

$7.99

3

BOSS, KICK CRANK

583-15621-00-00

$89.99

4

BOLT, HEXAGON

97013-08030-00

$2.49

5

WASHER PLATE 278156130000

90201-15234-00

$8.49

5

WASHER (3XVC)

90201-153A1-00

$8.49

6

CIRCLIP

99006-10600-00

$9.49

7

BALL (12R)

93507-32031-00

$4.73

8

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

9

OIL SEAL (20X30X7-371)

93102-20108-00

$11.49

10

WASHER PLATE 328171160000

90201-20276-00

$8.49

11

CIRCLIP(1AR)

99009-20400-00

$8.49

12

COVER,SPRING

278-15676-00-00

$5.49

13

SPACER

371-15666-00-00

Unavailable

14

SPRING TORSION 278156650000

90508-30051-00

$15.99

15

KICK AXLE ASSEMBLY

1J7-15660-00-00

Unavailable

16

SHIM

(1J7-15644-00-00)

Unavailable

17

BEARING, CYLINDER.#11

(93311-84026-00)

Unavailable

18

IDLE GEAR ASSEMBLY

(1J7-15650-00-00)

Unavailable

19

SHIM, KICK SHAFT

(1J7-15645-00-00)

Unavailable

20

. CIRCLIP, S-TYPE (S-35)

93410-35027-00

Unavailable

21

CIRCLIP (525)

93410-17037-00

Unavailable

22

SHIM 1

(150-17417-00-10)

Unavailable

23

GEAR 4

(1J7-15516-01-00)

Unavailable

24

HOLDER, KICK GEAR

(1J7-15654-00-00)

Unavailable

25

PIN,DOWEL (603)

93604-10011-00

Unavailable

26

BOLT,SOCKET

91317-06020-00

Unavailable

27

CLIP

90468-26066-00

Unavailable

28

GEAR, KICK 5

1J7-15527-02-00

Unavailable

29

SHAFT

(1J7-15659-01-00)

Unavailable

30

SPRING, COMPRESSION

90501-15469-00

Unavailable
