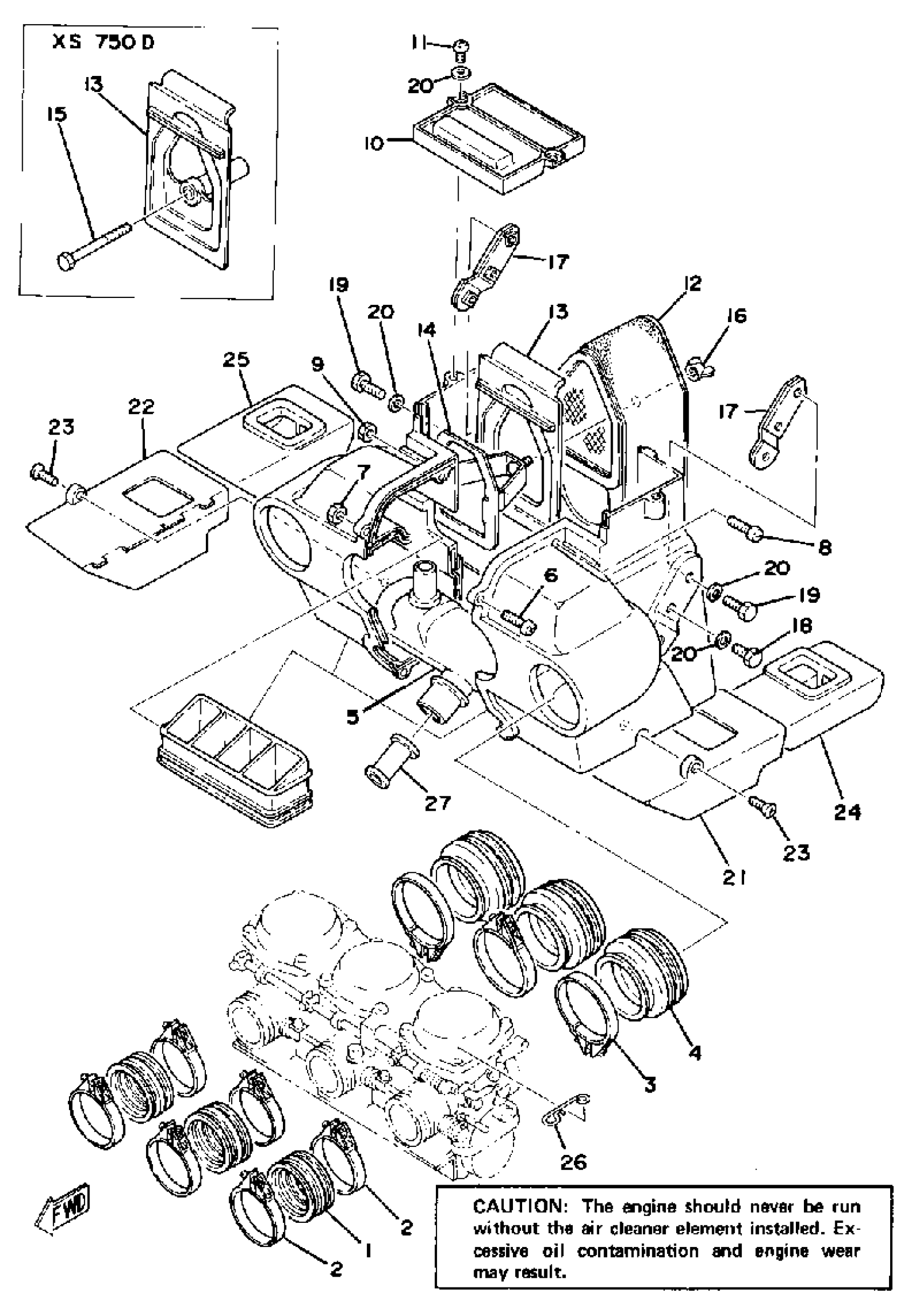

Yamaha XS750D (XS750) 1977 INTAKE Diagram
#
Description
Price
1
JOINT, CARBURETOR 1
1J7-13586-01-00
Unavailable
4
JOINT, AIR CLNR 1
1J7-14453-00-00
Unavailable
5
AIR CLEANER CASE
(1J7-W1441-00-00)
Unavailable
5
AIR CLEANER CASE
(1T4-W1441-00-00)
Unavailable
10
CAP, CLEANER CASE 2
(1J7-14422-00-00)
Unavailable
12
ELEMENT, AIR CLNR
1J7-14451-00-00
Unavailable
13
PLATE, ELEMENT
(1J7-14472-00-00)
Unavailable
13
PLATE, ELEMENT
(1T4-14472-00-00)
Unavailable
14
PLATE, ELEMENT FTNG
(1T4-14468-00-00)
Unavailable
15
BOLT
97301-06065-00
Unavailable
16
NUT, WING (646)
90175-06008-00
Unavailable
17
PLATE, CLNR CS FTNG
(1J7-14484-00-00)
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
18
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
19
BOLT, HEXAGON
97017-06020-00
Unavailable
20
WASHER, PLAIN (646)
92990-06600-00
Unavailable
21
SILENCER, INTAKE 1
(1J7-14431-01-00)
Unavailable
22
SILENCER, INTAKE 2
(1J7-14441-01-00)
Unavailable
23
SCREW, FLAT
98707-06014-00
Unavailable
24
PIPE, SUCTION 1
(1J7-14423-00-00)
Unavailable
25
PIPE, SUCTION 2
(1J7-14433-00-00)
Unavailable
26
CLIP
(90468-20072-00)
Unavailable
27
PIPE, BREATHER 4
(1J7-11125-02-00)
Unavailable
