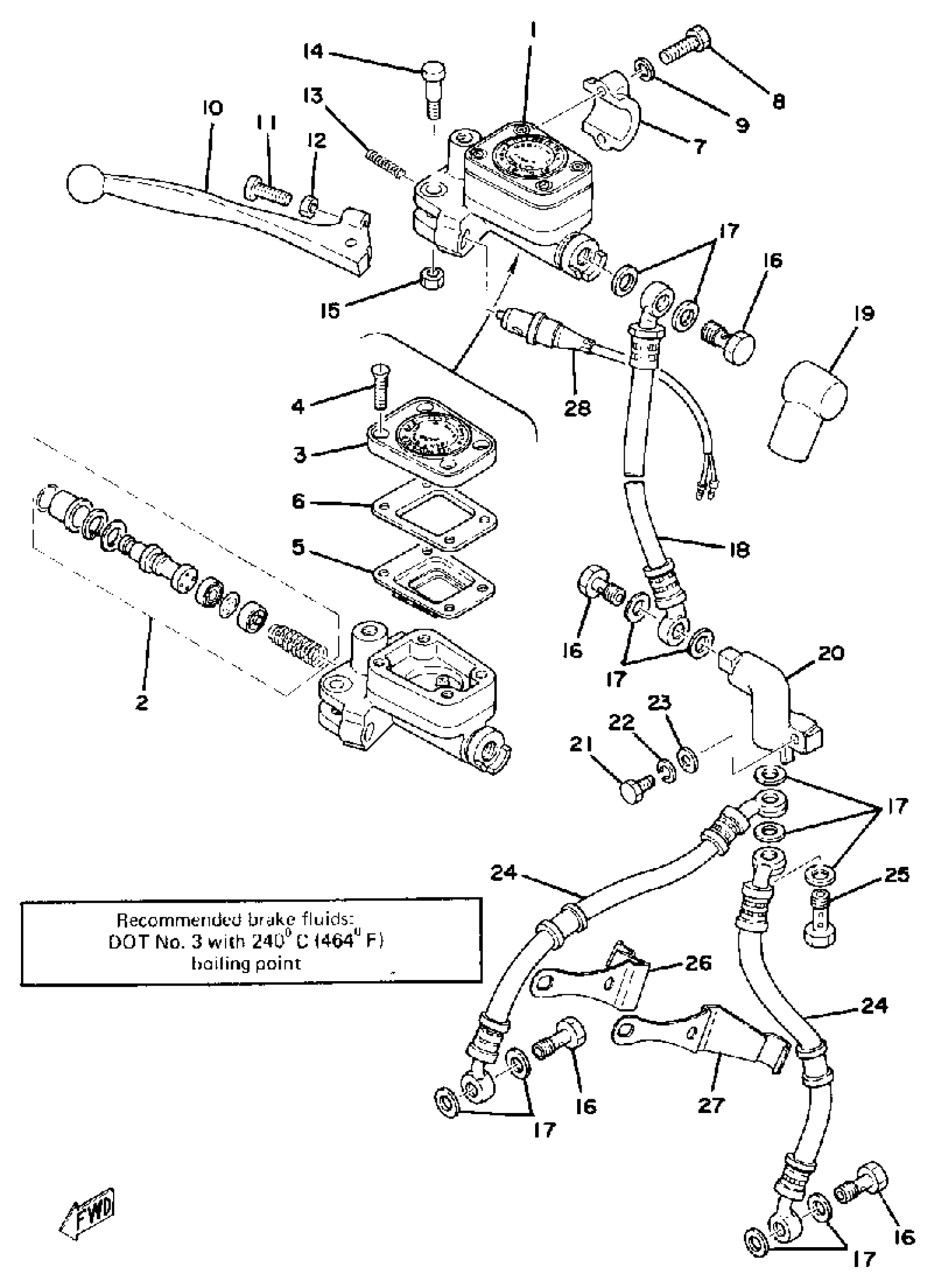

Yamaha XS750D (XS750) 1977 FRONT MASTER CYLINDER - BRAKE HOSE Diagram

#

Description
Price

1

MSTR CYLINDER ASSEMBLY

1J3-25850-23-00

Unavailable

2

CYLINDER KIT, MASTER (DOUBLE)

1J3-W0041-20-00

Unavailable

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

SCREW, FLAT

98707-05014-00

$9.49

5

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

6

. GASKET

1J3-25855-01-00

Unavailable

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT, HEXAGON

97017-06025-00

$4.24

9

WASHER, SPRING

92995-06100-00

Unavailable

10

LEVER R

(341-83922-00-00)

Unavailable

11

SCREW

90146-06005-00

Unavailable

11

SCREW (2L0)

90149-06131-00

$8.49

12

NUT HEXAGON 306839270000

90170-06010-00

$8.49

13

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

14

BOLT (4L0)

90109-06577-00

$5.60

15

NUT(650)

95380-06700-00

Unavailable

15

NUT, SELF-LOCKING

95617-06100-00

Unavailable

16

BOLT, UNION(3GM)

90401-10159-00

Unavailable

17

WASHER, PLATE(481)

90201-10118-00

Unavailable

18

HOSE, BRAKE 1

(1J7-25872-02-00)

Unavailable

18

HOSE, BRAKE 1

(1T4-25872-01-00)

Unavailable

19

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

20

JOINT

1J7-25885-01-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

$4.24

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

HOSE, BRAKE 2

1J7-25873-01-00

Unavailable

25

BOLT, UNION

90401-10038-00

Unavailable

26

HOLDER, BRKE HOSE 1

1J7-25875-00-00

Unavailable

27

HOLDER, BRKE HOSE 2

1J7-25876-00-00

Unavailable

28

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable
