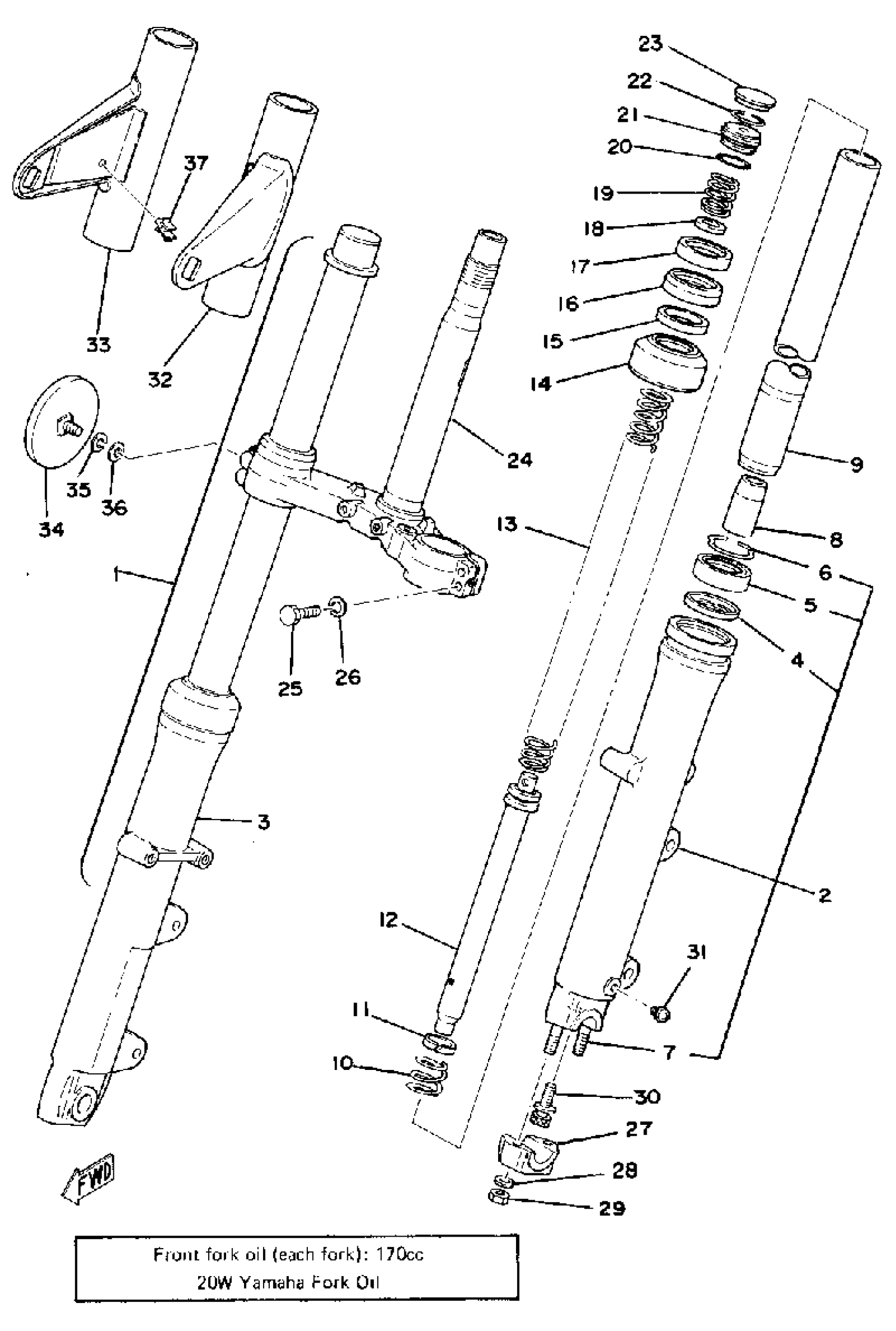

Yamaha XS750D (XS750) 1977 FRONT FORK (XS750D) Diagram

#

Description

Price

1

FRONT FORK ASSEMBLY

(1J7-23101-02-00)

Unavailable

2

TUBE, OUTER 1

(1J7-23126-02-00)

Unavailable

3

TUBE, OUTER 2

(1J7-23136-02-00)

Unavailable

4

.. SEAL, SPACER

(1J7-23147-00-00)

Unavailable

5

OIL SEAL

1UA-23145-00-00

Unavailable

6

CLIP, OIL SEAL

34X-23156-00-00

$8.99

7

.. BOLT, STUD

90116-08260-00

Unavailable

8

. SPACER, OIL LOCK

(1J3-23166-00-00)

Unavailable

9

. INNER TUBE 1

1J7-23110-02-00

Unavailable

10

. SPRING, REBOUND

1J3-23151-00-00

Unavailable

11

. RING, PISTON FRTFRK

(1J3-23157-00-00)

Unavailable

12

CYLINDER, FRTFRK

(1J7-23170-02-00)

Unavailable

13

SPRING, FRONT FORK

(1J7-23141-02-00)

Unavailable

14

SEAL, DUST

29L-23144-01-00

$25.99

15

. GASKET

23W-23163-00-00

Unavailable

16

GUIDE, COVER LOWER

(1J7-23116-00-00)

Unavailable

17

GUIDE, COVER UPPER

(1J7-23115-00-00)

Unavailable

18

SEAT, SPRING UPPER

(1J7-23142-00-00)

Unavailable

19

SPRING, REBOUND

(1J7-23151-01-00)

Unavailable

20

. GASKET

1J3-23114-00-00

Unavailable

21

. BOLT, CAP

(1J3-23111-00-00)

Unavailable

22

. CIRCLIP

1J3-23183-01-00

Unavailable

23

. CAP, FRONT FORK

1J3-23168-00-00

Unavailable

24

UNDER BRACKET

(1J7-23340-02-33)

Unavailable

25

BOLT

97014-08040-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

HOLDER, AXLE

(1J7-23167-00-00)

Unavailable

28

.. WASHER, PLATE

92990-08600-00

Unavailable

29

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

30

BOLT

3M7-23181-00-00

Unavailable

31

. PLUG, DRAIN

1E7-23119-00-00

Unavailable

32

COVER, UPPER 1

1J7-23121-01-93

Unavailable

33

COVER, UPPER 2

(1J7-23131-01-93)

Unavailable

34

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

. WASHER, PLAIN

92990-05200-00

Unavailable

37

CLAMP (1J7)

90464-16025-00

Unavailable
