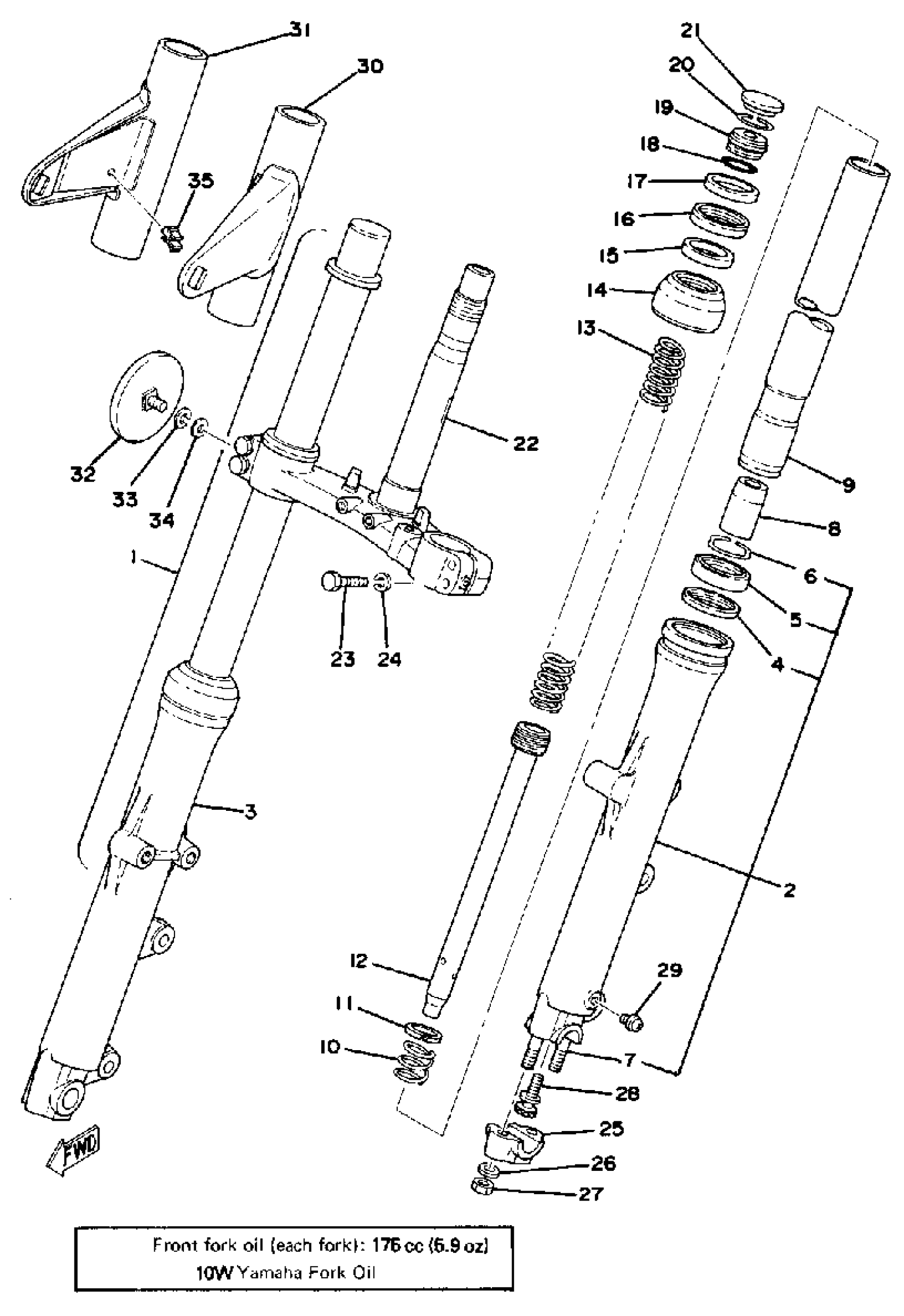

Yamaha XS750D (XS750) 1977 FRONT FORK (XS750-2D) Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1T4-23101-00-00)

Unavailable

2

TUBE, OUTER 1

(1T4-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(1T4-23136-00-00)

Unavailable

4

O-RING

1KH-23147-00-00

$25.99

5

OIL SEAL

1KH-23145-00-00

$28.99

6

CLIP, OIL SEAL

34X-23156-00-00

$8.99

7

.. BOLT, STUD

90116-08260-00

Unavailable

8

. SPACER, OIL LOCK

(1J3-23166-00-00)

Unavailable

9

INNER TUBE 1

(1T4-23110-00-00)

Unavailable

10

. SPRING, REBOUND

1J3-23151-00-00

Unavailable

11

. RING, PISTON FRTFRK

1T4-23157-00-00

Unavailable

12

CYLINDER.COMP.FRT.FORK

(99999-01185-00)

Unavailable

13

SPRING, FRONT FORK

(1T4-23141-01-00)

Unavailable

14

. SEAL, DUST

1T4-23144-00-00

Unavailable

15

. GASKET

23W-23163-00-00

Unavailable

16

GUIDE, COVER LOWER

(1T4-23116-00-00)

Unavailable

17

. GUIDE, COVER UPPER

1T4-23115-00-00

Unavailable

18

. GASKET

1J3-23114-00-00

Unavailable

19

. BOLT, CAP

(1J3-23111-00-00)

Unavailable

20

. CIRCLIP

1J3-23183-01-00

Unavailable

21

. CAP, FRONT FORK

1J3-23168-00-00

Unavailable

22

. UNDER BRACKET (1T4-23340-00-33)

1T4-23340-01-33

Unavailable

23

BOLT

97014-08040-00

Unavailable

24

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

25

HOLDER, AXLE

(1J7-23167-00-00)

Unavailable

26

.. WASHER, PLATE

92990-08600-00

Unavailable

27

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

28

BOLT

3M7-23181-00-00

Unavailable

29

. PLUG, DRAIN

1E7-23119-00-00

Unavailable

30

COVER, UPPER 1

1J7-23121-01-93

Unavailable

31

COVER, UPPER 2

(1J7-23131-01-93)

Unavailable

32

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

33

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

34

. WASHER, PLAIN

92990-05200-00

Unavailable

35

CLAMP (1J7)

90464-16025-00

Unavailable
