FINAL DRIVE GEAR - DRIVE SHAFT

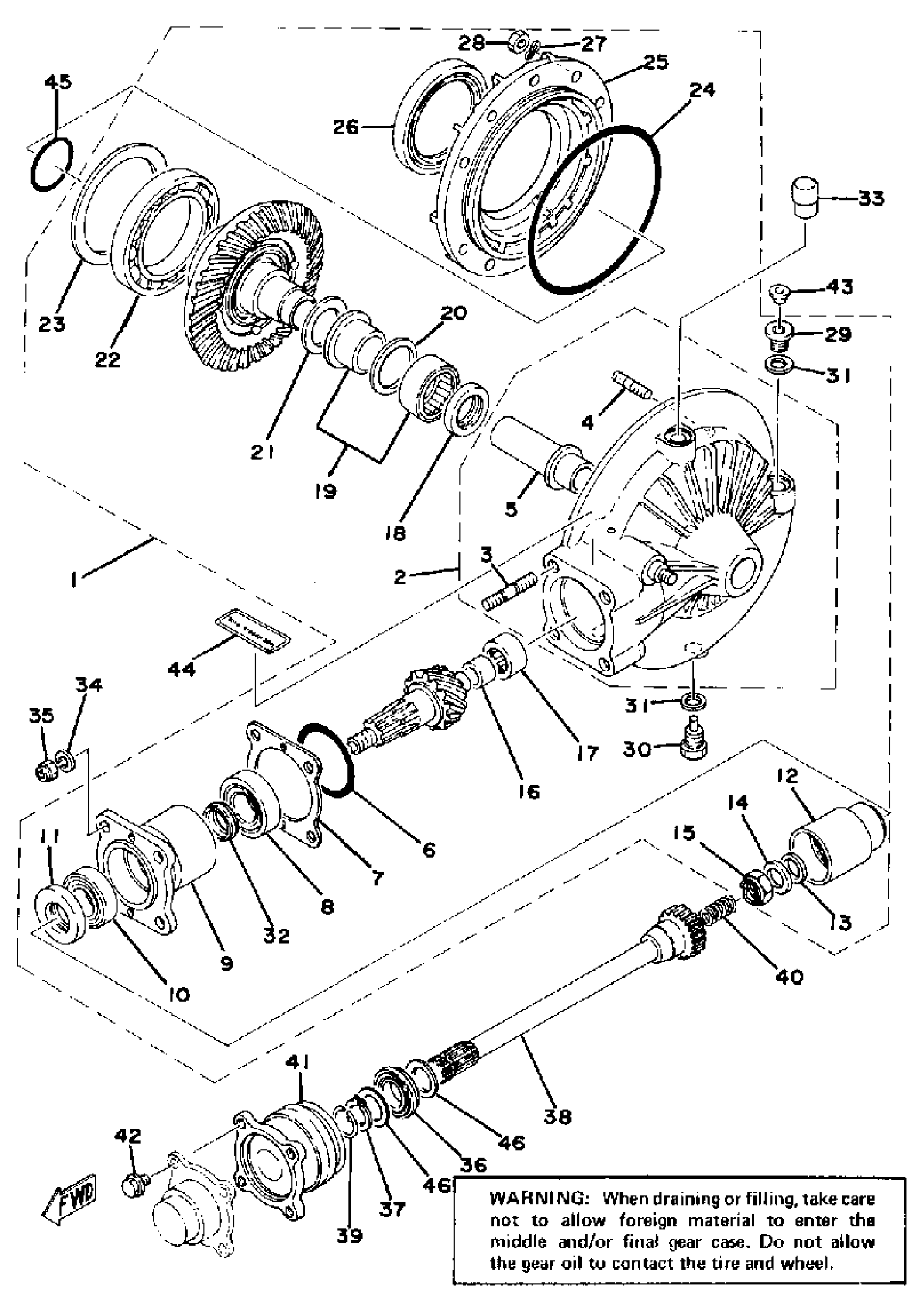

Yamaha XS750D (XS750) 1977 FINAL DRIVE GEAR - DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASSEMBLY
(1J7-46101-N0-00)
Unavailable
2
HOUSING, DR SHAFT
(1J7-46150-Y0-00)
Unavailable
3
BOLT, STUD
(90116-10248-00)
Unavailable
4
.. BOLT, STUD
90116-08247-00
Unavailable
5
.. COLLAR, GUIDE
1J7-46153-Y0-00
Unavailable
7
. SHIM (035T)
1J7-46127-Y0-30
Unavailable
7
SHIM,DRIVE PISTON
1J7-46127-Y0-40
Unavailable
7
SHIM,DRIVE PISTON
1J7-46127-Y0-40
Unavailable
7
. SHIM (050T)
1J7-46127-Y0-50
Unavailable
7
SHIM, DRIVE PISTON
(1J7-46127-Y0-55)
Unavailable
8
BRG,TAPERED ROLLER 52MM KY
93332-00024-00
Unavailable
9
HOUSING, BEARING
(1J7-46124-Y0-00)
Unavailable
11
. OIL SEAL
93101-38086-00
Unavailable
12
COUPLING, GEAR
(1J7-46123-Y0-00)
Unavailable
12
COUPLING, GEAR
(YG4-11707-11-0G)
Unavailable
13
SPACER BEAR 1.0T
(YG9-00922-14-4G)
Unavailable
13
SPACER BRNG 1.52T
(YG9-00922-24-4G)
Unavailable
13
SPACER BRNG 1.54T
(YG9-00922-34-4G)
Unavailable
13
SPACER BRNG 1.56T
(YG9-00922-44-4G)
Unavailable
13
SPACER BRNG 1.58T
(YG9-00922-54-4G)
Unavailable
13
SPACER BRNG 1.6T
(YG9-00922-64-4G)
Unavailable
13
SPACER BRNG 1.7T
(YG9-00922-74-4G)
Unavailable
13
SPACER BRNG 1.8T
(YG9-00922-84-4G)
Unavailable
13
SPACER BRNG 1.9T
(YG9-00922-94-4G)
Unavailable
14
WASHER, PLATE 11J7)
90201-14632-00
Unavailable
15
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
16
RACE, INNER
(1J7-46122-Y0-00)
Unavailable
17
BEARING ASSY
2H7-46102-00-00
Unavailable
18
OIL SEAL (30X42X7-1J7)
93101-30084-00
Unavailable
19
. BEARING ASSEMBLY
1J7-46106-N0-00
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-18
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-19
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-20
Unavailable
20
. WASHER, THRUST
1J7-46118-Y0-21
Unavailable
21
SHIM, THRUST
(1J7-46119-Y0-10)
Unavailable
21
SHIM, THRUST
(1J7-46119-Y0-20)
Unavailable
22
BEARING, CYLINDER.#16
(93316-01402-00)
Unavailable
23
. SHIM, RING GEAR (035T)
1J7-46117-Y0-35
Unavailable
23
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
Unavailable
23
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
Unavailable
23
SHIM RING GR 0.55T
(YG9-00928-64-4G)
Unavailable
24
O-RING (1J7)
93211-44348-00
Unavailable
25
HOUSING, BEARING
(1J7-46152-Y0-00)
Unavailable
26
OIL SEAL (4H7)
93102-70167-00
Unavailable
27
WASHER(6TA)
92907-08700-00
Unavailable
28
NUT(6L2)
95333-08600-00
Unavailable
29
PLUG, STRAIGHT SCREW
90340-14002-00
Unavailable
30
PLUG, STRAIGHT SCREW
90340-14004-00
Unavailable
31
GASKET
214-11198-01-00
Unavailable
32
SPACER, EXPANSION
1J7-46129-Y1-00
Unavailable
33
BREATHER COMP.
2H7-17590-00-00
Unavailable
34
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
35
NUT, U
95614-10100-00
Unavailable
36
OIL SEAL, OSO-TYPE
93108-27006-00
Unavailable
37
CIRCLIP
99009-26400-00
Unavailable
38
SHAFT, DRIVE
(1J7-46172-01-00)
Unavailable
39
CLIP
90468-14067-00
Unavailable
40
SPRING, COMPRESSION
(90501-18442-00)
Unavailable
41
BALL JOINT
(99999-01453-00)
Unavailable
42
BOLT WASHER BASED (1J7)
90105-08066-00
Unavailable
43
CAP, BOLT (371,447)
341-23469-00-00
Unavailable
44
LABEL, OIL CAUTION
1J7-46181-11-00
Unavailable
45
O-RING
(93210-55349-00)
Unavailable
46
WASHER, PLATE
90201-27623-00
Unavailable
