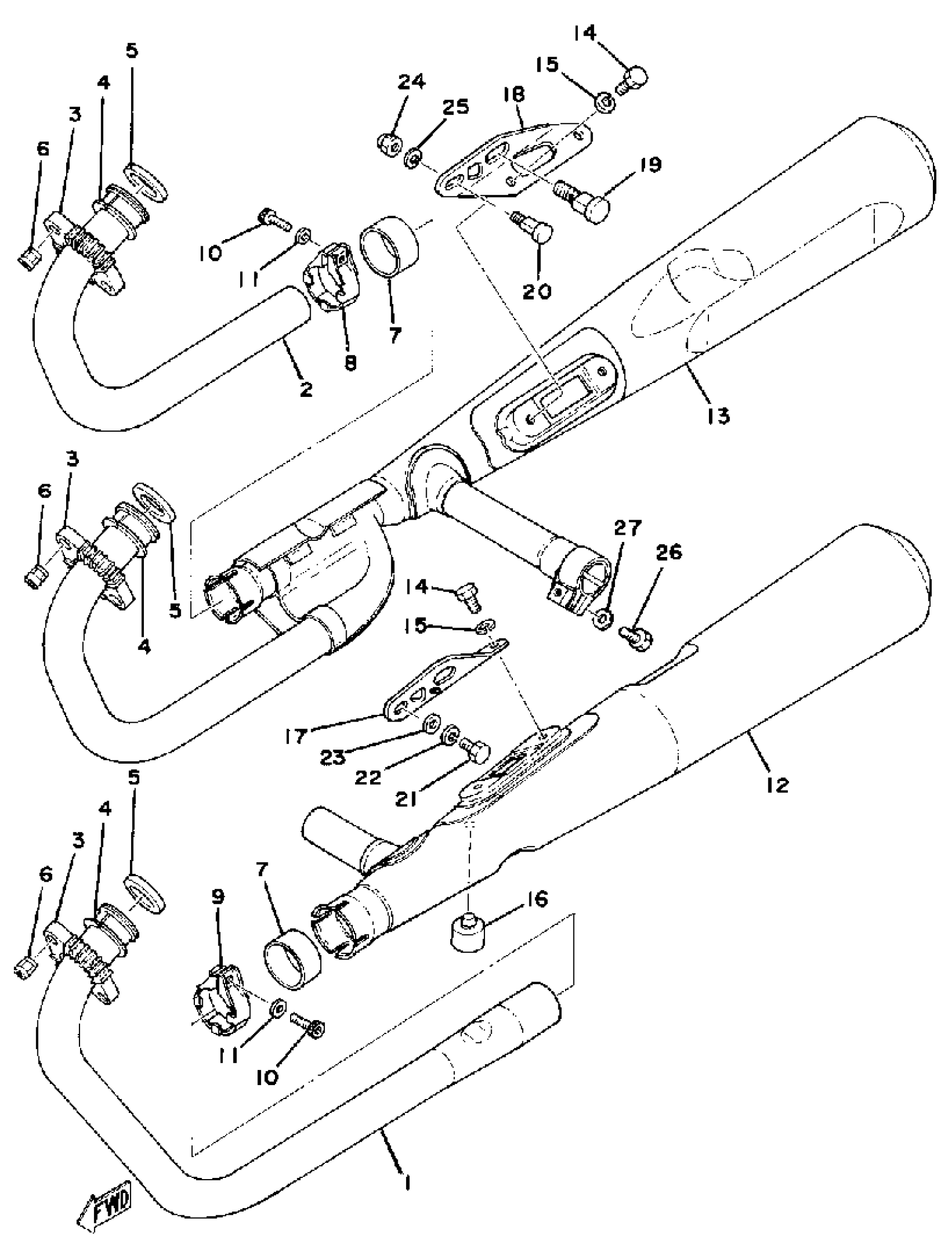

Yamaha XS750D (XS750) 1977 EXHAUST (XS750-2D) Diagram

#

Description
Price

1

PIPE, EXHAUST L

1T4-14611-01-00

Unavailable

2

PIPE, EXHAUST 3

1T4-14631-10-00

Unavailable

3

NUT, RING

(4H1-14612-00-00)

Unavailable

4

FLANGE, EXST PIPE

1J7-14614-00-00

Unavailable

5

GASKET, EXHAUST PIPE

4BE-14613-00-00

$9.99

6

NUT (371)

90179-08004-00

$9.49

7

GASKET, MUFF

1T4-14714-10-00

Unavailable

8

BAND, SILENCER

1T4-14788-00-00

Unavailable

9

BAND, SILENCER

1L9-14788-00-00

Unavailable

10

BOLT,SOCKET

91317-06025-00

$5.60

11

WASHER, PLAIN (646)

92990-06600-00

$2.80

12

MUFFLER L

1T5-14711-01-00

Unavailable

13

MUFFLER 2

1T5-14702-00-00

Unavailable

14

BOLT, HEXAGON

97013-08016-00

$1.01

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

17

BRACKET 2

(1T4-27442-00-00)

Unavailable

18

BRACKET 3

(1T4-27443-00-00)

Unavailable

19

BOLT

(1T4-27434-00-00)

Unavailable

20

BOLT

(1T4-27435-00-00)

Unavailable

21

BOLT, HEXAGON

97013-08020-00

Unavailable

22

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

NUT, CROWN

95303-08800-00

Unavailable

25

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

26

BOLT, HEXAGON

97017-08025-00

Unavailable

27

.. WASHER, PLATE

92990-08600-00

Unavailable
