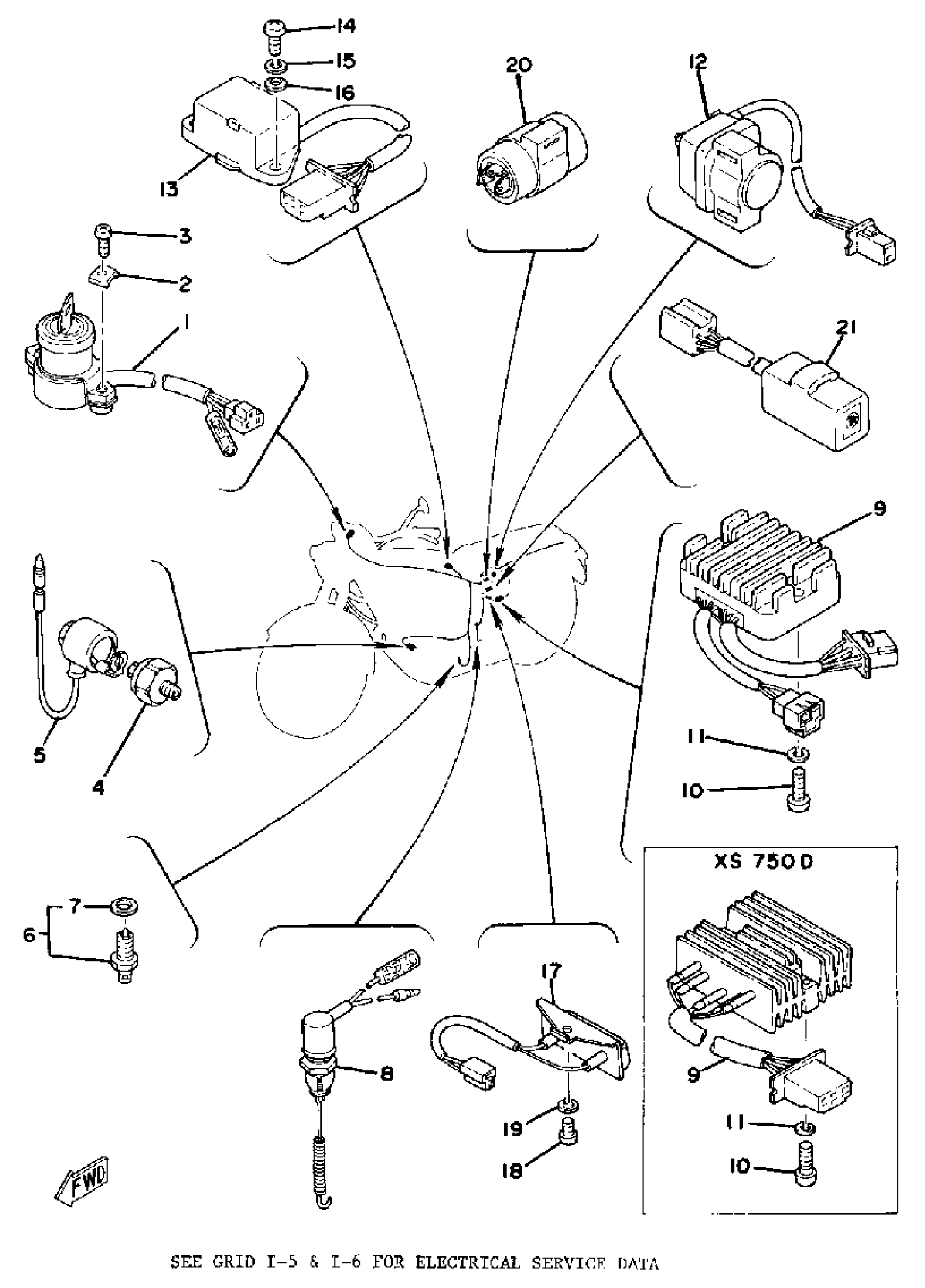

Yamaha XS750D (XS750) 1977 ELECTRICAL 2 Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

1J3-82508-50-00

Unavailable

1

MAIN SWITCH ASSEMBLY

584-82508-40-00

Unavailable

2

WASHER, SPECIAL

533-82517-00-00

Unavailable

3

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

4

OIL PRESSURE SWITCH ASSEMBLY

341-82504-02-00

Unavailable

5

WIRE, LEAD

(1J7-82507-00-00)

Unavailable

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET

296-82543-00-00

Unavailable

8

STOP SWITCH

1J7-82530-02-00

Unavailable

9

RECTIFIER/REG ASSEMBLY

1T4-81960-A0-00

Unavailable

10

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

11

WASHER, SPRING

92907-06100-00

$4.25

12

STARTER SWITCH ASSEMBLY

1J7-81940-10-00

Unavailable

13

RSRV LTNG UNIT ASSEMBLY

1J7-84308-00-00

Unavailable

14

SCREW PAN HEAD

98580-06020-00

$8.49

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

RESISTOR

1J7-81911-01-00

Unavailable

18

SCREW PAN HEAD

98580-06010-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

21

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

1H7-83395-02-00

Unavailable

22

RELAY ASSEMBLY

360-81950-10-00

Unavailable
