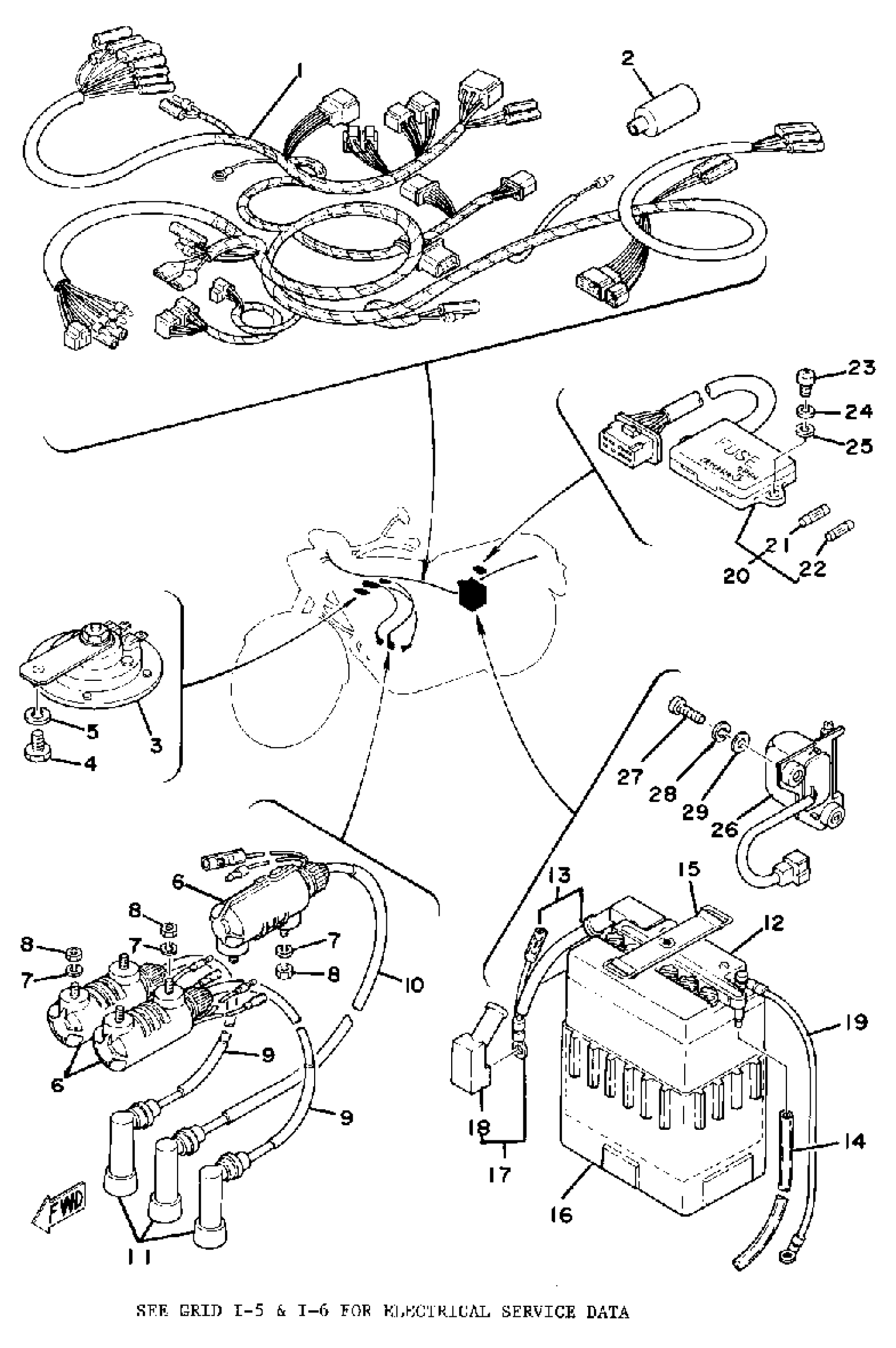

Yamaha XS750D (XS750) 1977 ELECTRICAL 1 Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

1J7-82590-51-00

Unavailable

1

WIRE HARNESS ASSEMBLY

(1J7-82590-61-00)

Unavailable

1

UNAVAILABLE IN PRICE BOOK

1T4-82590-50-00

Unavailable

1

WIRE HARNESS ASSEMBLY

(1T4-82590-60-00)

Unavailable

2

COVER, CONNECTER

(538-82599-10-00)

Unavailable

3

HORN

1J7-83371-22-00

Unavailable

4

BOLT, HEXAGON

97017-08016-00

$8.49

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

IGNITION COIL ASSEMBLY

371-82310-60-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT(650)

95380-06700-00

$8.49

9

CORD, HIGH TENSION 1

4X7-82341-00-00

$80.99

10

CORD, high tension 2

41R-82342-00-00

Unavailable

11

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

11

PLUG CAP ASSY

1J7-82370-00-00

Unavailable

12

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

13

LABEL, BATTERY

40A-82141-G0-00

Unavailable

14

HOSE

(90445-08337-00)

Unavailable

15

BAND,BATTERY

7H3-82131-00-00

Unavailable

16

SEAT, BATTERY

447-82122-00-00

Unavailable

17

WIRE, PLUS LEAD

1J7-82115-00-00

Unavailable

18

COVER, LEAD WIRE

(1J7-82119-00-00)

Unavailable

19

WIRE, MINUS LEAD

1J7-82116-00-00

Unavailable

20

FUSE BOX ASSEMBLY

1J7-82170-40-00

Unavailable

21

FUSE

1A0-82161-00-00

Unavailable

22

FUSE

1A0-82151-00-00

Unavailable

23

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

WASHER, PLAIN (646)

92990-05600-00

Unavailable

26

VOLTAGE REGULATOR ASSEMBLY

1L9-81910-50-00

Unavailable

27

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

28

WASHER, SPRING

92995-06100-00

Unavailable

29

WASHER, PLATE

90201-06M08-00

Unavailable
