CYLINDER HEAD - CYLINDER

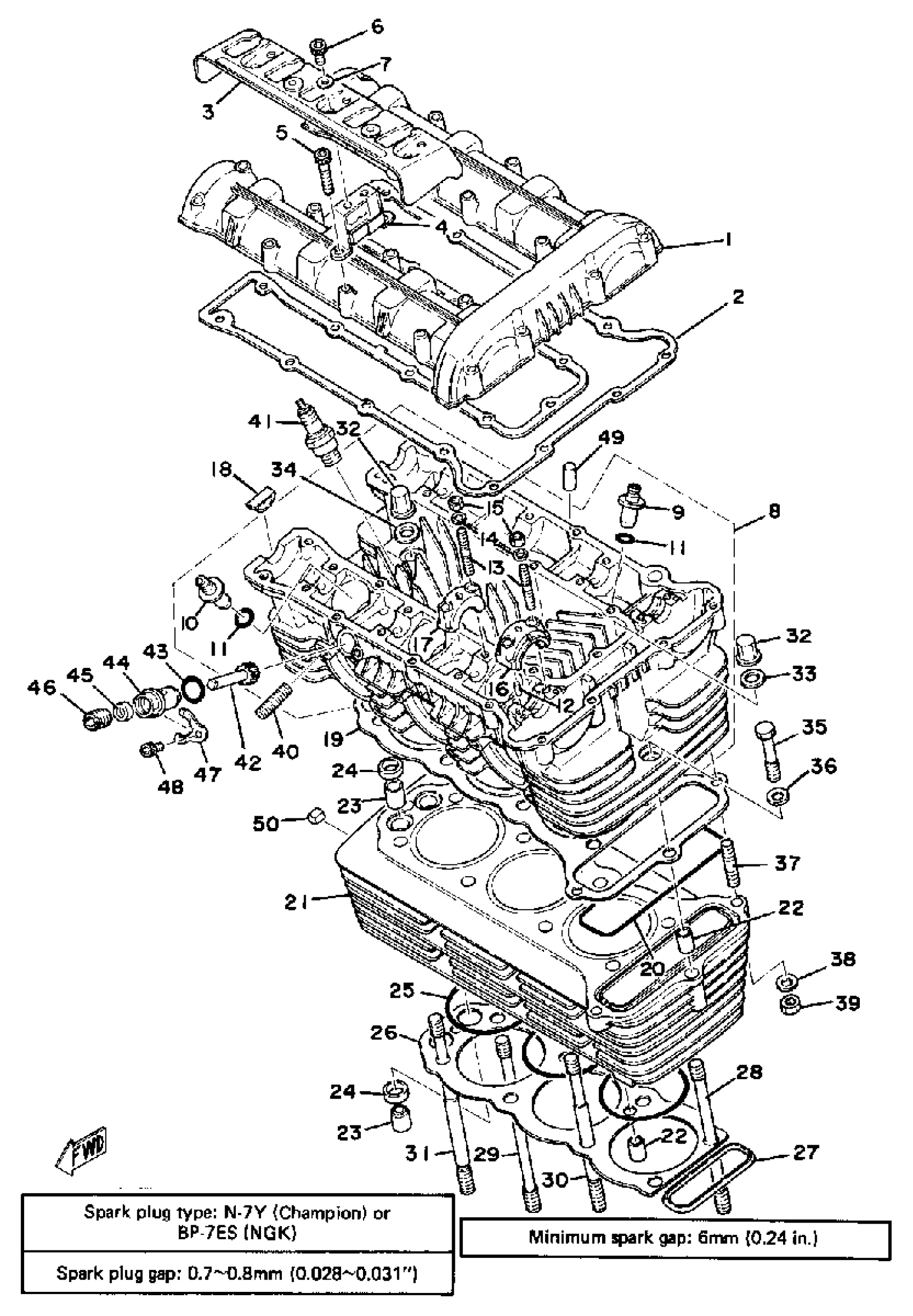

Yamaha XS750D (XS750) 1977 CYLINDER HEAD - CYLINDER Diagram
#
1
COVER, CYLINDER.HEAD 1
1J7-11191-00-00
Unavailable
2
GASKET, CYLINDER HEAD COVER
1J7-11193-10-00
Unavailable
3
COVER, CYLINDER.HEAD 2
1J7-11192-03-00
Unavailable
4
BRACKET, CAMSHAFT 1
1J7-11183-01-00
Unavailable
5
BOLT,SOCKET
91317-06035-00
Unavailable
8
. UNAVAILABLE IN PRICE BOOK
1J7-11110-01-00
Unavailable
8
. HOUSING, TACH GEAR
2F3-17811-00-00
Unavailable
8
CYLINDER HEAD ASSEMBLY
(99999-00943-00)
Unavailable
9
. GDE, INTK VLV 1 O/S
1J7-11133-10-00
Unavailable
10
. GDE, EXST VLV 1 O/S
1J7-11134-10-00
Unavailable
12
. PIN, DOWEL
93603-09004-00
Unavailable
13
BOLT, STUD (1J7)
90116-06228-00
Unavailable
14
WASHER, PLATE (371)
90201-06431-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
. CAP, CAMSHAFT 1
1J7-12173-10-00
Unavailable
17
. CAP, CAMSHAFT 2
1J7-12183-10-00
Unavailable
18
PLUG
1J7-11138-00-00
Unavailable
19
GASKET, CYL HEAD 1
2F3-11181-10-00
Unavailable
20
SEAL, CYLINDER 1
1J7-11355-00-00
Unavailable
21
CYLINDER
(1J7-11310-00-00)
Unavailable
22
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
23
PIN, DOWEL
99530-14016-00
Unavailable
24
SEAL, CYLINDER 3
1J7-11357-00-00
Unavailable
25
O-RING (1J7)
93210-74316-00
Unavailable
26
GASKET, CYLINDER
1J7-11351-12-00
Unavailable
27
SEAL, CYLINDER 2
1J7-11356-00-00
Unavailable
27
SEAL, CYLINDER 2
1J7-11356-00-00
Unavailable
28
BOLT, STUD
90116-10273-00
Unavailable
29
BOLT, STUD
(90116-10243-00)
Unavailable
30
BOLT, CYLINDER HOLDING 3
2F3-11363-00-00
Unavailable
31
BOLT, CYLINDER HOLDING 4
2F3-11364-00-00
Unavailable
32
NUT, CROWN(2GG)
90176-10075-00
Unavailable
33
WASHER, PLATE 3711117500
90201-10124-00
Unavailable
34
WASHER PLATE 256111740000
90201-10131-00
Unavailable
35
BOLT
97013-08045-00
Unavailable
36
WASHER, PLATE (33N)
90201-084G3-00
Unavailable
37
BOLT, STUD
90116-08161-00
Unavailable
38
WASHER, PLATE (33N)
90201-084G3-00
Unavailable
39
NUT(6L2)
95333-08600-00
Unavailable
40
BOLT, STUD(2GG)
95617-08620-00
Unavailable
41
BPR7ES NGK - 4/PACK
BPR-7ES00-40-00
Unavailable
42
GEAR, DRIVEN
1J7-17841-00-00
Unavailable
43
O-RING
93210-18318-00
Unavailable
44
HOUSING TACH GEAR
99999-01156-00
Unavailable
45
OIL SEAL (7X13X4-256)
93104-07036-00
Unavailable
46
ADAPTER
256-17848-00-00
Unavailable
47
STOPPER
1J7-17812-00-00
Unavailable
48
BOLT,SOCKET
91317-06012-00
Unavailable
49
PLUG, BLIND
16G-13569-00-00
Unavailable
50
ABSORBER
434-11161-00-00
Unavailable
