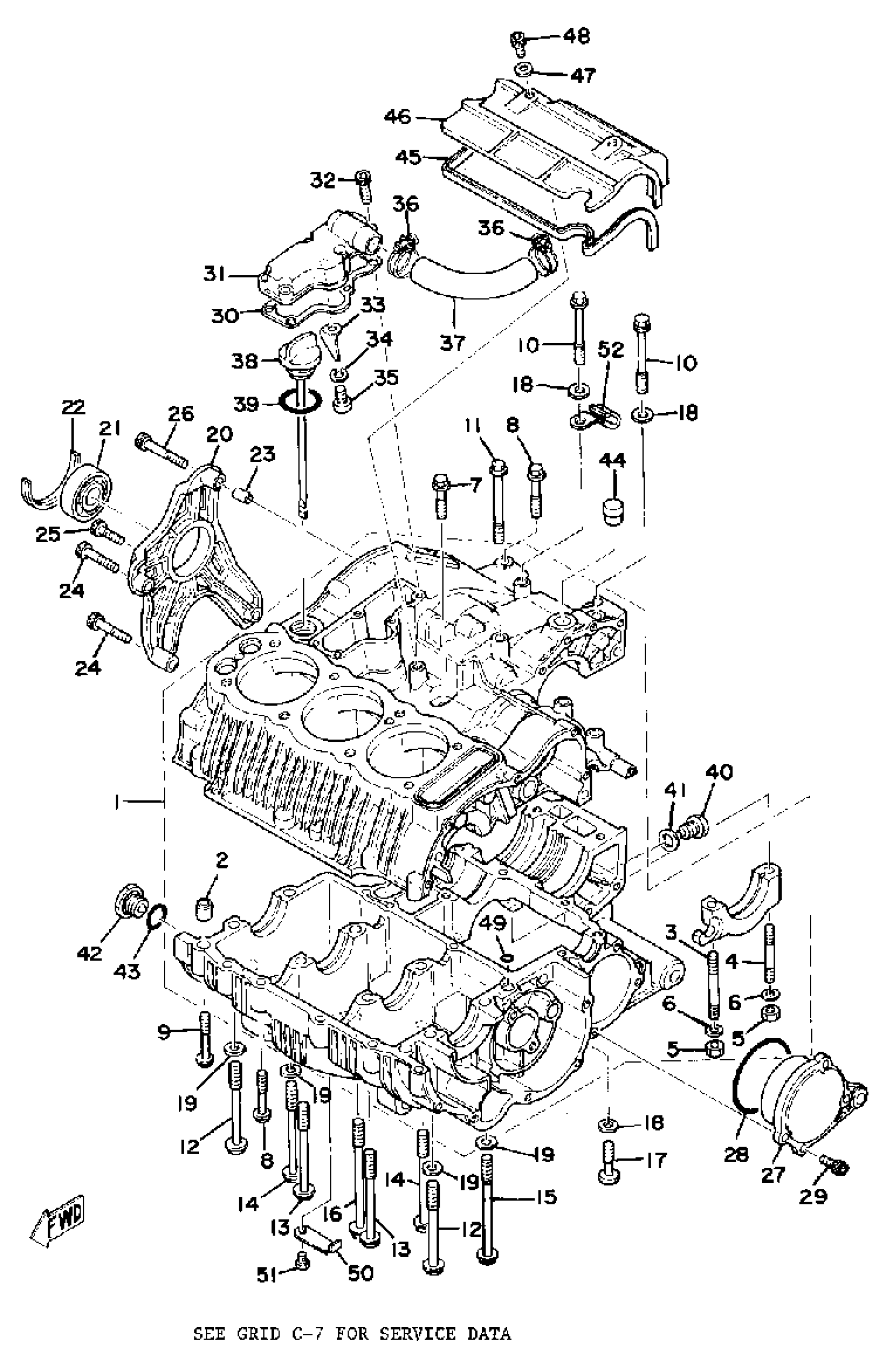

Yamaha XS750D (XS750) 1977 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(1J7-15100-01-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BOLT, STUD

(90116-08229-00)

Unavailable

4

. BOLT, STUD

90116-08230-00

Unavailable

5

NUT(6L2)

95333-08600-00

$2.49

6

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

7

BOLT, FLANGE

95817-08035-00

$9.49

8

BOLT, FLANGE

95814-08045-00

$4.29

9

BOLT, FLANGE

95817-08050-00

$2.44

10

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

10

BOLT, FLANGE

95817-08075-00

$4.82

11

BOLT, FLANGE(8BN)

95817-08085-00

$4.08

12

BOLT, FLANGE

95821-10095-00

Unavailable

13

BOLT, FLANGE(4MY)

95817-10100-00

$5.60

14

BOLT, FLANGE

(95821-10105-00)

Unavailable

15

BOLT, FLANGE

95821-10115-00

Unavailable

16

BOLT, FLANGE

(95821-10125-00)

Unavailable

17

BOLT

97014-08040-00

Unavailable

18

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

18

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

19

WASHER PLATE 341839090000

90201-10128-00

Unavailable

20

HOUSING, BEARING

(1J7-15442-01-00)

Unavailable

21

BRG,R-B 6304 52MM 144G NT

93306-30407-00

Unavailable

22

RING, RUBBER

2F3-15449-01-00

Unavailable

23

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

24

BOLT,SOCKET

91317-08040-00

Unavailable

25

BOLT, SOCKET

91317-08025-00

Unavailable

26

BOLT, SOCKET

91317-08050-00

Unavailable

27

HOUSING, BEARING 2

(2G2-15164-00-00)

Unavailable

27

WASHER, PLATE

(90201-31662-00)

Unavailable

27

CIRCLIP, R-TYPE

93420-65052-00

Unavailable

27

HOUSING BEARING 2

(99999-00944-00)

Unavailable

28

O-RING (5G2)

93210-71462-00

Unavailable

29

BOLT,SOCKET

91317-06020-00

Unavailable

30

GASKET,BRTHR COVER

1J7-11169-10-00

Unavailable

31

COVER, BREATHER

(1J7-11168-01-00)

Unavailable

32

BOLT,SOCKET

91317-06025-00

Unavailable

33

PLATE, BREATHER

(1J7-11165-00-00)

Unavailable

34

WASHER, SPRING

92995-06100-00

Unavailable

35

SCREW, PAN

98507-06014-00

Unavailable

36

CLAMP, HOSE

(90460-26089-00)

Unavailable

37

PIPE, BREATHER 1

(1J7-11166-00-00)

Unavailable

38

PLUG, OIL LEVEL

1T4-15362-00-00

Unavailable

39

O-RING (371)

93210-29198-00

Unavailable

40

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

41

GASKET

214-11198-01-00

Unavailable

42

BOLT, UNION

(90401-18042-00)

Unavailable

43

O-RING (1J7)

93210-18319-00

Unavailable

44

BREATHER COMP.

2H7-17590-00-00

Unavailable

45

GSKT, STRTG MTR CVR

1J7-15446-00-00

Unavailable

46

COVER, STRTG MOTOR

(1J7-15436-00-00)

Unavailable

47

WASHER(6TA)

92907-06200-00

Unavailable

48

BOLT,SOCKET

91317-06012-00

Unavailable

49

O-RING (1J7)

93210-09350-00

Unavailable

50

CLAMP

(90465-08112-00)

Unavailable

51

BOLT(3JP)

97017-06010-00

Unavailable

52

CLAMP

90465-08017-00

Unavailable
