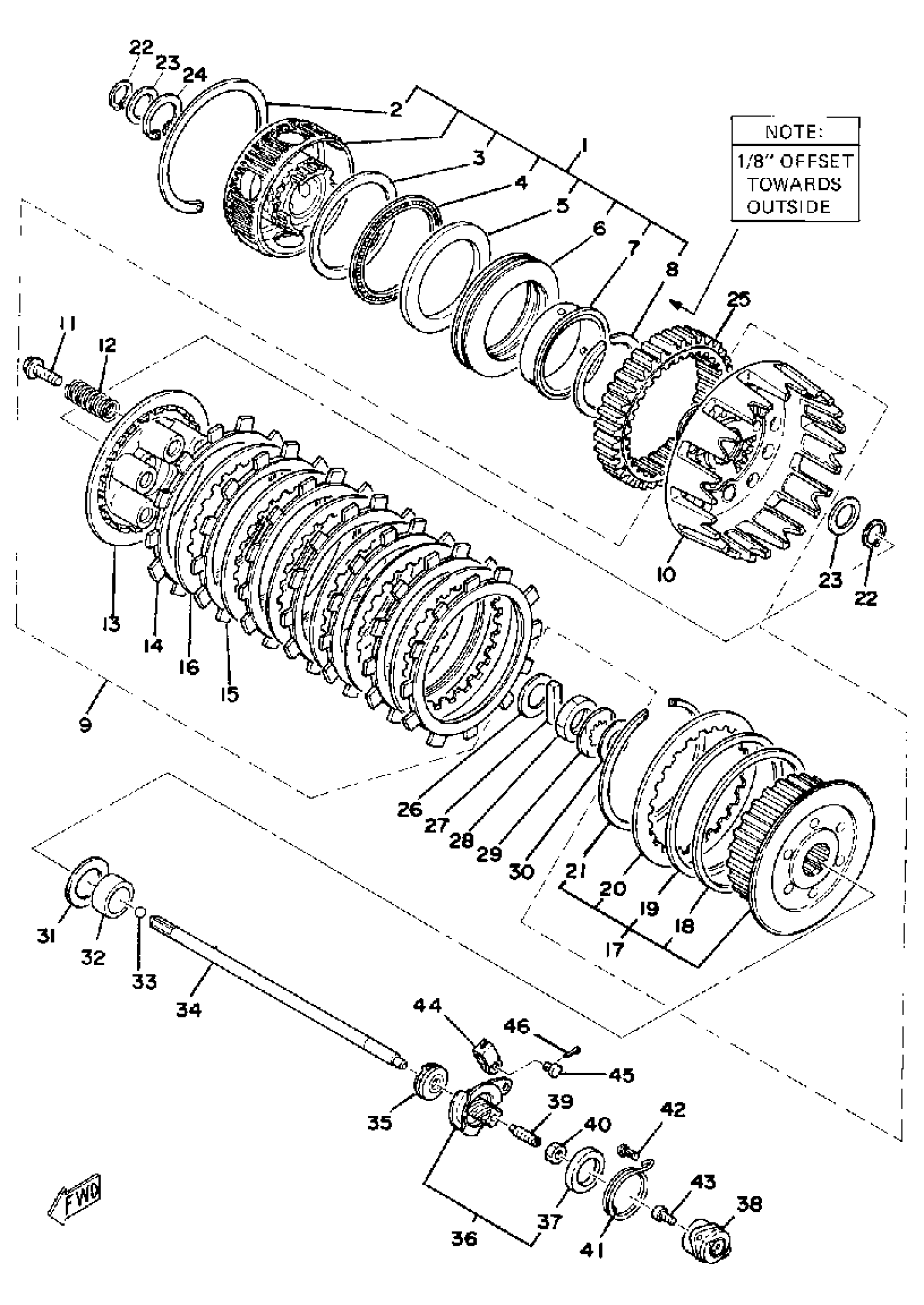

Yamaha XS750D (XS750) 1977 CLUTCH Diagram
#
1
CLUTCH DAMPER (1J7)
99999-01369-00
Unavailable
2
CIRCLIP
(93441-08048-00)
Unavailable
3
WASHER, PLATE
(90201-76604-00)
Unavailable
4
BEARING, FLAT #40
(93340-27601-00)
Unavailable
5
WASHER, PLATE
(90201-69603-00)
Unavailable
6
SPRING, DAMPER
(1J7-16318-00-00)
Unavailable
7
COLLAR
(90387-64545-00)
Unavailable
8
. CIRCLIP, OUTER
93440-64047-00
Unavailable
9
CLUTCH ASSEMBLY
(1J7-16301-00-00)
Unavailable
10
. CLUTCH HOUSING ASSEMBLY
1J7-16310-03-00
Unavailable
13
. PLATE, PRESSURE 1
1J7-16351-00-00
Unavailable
16
PLATE, CLUTCH 2
371-16325-10-00
Unavailable
17
CLUTCH BOSS ASSEMBLY
(1J7-16370-03-00)
Unavailable
18
PLATE, SEAT
1J7-16384-00-00
Unavailable
19
.. SPRING, CLUTCH BOSS
1J7-16383-01-00
Unavailable
20
PLATE, CLUTCH 2
168-16325-10-00
Unavailable
21
RING, CLUTCH BOSS
1J7-16385-00-00
Unavailable
22
CIRCLIP(1AR)
99009-20400-00
Unavailable
23
WASHER, PLATE
90201-21599-00
Unavailable
24
CIRCLIP, OUTER
93440-30050-00
Unavailable
25
GEAR, PRI DRIVEN
(1J7-16151-00-00)
Unavailable
26
WASHER, PLATE
90201-22625-00
Unavailable
27
ROD, PUSH 1
1J7-16356-01-00
Unavailable
28
NUT, HEXAGON
90170-24203-00
Unavailable
29
WASHER, LOCK
90215-21130-00
Unavailable
30
WASHER, CONICAL SPR
90208-25021-00
Unavailable
31
WASHER, PLATE
90201-25345-00
Unavailable
32
SPACER
(90560-25160-00)
Unavailable
33
BALL
93505-16006-00
Unavailable
34
ROD, PUSH 2
1J7-16357-01-00
Unavailable
35
OIL SEAL, SD-TYPE
93102-08205-00
Unavailable
36
PUSH LEVER ASSEMBLY
1J7-16340-01-00
Unavailable
37
SEAL, DUST
214-16347-01-00
Unavailable
38
BALL SCRW HSNG ASSEMBLY (256-16343-01)
1J7-16304-00-00
Unavailable
39
BOLT SET 256163430100
90113-08021-00
Unavailable
40
NUT
90179-08179-00
Unavailable
41
SPRING, TORSION
90508-18313-00
Unavailable
42
HOOK, SPRING
132-16346-00-00
Unavailable
43
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
44
JOINT
214-16389-00-00
Unavailable
45
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
46
. PIN, COTTER
91401-10015-00
Unavailable
