- XS750D (XS750) 1977
CARBURETOR

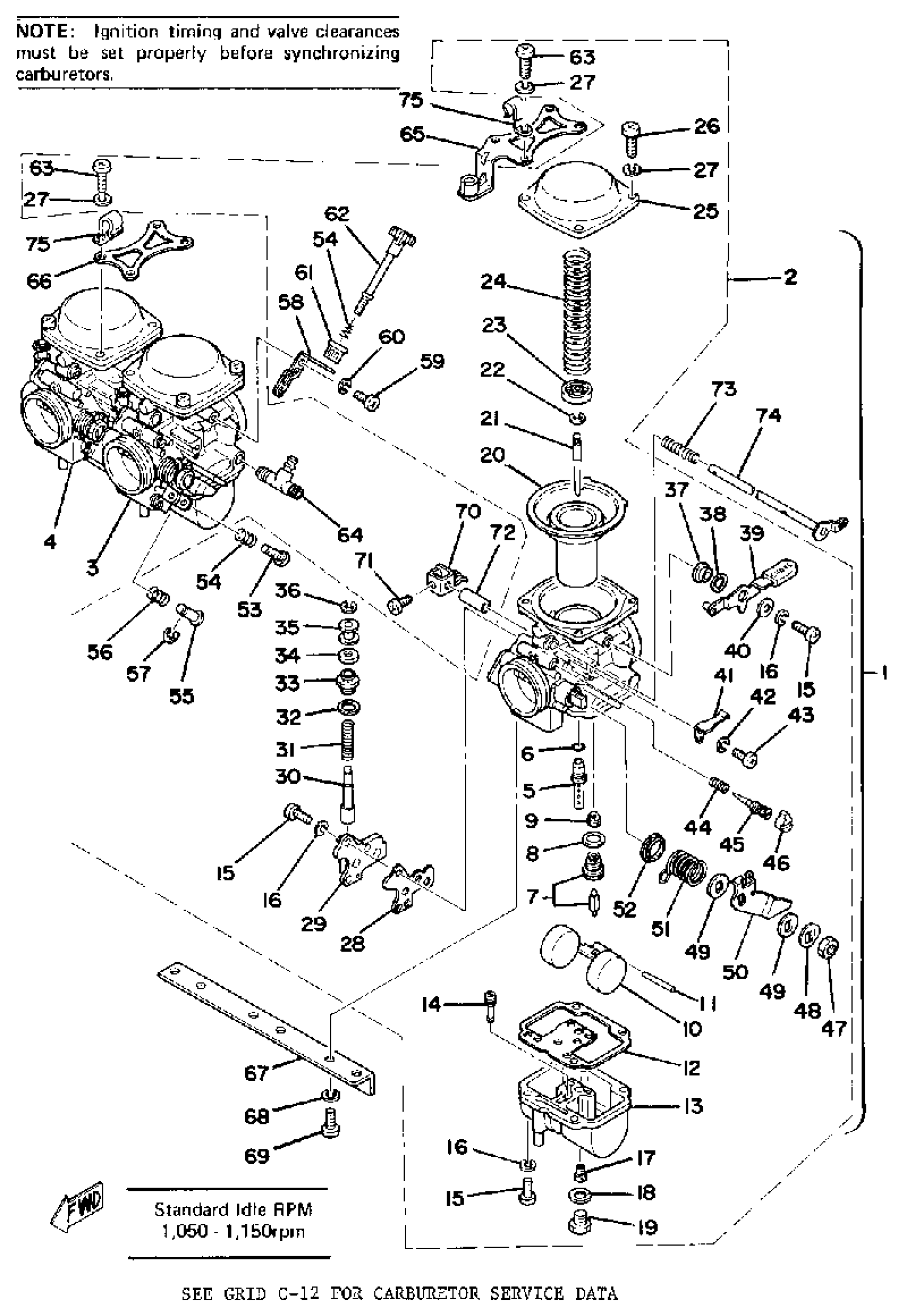

Yamaha XS750D (XS750) 1977 CARBURETOR Diagram
#
2
CARBURETOR ASSEMBLY 1
(1J7-14901-01-00)
Unavailable
3
CARBURETOR ASSEMBLY 2
(1J7-14902-01-00)
Unavailable
4
CARBURETOR ASSEMBLY 3
(1J7-14903-01-00)
Unavailable
5
.. NOZZLE, MAIN
341-14941-92-00
Unavailable
8
WASHER,VALVE SEAT
239-14195-00-00
Unavailable
10
.. FLOAT
1J7-14985-01-00
Unavailable
13
BODY, FLOAT CHAMBER
(1J7-14981-05-00)
Unavailable
13
BODY, FLOAT CHAMBER
(1J7-14981-09-00)
Unavailable
14
.. JET, PILOT #175
584-14142-17-A0
Unavailable
15
SCREW, PAN HEAD
98511-04012-00
Unavailable
16
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
17
JET, MAIN (#140)
3G2-14231-28-00
Unavailable
17
JET, MAIN (#145)
3G2-14231-29-00
Unavailable
17
JET, MAIN (#150)
3G2-14231-30-A0
Unavailable
18
WASHER
256-14956-01-00
Unavailable
19
.. SCREW, PLUG
256-14991-00-00
Unavailable
20
.. DIAPHRAGM ASSEMBLY
1J7-14940-00-00
Unavailable
21
.. NEEDLE
1J7-14116-11-00
Unavailable
22
CLIP
256-14919-00-00
Unavailable
23
PLATE, NEEDLE FTNG
(1J7-14946-00-00)
Unavailable
24
SPRING, DIAPHRAGM
(1J7-14933-00-00)
Unavailable
25
COVER, DIAPHRAGM
(1J7-14958-00-00)
Unavailable
26
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
27
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
28
.. GASKET, STARTER
1J7-14979-00-00
Unavailable
29
.. BODY, STARTER
1J7-14907-01-00
Unavailable
30
PLUNGER, STARTER
(1J7-14171-00-00)
Unavailable
31
. SPRING, PLUNGER
256-14135-00-00
Unavailable
32
WASHER
256-14954-00-00
Unavailable
33
.. CAP, PLUNGER
584-14176-00-00
Unavailable
34
.. COVER, PLUNGER CAP
306-14173-00-00
Unavailable
35
. BUSH
737-14241-00-00
Unavailable
36
. CLIP
737-14137-00-00
Unavailable
37
.. RING
1L9-14918-00-00
Unavailable
38
.. WASHER, STARTER LEVER
584-14955-00-00
Unavailable
39
.. LEVER, STARTER
1J7-14905-00-00
Unavailable
40
WASHER
4CW-14962-00-00
Unavailable
41
.. SPRING
584-14938-00-00
Unavailable
42
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
43
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
44
SPRING, AIR ADJUSTING
127-14134-00-00
Unavailable
45
.. SCREW, PILOT
1J7-14923-00-00
Unavailable
46
.. CAP, PILOT SCREW
584-14969-00-00
Unavailable
47
NUT(3DM)
95304-12600-00
Unavailable
48
.. WASHER
256-14953-00-00
Unavailable
49
VALVE, THROTTLE
(306-14970-00-00)
Unavailable
50
LEVER, THROTTLE
(1J7-14913-00-00)
Unavailable
50
LEVER, THROTTLE 4
(1J7-14963-00-00)
Unavailable
50
LEVER, THROTTLE 2
(1J7-14964-00-00)
Unavailable
51
JET, STARTER
(306-14961-00-00)
Unavailable
52
WASHER
(1J7-14954-00-00)
Unavailable
53
.. SCREW, THROTTLE STOP
256-14922-01-00
Unavailable
54
.. SPRING, THROTTLE STOP
256-14934-01-00
Unavailable
55
. ROD, PUSH
584-14992-00-00
Unavailable
56
SPRING, THROTTLE STOP
(584-14934-00-00)
Unavailable
57
CLIP
(584-14937-00-00)
Unavailable
58
BRACKET
(1J7-14995-00-00)
Unavailable
59
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
60
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
61
.. BUSH
1J7-14998-00-00
Unavailable
62
SCREW, THROTTLE
(1J7-14922-00-00)
Unavailable
63
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
64
NIPPLE, CARBURETOR JOINT
1J7-14988-00-00
Unavailable
65
BRACKET, THROTTLE 1
(1J7-14926-00-00)
Unavailable
66
PLATE
(1J7-14243-00-00)
Unavailable
67
PLATE
(1J7-14146-00-00)
Unavailable
68
WASHER, SPRING
92995-06100-00
Unavailable
69
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
70
LEVER, STARTER
(1J7-14986-00-00)
Unavailable
71
. SCREW, STARTER LEVER 2
584-14991-00-00
Unavailable
72
PIPE
(1J7-14996-01-00)
Unavailable
73
SPRING
(1J7-14938-00-00)
Unavailable
74
SHAFT, STARTER LVR
(1J7-14977-01-00)
Unavailable
75
. CLAMP
90462-13032-00
Unavailable
