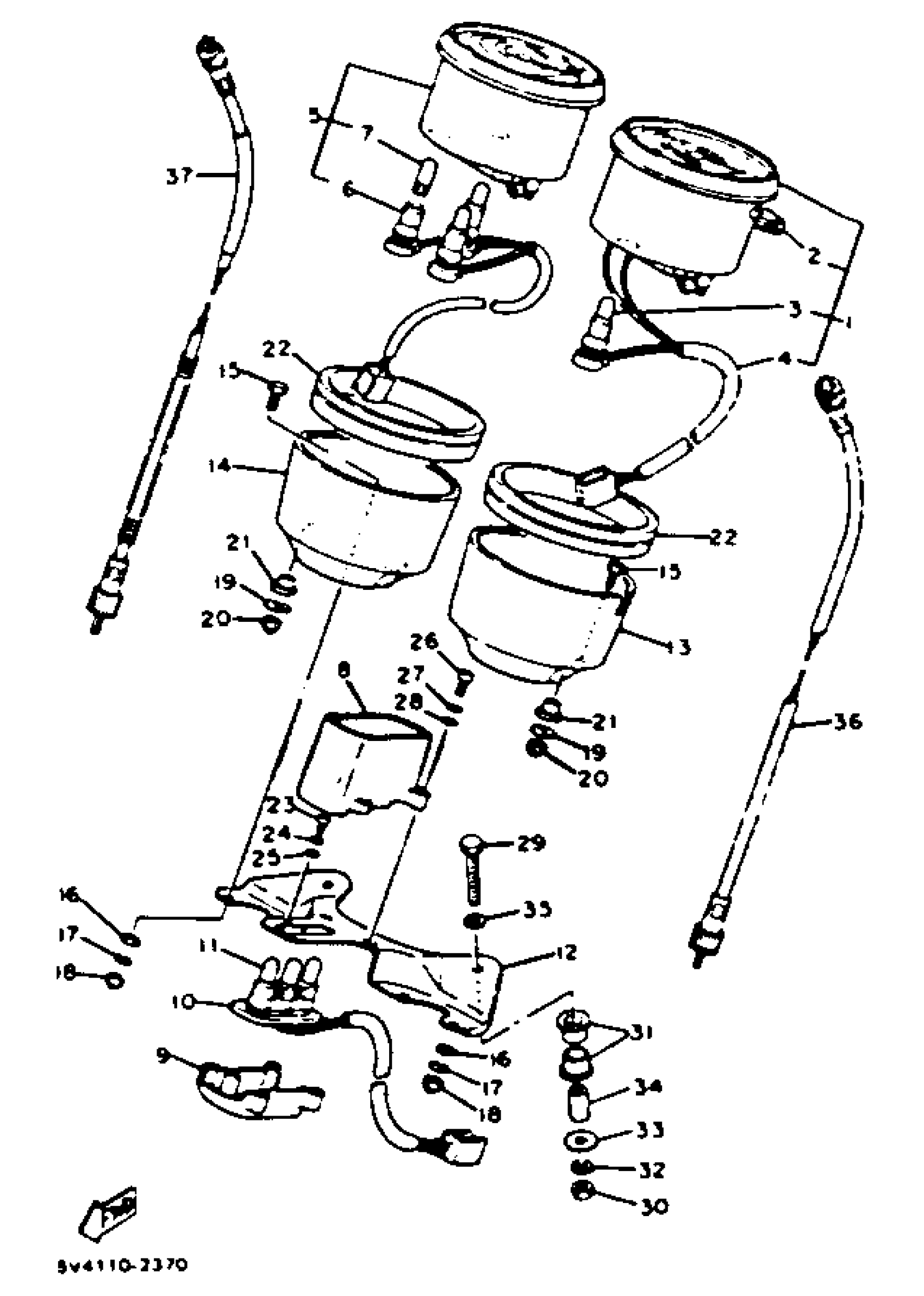

Yamaha XS650SK (XS650S) 1983 SPEEDOMETER TACHOMETER Diagram

#

Description

Price

1

SPEEDOMETER ASSY

5H1-83570-A0-00

Unavailable

2

KNOB, TRIP METER

4SV-83578-00-00

$18.49

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

4

. SOCKET CORD ASSY

10M-83520-20-00

Unavailable

5

TACHOMETER ASSEMBLY

3X4-83540-00-00

Unavailable

6

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

Unavailable

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

8

PILOT BOX, UPPER

3G1-83568-A0-00

Unavailable

9

PILOT BOX, LOWER

2G2-83569-A0-00

Unavailable

10

SOCKET CORD ASSEMBLY

3G1-83509-01-00

Unavailable

11

BULB, MTR.12V3.4W

4G1-84744-00-XX

Unavailable

12

BRACKET, METER

2M0-83519-00-00

Unavailable

13

COVER, SPEEDOMETER

2J2-83507-00-00

$55.99

14

COVER, TACHOMETER

2J2-83508-00-00

$50.99

15

BOLT

584-83546-00-00

$5.49

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT (J17)

95380-06800-00

Unavailable

19

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

20

NUT (CROWN)

95303-05800-00

Unavailable

21

DAMPER, METER COVER FITTING

584-83523-00-00

Unavailable

22

DAMPER

3H3-83513-00-00

Unavailable

23

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

24

WASHER, SPRING

92990-03100-00

Unavailable

25

WASHER, PLAIN (646)

92990-04600-00

Unavailable

26

SCREW, PAN HEAD

98517-04012-00

Unavailable

27

WASHER(6TA)

92907-04100-00

Unavailable

28

WASHER(JF2)

92907-04600-00

Unavailable

29

BOLT(8BC)

97017-06040-00

Unavailable

30

NUT, HEXAGON

95380-06600-00

Unavailable

31

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable

33

WASHER, PLATE

90201-06380-00

Unavailable

34

COLLAR (877)

90387-06249-00

Unavailable

35

WASHER(6TA)

92907-06600-00

Unavailable

36

SPEEDOMETER CABLE ASSY

16M-83550-01-00

Unavailable

37

TACHOMETER CABLE

447-83560-01-00

Unavailable
