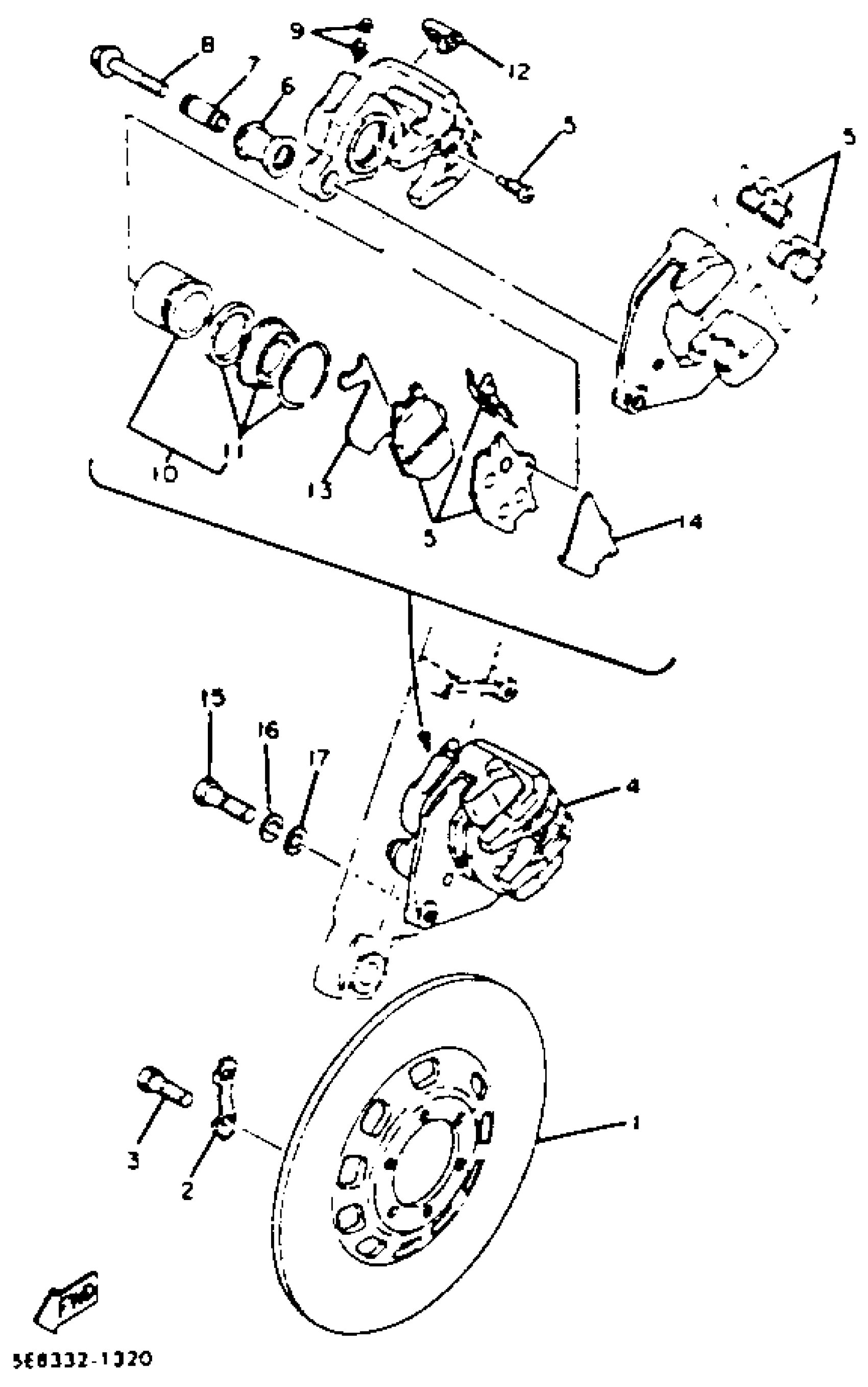

Yamaha XS650SK (XS650S) 1983 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

(1J3-25831-00-00)

Unavailable

2

WASHER, LOCK

3H5-25834-00-00

Unavailable

3

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

4

CALIPER ASSEMBLY RH

3H5-25810-02-00

Unavailable

5

BRAKE PAD KIT

4K0-W0045-02-00

$56.99

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

PISTON SEAL KIT

1J3-W0057-00-00

Unavailable

11

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

12

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

13

. SHIM, CALIPER

3H5-25827-00-00

Unavailable

14

. SHIM, CALIPER

3H5-25828-00-00

Unavailable

15

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

16

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

17

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable
