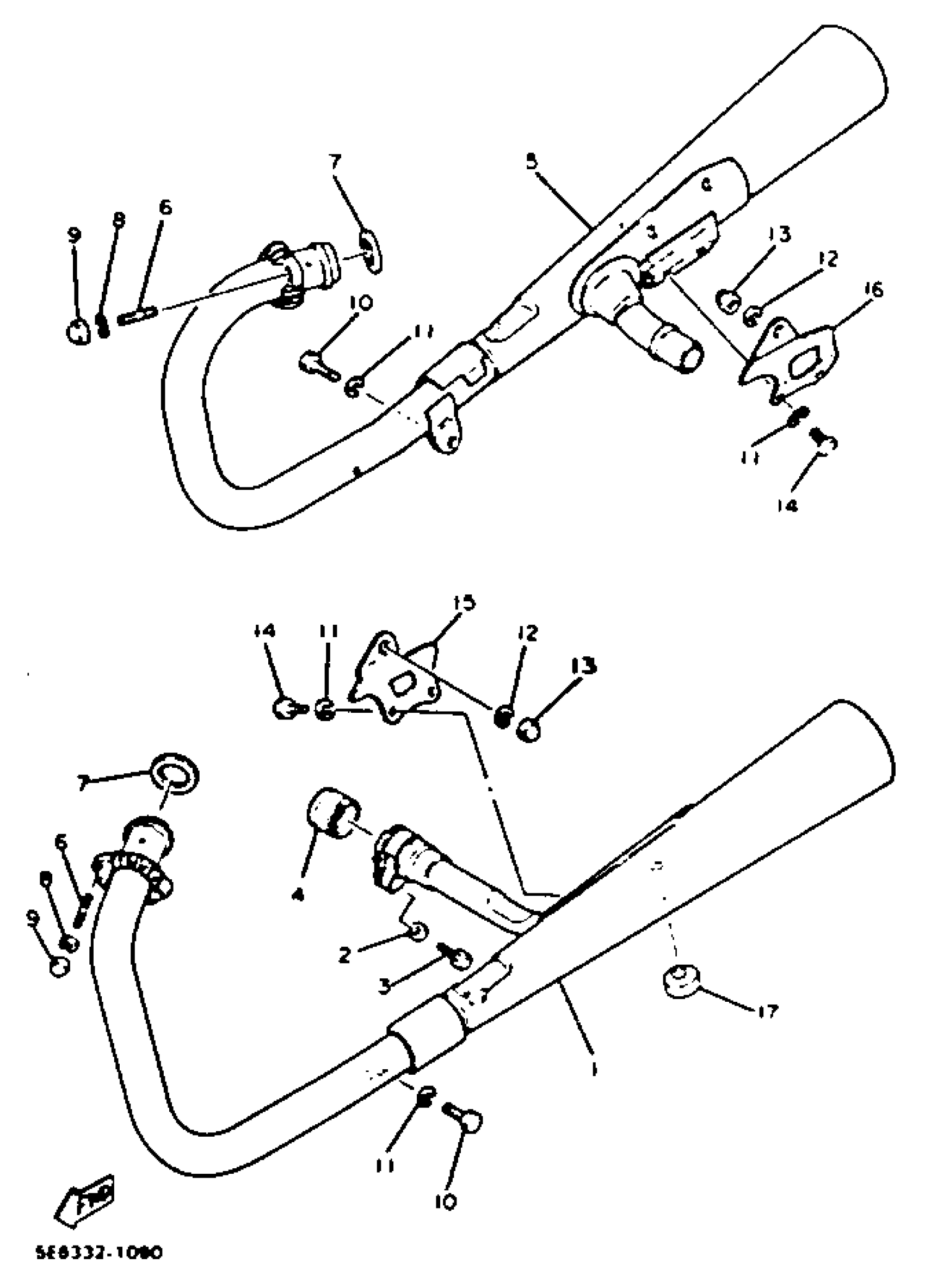

Yamaha XS650SK (XS650S) 1983 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSEMBLY L

3U6-14710-01-00

Unavailable

2

.. WASHER, PLATE

92990-08600-00

Unavailable

3

BOLT, SOCKET

91317-08025-00

$8.49

4

GASKET, MUFFLER

3YF-14714-00-00

$36.99

5

MUFFLER ASSEMBLY R

3U6-14720-01-00

Unavailable

6

BOLT, STUD

90116-10195-00

Unavailable

7

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

NUT, CROWN (650)

95380-10800-00

Unavailable

10

BOLT,HEXAGON (447)

90105-10058-00

$10.49

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

13

NUT CROWN(663)

95380-12800-00

Unavailable

14

BOLT,HEXAGON

97017-10016-00

Unavailable

15

STAY, MUFFLER 1

(5V4-14771-00-00)

Unavailable

16

STAY, MUFFLER 2

(5V4-14781-00-00)

Unavailable

17

STOPPER, MAIN STAND

371-27114-00-00

Unavailable
