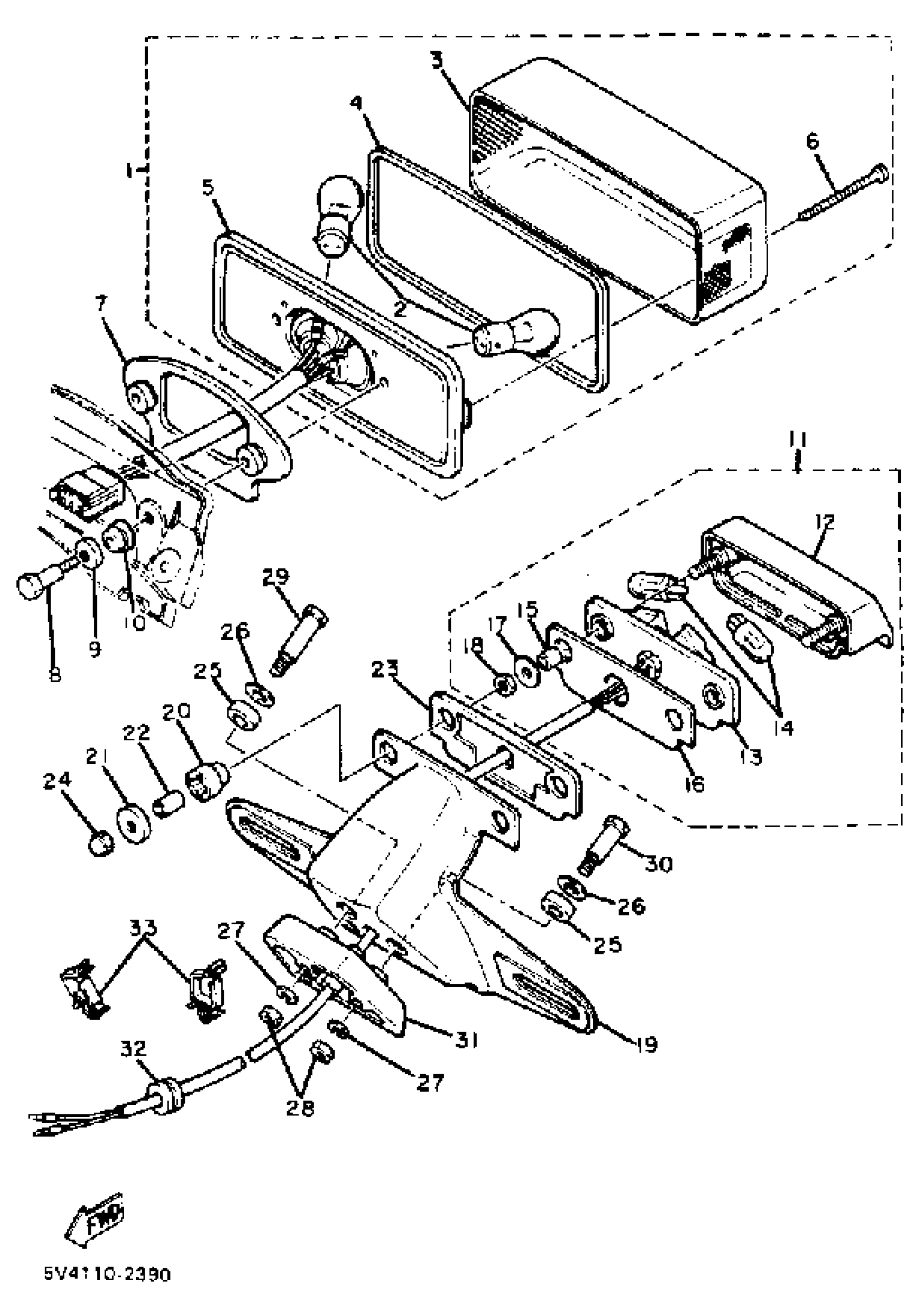

Yamaha XS650SJ (XS650S) 1982 TAILLIGHT Diagram

#

Description
Price

1

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$11.99

3

. LENS, TAILLIGHT

1A8-84721-61-00

Unavailable

4

. GASKET, TAIL LENS

1A0-84723-60-00

Unavailable

5

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

Unavailable

6

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

7

SEAT, BASE

3G1-84712-00-00

Unavailable

8

SCREW

3G1-84726-00-00

Unavailable

9

WASHER, SPECIAL

2H7-84754-00-00

$10.99

10

GROMMET

90480-16113-00

Unavailable

11

LICENCE LIGHT UNIT ASSY

4GY-84745-01-00

Unavailable

12

LICENCE LIGHT UNIT ASSY

4GY-84745-01-00

Unavailable

13

. BASE, LICENSE LIGHT

3F9-84741-00-00

Unavailable

14

. BULB, METER 12V 38W

3F9-84744-00-XX

Unavailable

15

COLLAR, LCNSE BRKT

(3J2-84757-00-00)

Unavailable

16

WASHER

(3J2-84772-00-00)

Unavailable

17

WASHER, SPECIAL

3J2-84754-00-00

Unavailable

18

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

19

BRACKET, LICENSE

14V-84751-00-33

Unavailable

20

DAMPER

3F9-84553-00-00

Unavailable

21

WASHER, SPECIAL

3F9-84754-00-00

Unavailable

22

COLLAR(53Y)

90387-066H9-00

Unavailable

23

SEAT, BASE

3F9-84742-00-00

Unavailable

24

NUT, CAP

95307-05800-00

Unavailable

25

DAMPER

3G1-84753-60-00

Unavailable

26

WASHER, PLAIN

92990-08200-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

BOLT

3G1-84761-00-00

Unavailable

30

BOLT

90109-06655-00

Unavailable

31

DAMPER

3G1-84753-00-00

Unavailable

32

GROMMET (438)

90480-15061-00

Unavailable

33

CLAMP (1J7)

90464-16021-00

Unavailable
