1982 Yamaha XS650S (XS650SJ) Speedometer Tachometer Diagram

← All diagrams

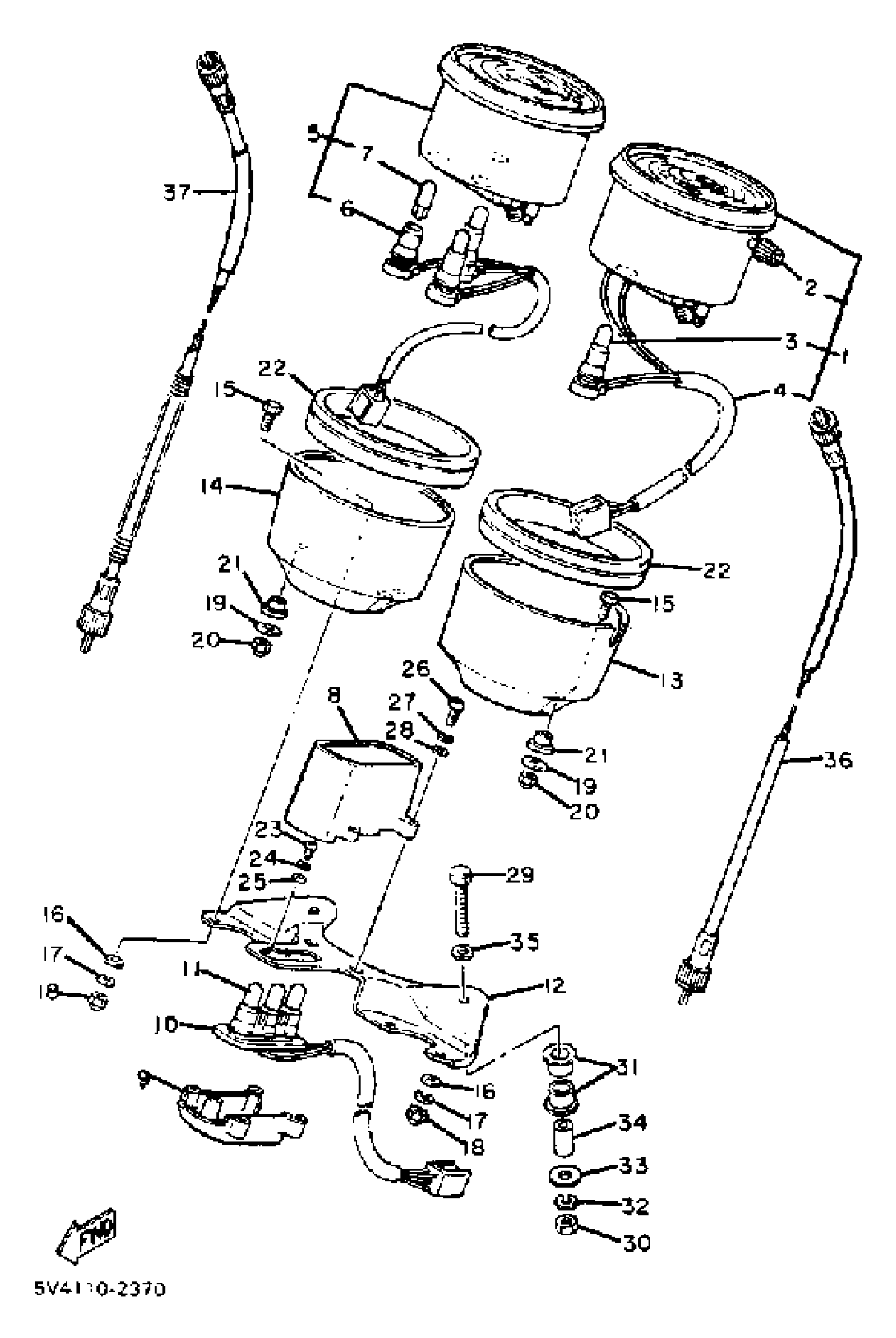

Find the part on the Speedometer Tachometer diagram for your 1982 Yamaha XS650S (XS650SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS650S (XS650SJ) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

2

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

5

TACHOMETER ASSEMBLY

3X4-83540-00-00

1
Out of stock

6

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

PILOT BOX, UPPER

3G1-83568-A0-00

1
Out of stock

9

PILOT BOX, LOWER

2G2-83569-A0-00

1
Out of stock

10

SOCKET CORD ASSEMBLY

3G1-83509-01-00

1
Out of stock

11

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

12

BRACKET, METER

2M0-83519-00-00

1
Out of stock

13

COVER, SPEEDOMETER

4H1-83507-00-00

1
Out of stock

14

COVER, TACHOMETER

4H1-83508-00-00

1
Out of stock

15

BOLT

584-83546-00-00

1
Out of stock

16

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

17

WASHER, SPRING

92907-06100-00

—
Out of stock

18

NUT(4MY)

95307-06800-00

—

$2.86

In stock

19

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

20

NUT, CAP

95307-05800-00

—

$5.62

In stock

21

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

22

DAMPER

3H3-83513-00-00

—
Out of stock

23

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

24

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

25

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

26

SCREW, PAN HEAD

98517-04012-00

—

$3.28

In stock

27

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

28

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

29

BOLT(8BC)

97017-06040-00

—
Out of stock

30

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

31

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

33

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

34

COLLAR (877)

90387-06249-00

—
Out of stock

35

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

36

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

37

TACHOMETER CABLE

447-83560-01-00

1
Out of stock
