1982 Yamaha XS650S (XS650SJ) Electrical 2 Diagram

← All diagrams

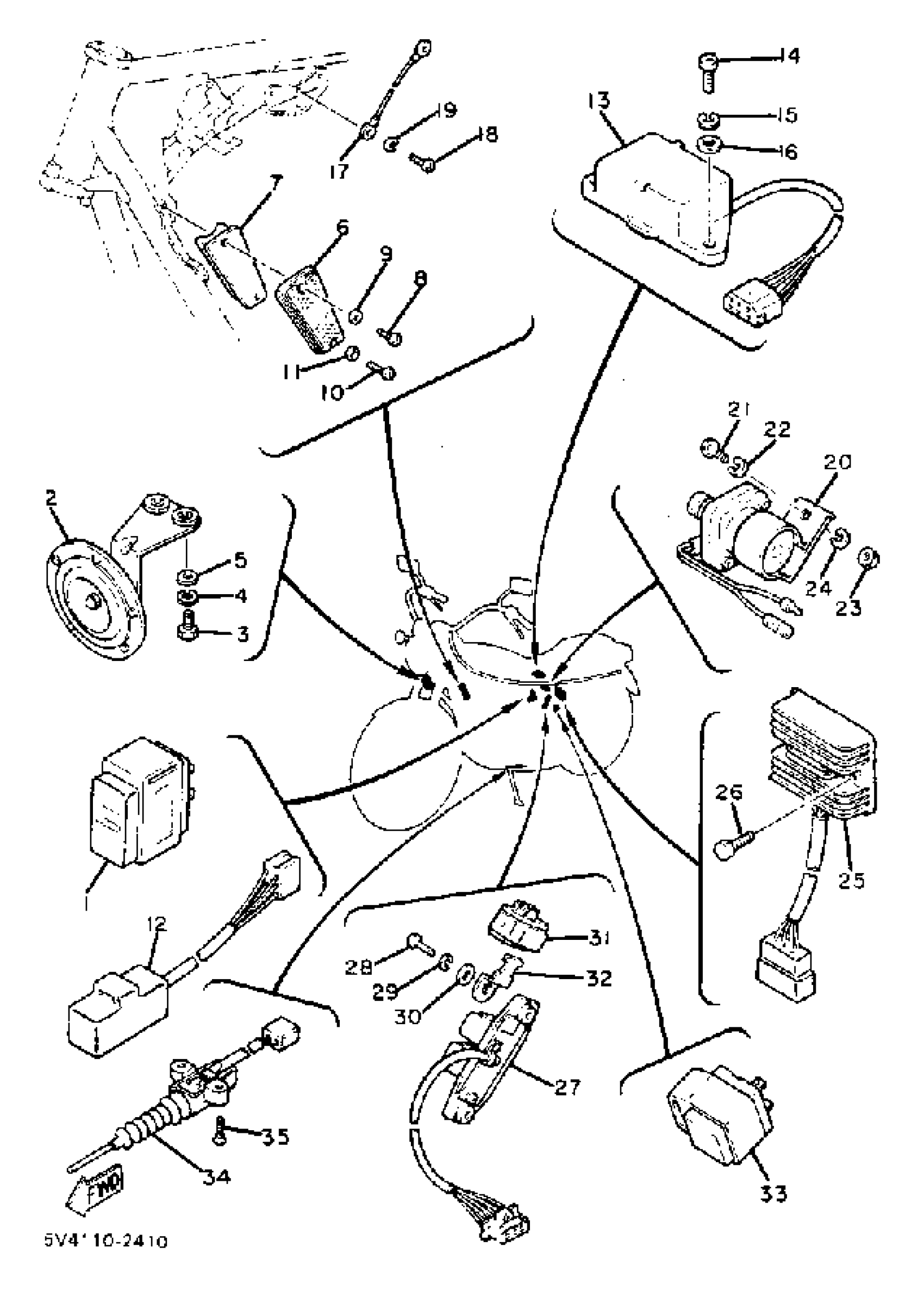

Find the part on the Electrical 2 diagram for your 1982 Yamaha XS650S (XS650SJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XS650S (XS650SJ) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FLASHER RELAY ASSEMBLY

3G1-83350-70-00

1
Out of stock

2

HORN

2M0-83371-51-00

1
Out of stock

3

BOLT, HEXAGON

97017-08025-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

5

WASHER, PLATE (4W3)

90201-086A3-00

1
Out of stock

6

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

1
Out of stock

7

BASE, REFLECTOR

3G1-85127-00-00

1
Out of stock

8

SCREW, PAN HEAD(GA5)

98580-04014-00

1
Out of stock

9

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

10

SCREW, PAN HEAD(GA5)

98580-04014-00

1
Out of stock

11

WASHER, PLAIN (646)

92990-04600-00

1
Out of stock

12

FLASHER CANCELING UNIT

1A0-83395-03-00

1
Out of stock

13

RSRV LIGHTING UNIT ASSEMBLY

1T3-84308-00-00

1
Out of stock

14

SCREW, PAN HEAD(6E5)

97880-06018-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1
Out of stock

16

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

17

WIRE, LEAD

256-81615-00-00

1
Out of stock

18

SCREW, PAN HEAD(6A3)

97885-06008-00

1
Out of stock

19

WASHER, SPRING

92995-06100-00

1
Out of stock

20

STARTER SWITCH ASSEMBLY

447-81940-10-00

1
Out of stock

21

SCREW, PAN

98507-06014-00

—
Out of stock

22

WASHER, SPRING

92995-06100-00

1
Out of stock

23

NUT(650)

95380-06700-00

—
Out of stock

24

WASHER, SPRING

92995-06100-00

1
Out of stock

25

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

1
Out of stock

26

BOLT

(90109-06558-00)

1
Out of stock

27

RELAY ASSEMBLY

2F0-81950-50-00

1
Out of stock

28

SCREW, PAN HEAD(6E0)

97885-06030-00

1
Out of stock

29

WASHER, SPRING

92995-06100-00

1
Out of stock

30

WASHER, PLATE

90201-06M08-00

1
Out of stock

31

RELAY ASSY

12R-81950-02-00

—
Out of stock

32

STAY, RELAY

4M4-81953-00-00

1
Out of stock

33

RELAY ASSY

4U8-81950-03-00

—
Out of stock

34

SWITCH, SIDE STAND

5V4-82566-01-00

1
Out of stock

35

SCREW, FLAT

98707-05014-00

—
Out of stock
