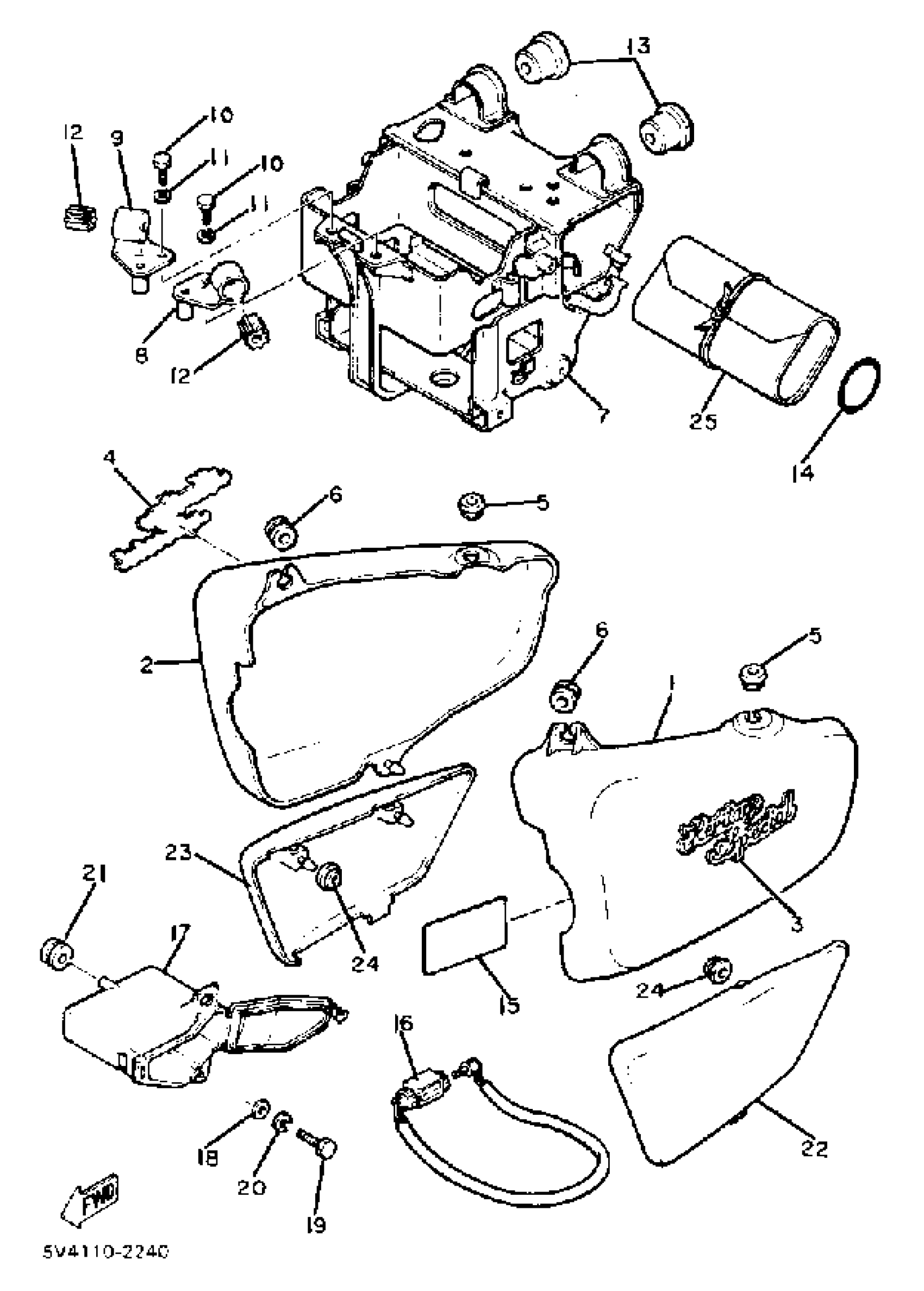

Yamaha XS650SJ (XS650S) 1982 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1

4N9-21711-00-6G

Unavailable

2

COVER, SIDE 2

4N9-21721-00-6G

Unavailable

3

EMBLEM 1

5V4-21781-00-00

Unavailable

4

EMBLEM 2

5V4-21782-00-00

Unavailable

5

GROMMET(41Y)

90480-01401-00

$8.49

6

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

7

BOX, BATT.

(5V4-21170-00-00)

Unavailable

8

BRACKET, BATT BOX

447-21149-00-00

Unavailable

9

BRACKET, BATT BOX

447-21344-00-00

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, SPRING

92995-06100-00

Unavailable

12

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

13

DAMPER

256-21747-00-00

Unavailable

14

O-RING

93210-40040-00

Unavailable

15

PLATE, SPEC

(5V4-21683-01-00)

Unavailable

16

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable

17

BOX

5V4-21258-00-00

Unavailable

18

WASHER, PLATE

90201-06M02-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

20

WASHER, SPRING

92995-06100-00

Unavailable

21

GROMMET (1E6)

90480-15058-00

Unavailable

22

COVER, SIDE 3

5V4-21731-00-00

Unavailable

23

COVER, SIDE 4

5V4-21741-00-00

Unavailable

24

GROMMET(41Y)

90480-01401-00

$8.49

25

TOOL KIT

3J3-W2810-00-00

Unavailable
