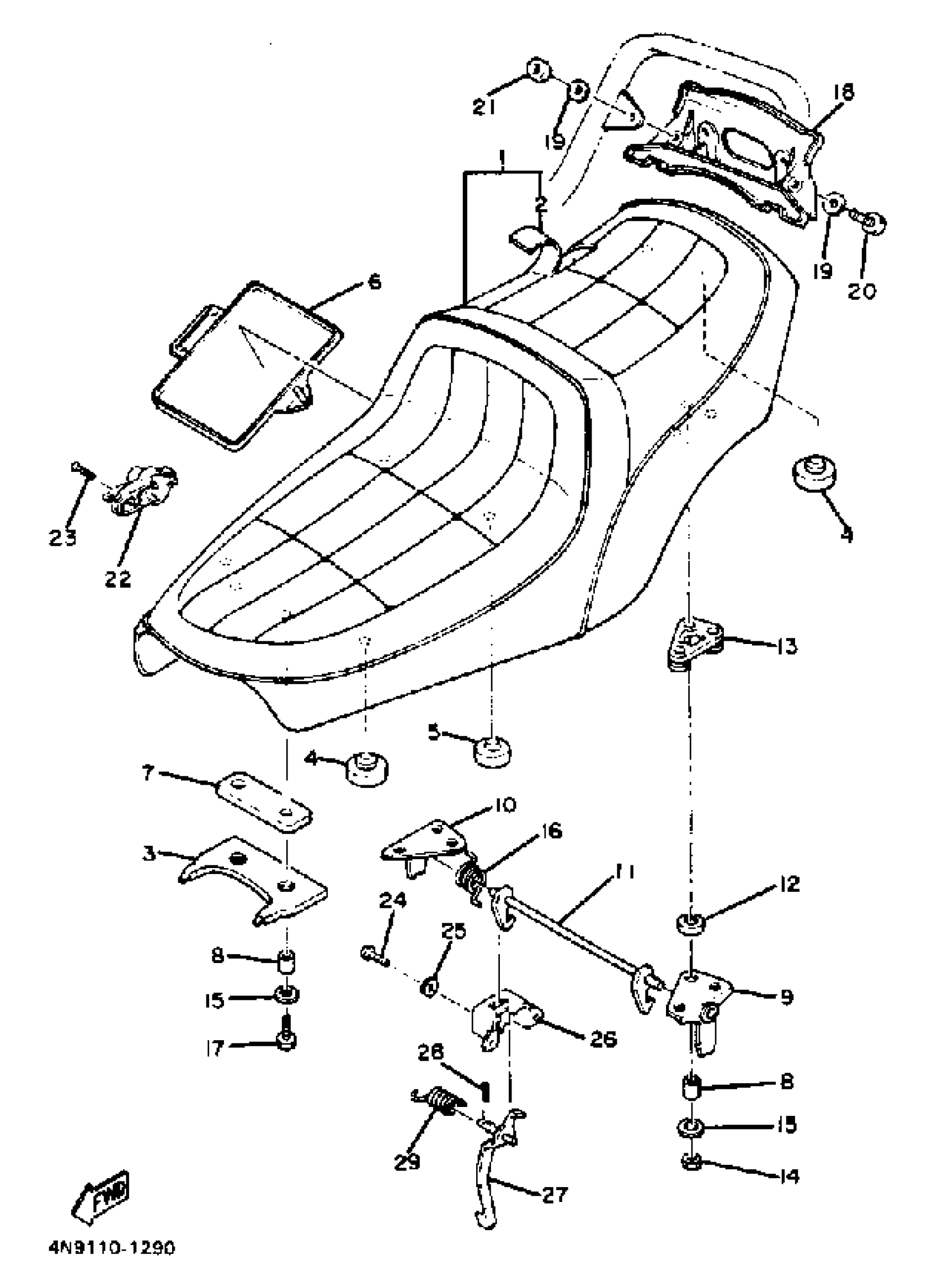

Yamaha XS650SJ (XS650S) 1982 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSEMBLY

4M4-W2472-00-00

Unavailable

2

COVER, DOUBLE SEAT

4M4-24731-00-00

Unavailable

3

BRACKET, SEAT

(3G1-24718-00-00)

Unavailable

4

PAD, SEAT

1L9-24741-00-00

$9.99

5

STOPPER, MAIN STAND

371-27114-00-00

$7.99

6

LID

2R6-28185-00-00

Unavailable

7

DAMPER, SEAT

3G1-24737-00-00

Unavailable

8

SPACER

90560-07007-00

$9.49

9

BRACKET, SEAT

3G1-24748-01-00

Unavailable

10

BRACKET, SEAT

(3G1-24738-01-00)

Unavailable

11

HOOK, SEAT

3G1-24754-01-00

Unavailable

12

DAMPER, SEAT

3G1-24747-00-00

Unavailable

13

DAMPER, SEAT

3G1-24724-00-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

WASHER, PLATE

90201-06M02-00

Unavailable

16

SPRING, TORSION

90508-18439-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

COVER, TAIL

3G1-24756-00-00

Unavailable

19

WASHER, PLAIN

92990-08200-00

Unavailable

20

BOLT, HEXAGON

97017-08025-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

SEAT LOCK ASSEMBLY

4M4-24705-00-00

Unavailable

23

SCREW (4G1)

90149-06154-00

Unavailable

24

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

BRACKET, SEAT LEVER

3G1-24775-00-00

Unavailable

27

LEVER, SEAT

3G1-24776-00-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

SPRING, TORSION

90508-20413-00

Unavailable
