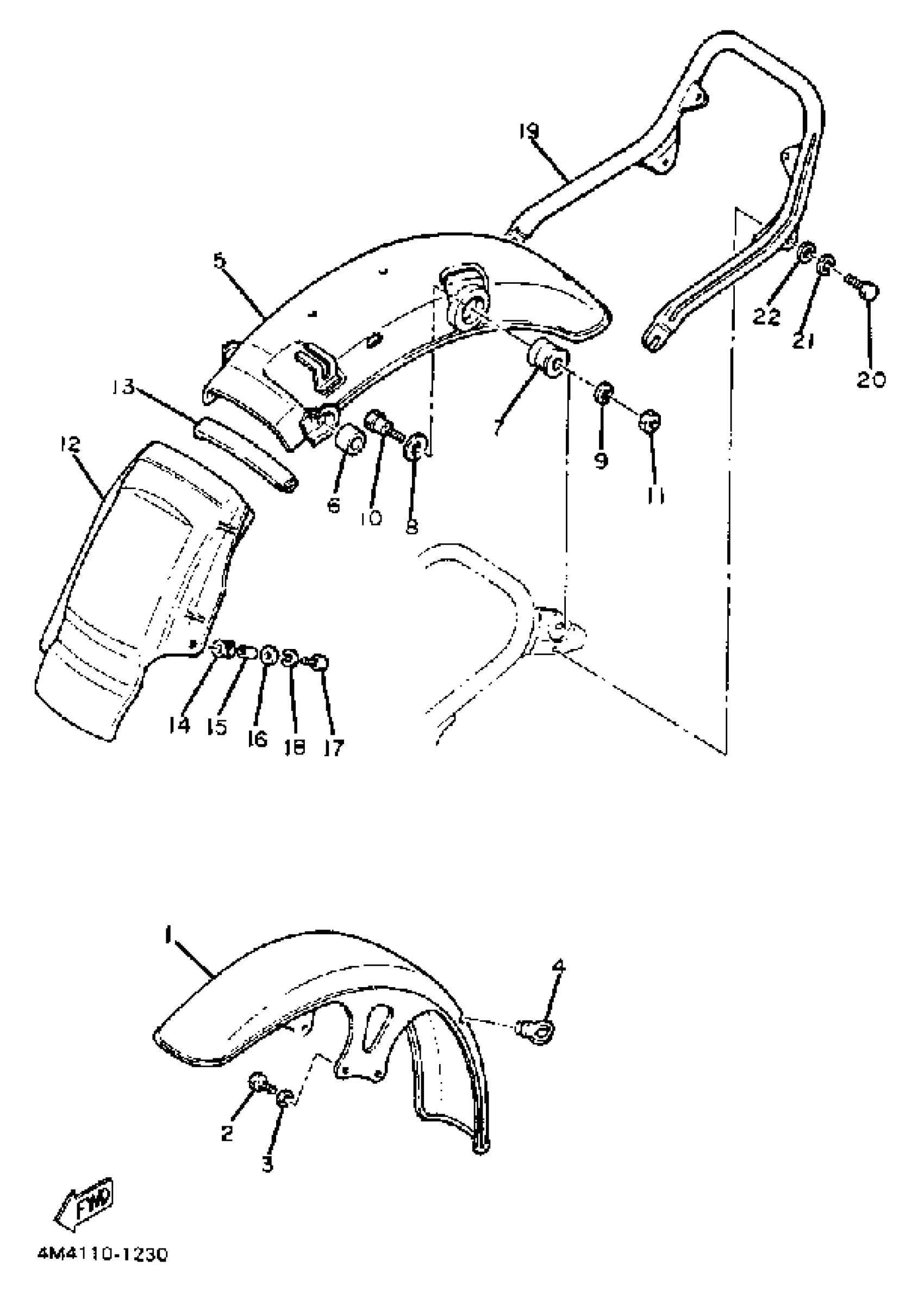

Yamaha XS650SJ (XS650S) 1982 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2J2-21510-00-33

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

HOLDER, WIRE

1A0-21518-00-00

Unavailable

5

FENDER, REAR

3G1-21610-00-33

Unavailable

6

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

7

DAMPER, REAR

168-21639-00-00

$10.99

8

WASHER, PLATE

90201-15239-00

Unavailable

9

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

10

BOLT

90109-10547-00

Unavailable

11

NUT(3BM)

95314-10600-00

$2.39

12

GUARD, MUD

(2M0-21629-00-00)

Unavailable

13

SEAL

447-21268-01-00

Unavailable

14

GROMMET 839774310000

90480-14023-00

$7.49

15

COLLAR

90387-07020-00

$8.49

16

WASHER, PLATE

90201-06380-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

STAY, REAR

3G1-21645-00-00

Unavailable

20

BOLT (8J7)

97013-10030-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

WASHER, PLATE

92990-10600-00

Unavailable
