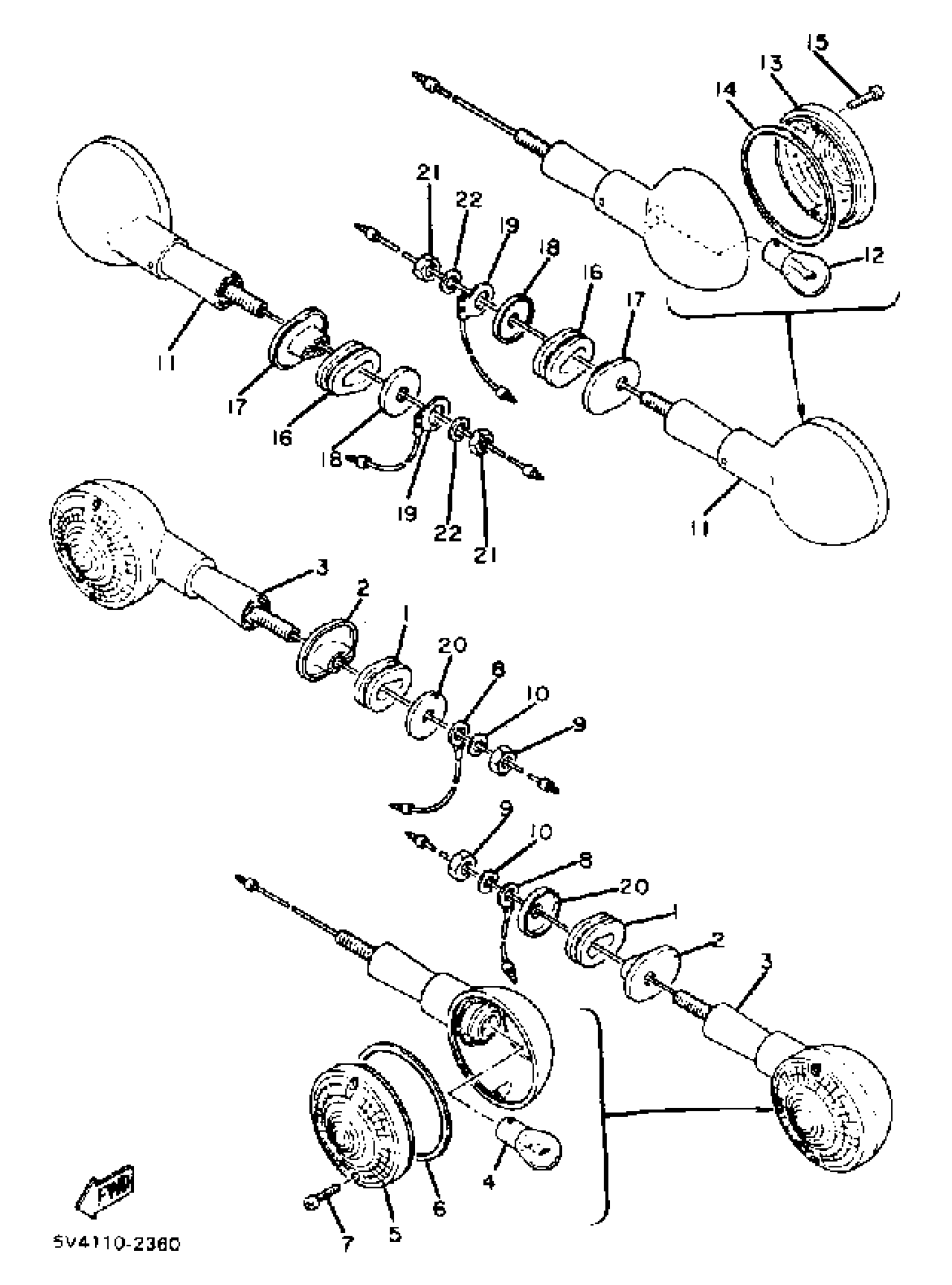

Yamaha XS650SJ (XS650S) 1982 FLASHER LIGHT Diagram

#

Description
Price

1

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

2

COLLAR, FLASHER 1

5V4-83316-00-00

Unavailable

3

FRT FLSHR LITE ASSEMBLY

5U5-83310-K0-00

Unavailable

4

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

5

LENS, FLASHER

341-83312-70-00

Unavailable

6

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

7

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

8

WIRE, EARTH (GROUND)

256-84313-01-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

R FLSHR LITE ASSEMBLY

5V4-83330-E0-00

Unavailable

12

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

13

LENS, FLASHER

341-83312-70-00

Unavailable

14

GASKET, FLASHER LENS

3Y6-83313-00-00

$7.99

15

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

16

DAMPER, FLASHER 1

256-83321-00-00

Unavailable

17

COLLAR, FLASHER 1

5V4-83316-00-00

Unavailable

18

WASHER, SPEC''L SHAP

90209-08028-00

Unavailable

19

CORD

447-83336-01-00

Unavailable

20

WASHER

90209-08008-00

Unavailable

21

NUT(6L2)

95333-08600-00

$2.49

22

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60
