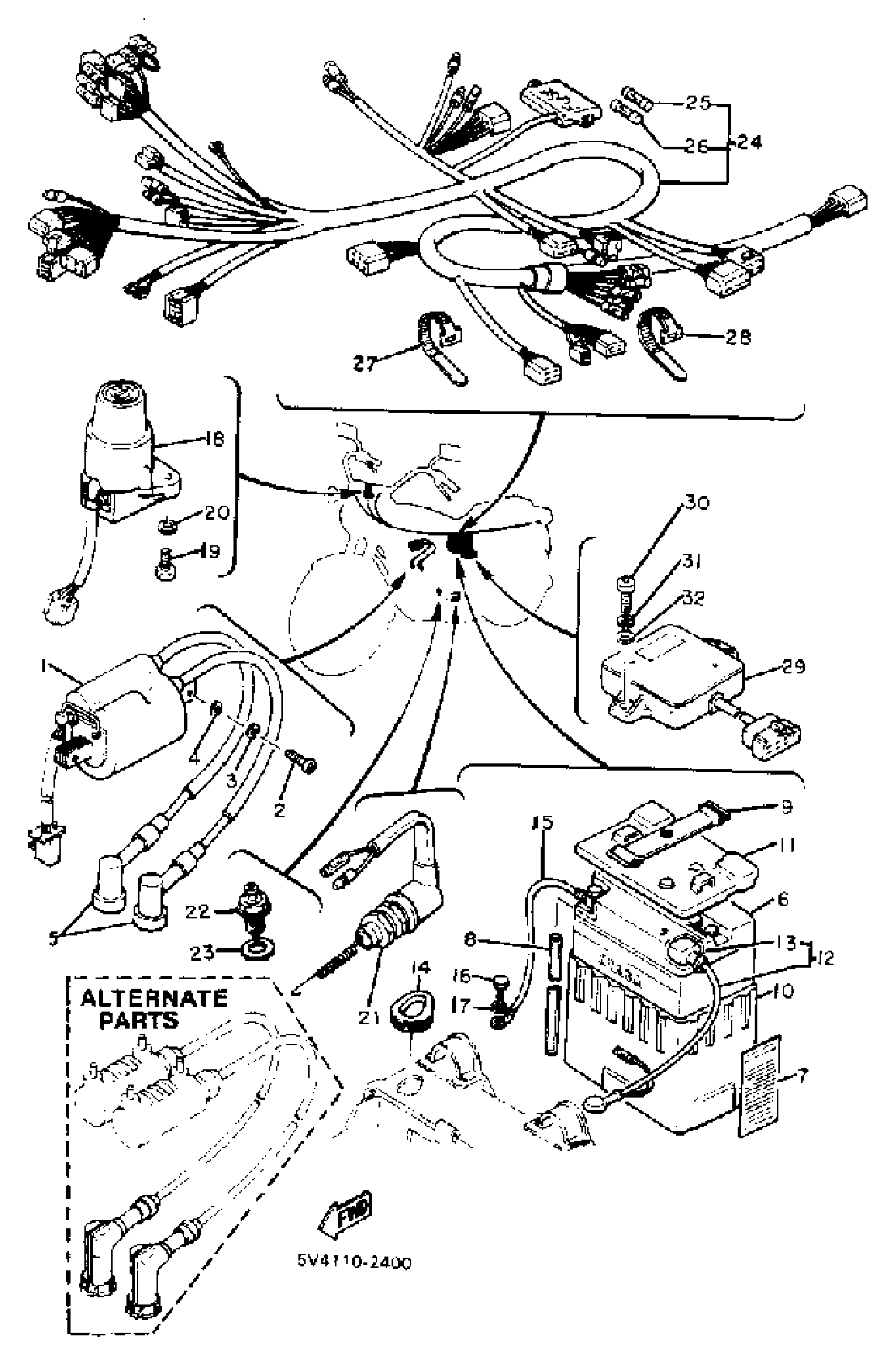

Yamaha XS650SJ (XS650S) 1982 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSEMBLY

4M4-82310-60-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

PLUG CAP ASSY

4BP-82370-01-00

$35.99

5

PLUG CAP ASSY

7KA-82370-00-00

$67.99

6

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

7

LABEL, BATTERY

40A-82141-G0-00

Unavailable

8

HOSE (L1500)

90445-084J0-00

$18.99

9

BAND,BATTERY

7H3-82131-00-00

$17.49

10

SEAT, BATTERY

447-82122-00-00

Unavailable

11

COVER, BATTERY

2M0-82129-00-00

Unavailable

12

WIRE, PLUS LEAD

447-82115-01-00

Unavailable

13

COVER, LEAD WIRE

447-82119-00-00

Unavailable

14

BRACKET, BATTERY

(447-82128-00-00)

Unavailable

15

WIRE,MINUS LEAD

2H7-82116-00-00

Unavailable

16

BOLT (661)

97013-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

MAIN SWITCH STEERING LOCK

3JV-82501-00-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

$2.80

21

STOP SWITCH ASSEMBLY

533-82530-02-00

Unavailable

22

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

23

WASHER, PLATE

90201-12790-00

Unavailable

24

WIRE HARNESS ASSEMBLY

5V4-82590-50-00

Unavailable

25

FUSE

1A0-82151-00-00

Unavailable

26

FUSE

1A0-82161-00-00

Unavailable

27

BAND, SWITCH CORD

25G-83936-01-00

Unavailable

28

BAND, SWITCH CORD

437-83936-11-00

Unavailable

29

IGNITOR UNIT ASSEMBLY 1

5V4-82305-10-00

Unavailable

30

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

31

WASHER, SPRING

92995-06100-00

Unavailable

32

WASHER, PLATE

90201-06380-00

Unavailable
