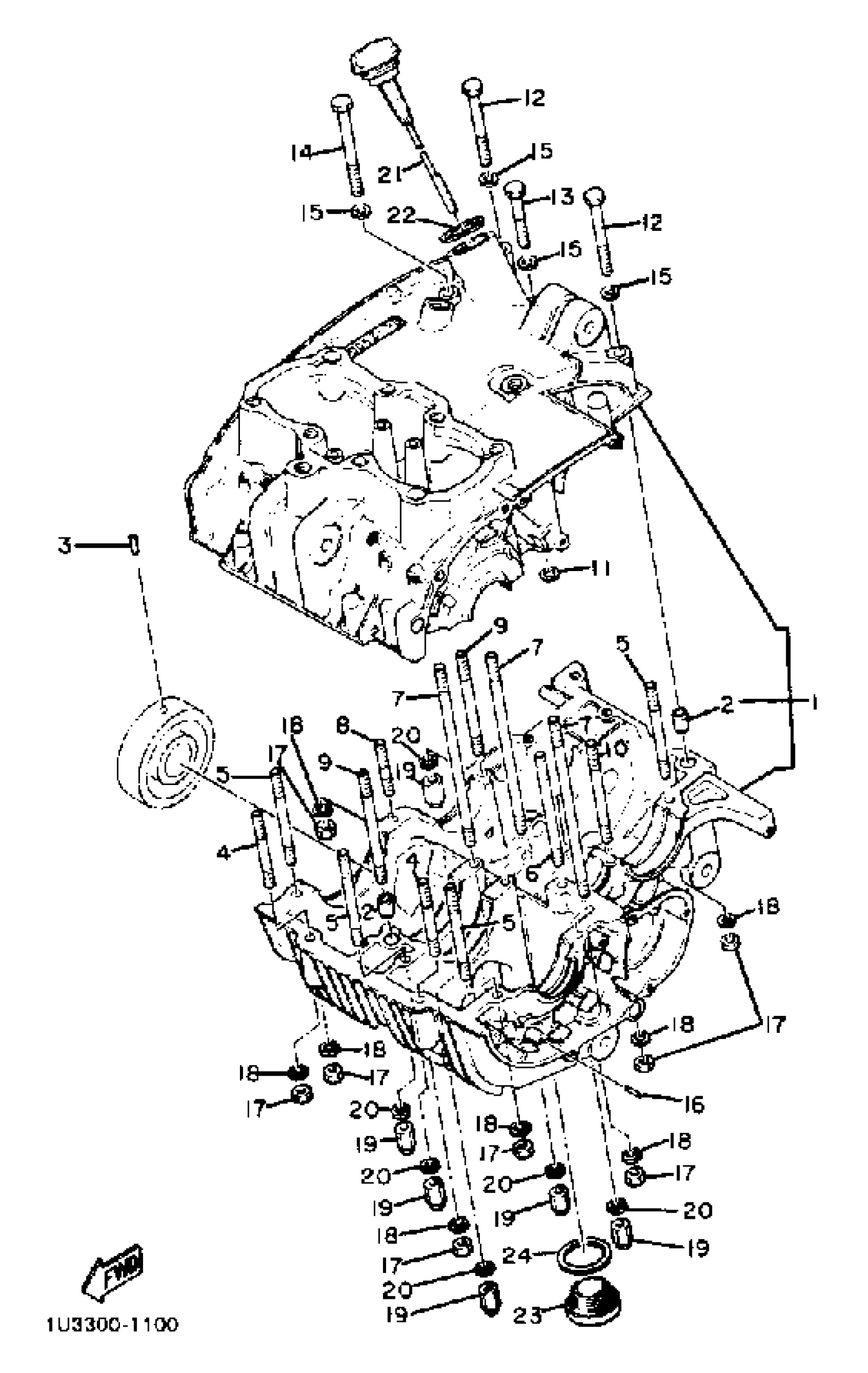

Yamaha XS650SJ (XS650S) 1982 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(5V4-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIN, DOWEL

93605-12069-00

Unavailable

4

BOLT,STUD

90116-08371-00

Unavailable

5

BOLT (248-11361-00)

90116-08064-00

$7.49

6

BOLT, STUD (1A1)

90116-08232-00

$12.49

7

BOLT, STUD

(90116-08199-00)

Unavailable

8

BOLT, STUD (306-15192-00)

90116-08047-00

Unavailable

9

BOLT, STUD

90116-08066-00

Unavailable

10

BOLT, STUD (19U)

90116-08393-00

$9.49

11

GASKET, OIL SEALING

256-15395-00-00

Unavailable

12

BOLT, HEXAGON

97017-08075-00

$49.99

13

BOLT, HEXAGON

97017-08055-00

$9.49

14

BOLT, HEXAGON

(97326-08090-00)

Unavailable

15

WASHER(6TC)

92907-08200-00

$8.49

16

PIN, DOWEL

93603-14026-00

Unavailable

17

NUT(6TA)

95337-08600-00

Unavailable

18

WASHER(6TC)

92907-08200-00

$8.49

19

NUT, crown

90176-08034-00

Unavailable

20

. GASKET

90430-08143-00

Unavailable

21

PLUG, OIL LEVEL

256-15362-02-00

Unavailable

22

GASKET 214217720000

90430-29114-00

Unavailable

23

PLUG, DRAIN

256-15351-00-00

Unavailable

24

GASKET, DRAIN PLUG

256-15353-00-00

Unavailable
