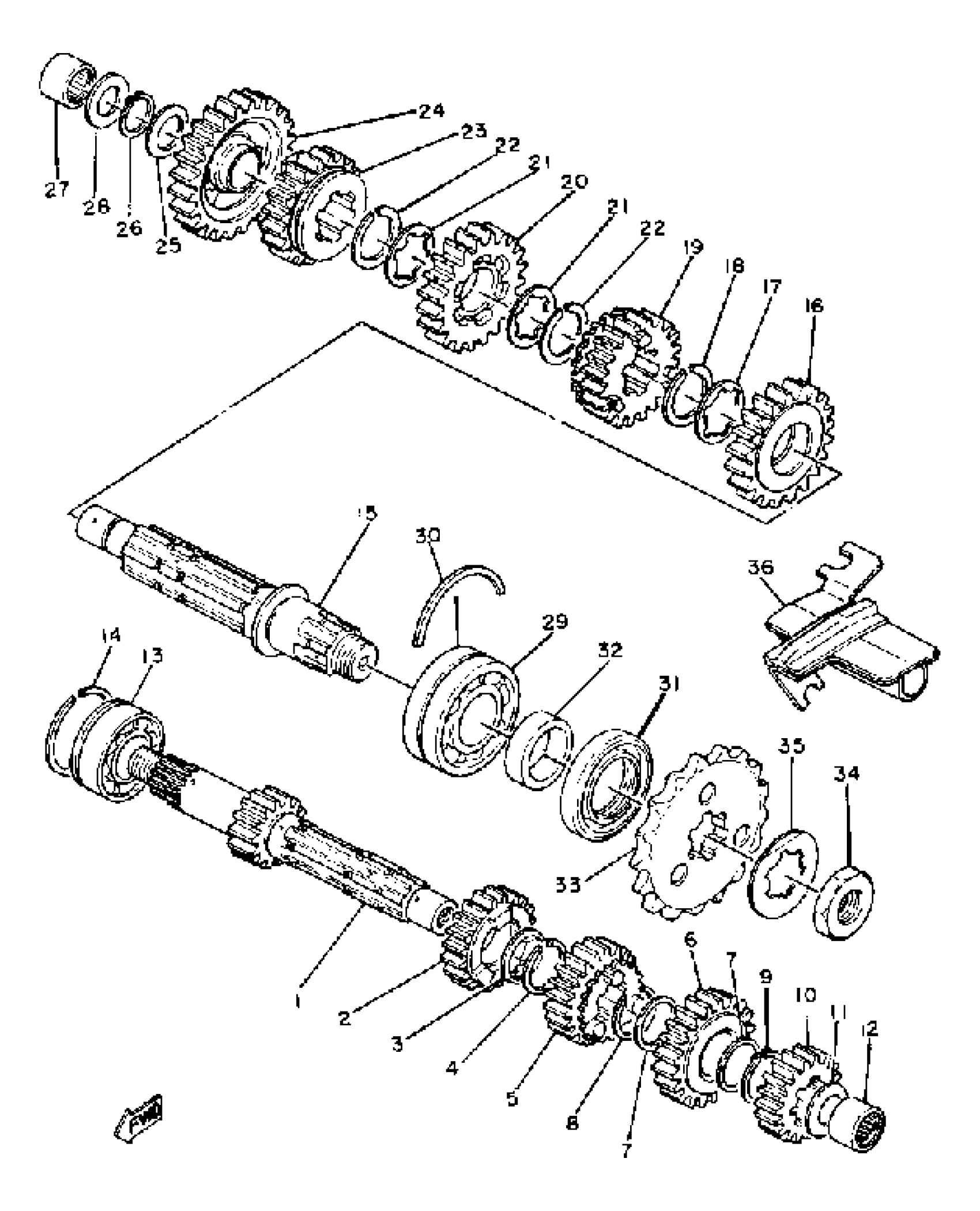

Yamaha XS650SH (XS650S) 1981 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(306-17411-03-00)

Unavailable

2

GEAR, 4TH PINION

256-17141-02-00

Unavailable

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

4

CIRCLIP

93440-25020-00

$9.49

5

GEAR, 3RD PINION

256-17131-04-00

Unavailable

6

GEAR, 5TH PINION

(341-17151-04-00)

Unavailable

7

WASHER, PLATE(59W)

90201-253K0-00

$8.49

8

CIRCLIP

93440-25020-00

$9.49

9

CIRCLIP (256)

93410-25017-00

$3.76

10

GEAR, 2ND PINION

256-17121-01-00

Unavailable

11

SHIM 1

(137-17427-00-09)

Unavailable

12

BEARING, CYLINDER.#13

93313-32007-00

Unavailable

13

BEARING(89A)

93305-20509-00

Unavailable

14

CIRCLIP (256)

93440-52014-00

$10.49

15

AXLE, DRIVE

256-17421-02-00

Unavailable

16

GEAR, 2ND WHEEL

256-17221-02-00

Unavailable

17

WASHER, GEAR HOLD 3

256-17236-00-10

Unavailable

17

WASHER, GEAR HOLD 3

256-17236-00-12

Unavailable

18

CIRCLIP, OUTER

93440-30015-00

Unavailable

19

GEAR, 5TH WHEEL

256-17251-04-00

Unavailable

20

GEAR, 3RD WHEEL

256-17231-04-00

Unavailable

21

WASHER, GEAR HOLD 3

256-17236-00-10

Unavailable

21

WASHER, GEAR HOLD 3

256-17236-00-12

Unavailable

22

CIRCLIP, OUTER

93440-30015-00

Unavailable

23

GEAR, 4TH WHEEL

256-17241-02-00

Unavailable

24

GEAR, 1ST WHEEL

306-17211-00-00

Unavailable

25

WASHER PLATE 132172160000

90201-20266-00

Unavailable

26

CIRCLIP, S-TYPE

93410-20021-00

Unavailable

27

BEARING, CYLINDER.#13

93313-32005-00

Unavailable

28

SHIM 1

(137-17427-00-09)

Unavailable

29

BEARING

93305-20603-00

Unavailable

30

CIRCLIP 1

168-17424-00-00

Unavailable

31

OIL SEAL (40X62X9-447)

93105-40018-00

Unavailable

32

COLLAR

90387-30200-00

Unavailable

33

SPROCKET, DRIVE

93855-17129-00

Unavailable

34

NUT, SPEC''L SHAPE

90179-22022-00

Unavailable

35

WASHER, LOCK

90215-26024-00

Unavailable

36

GUIDE, CHAIN 1

447-17467-02-00

Unavailable
