1981 Yamaha XS650S (XS650SH) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1981 Yamaha XS650S (XS650SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

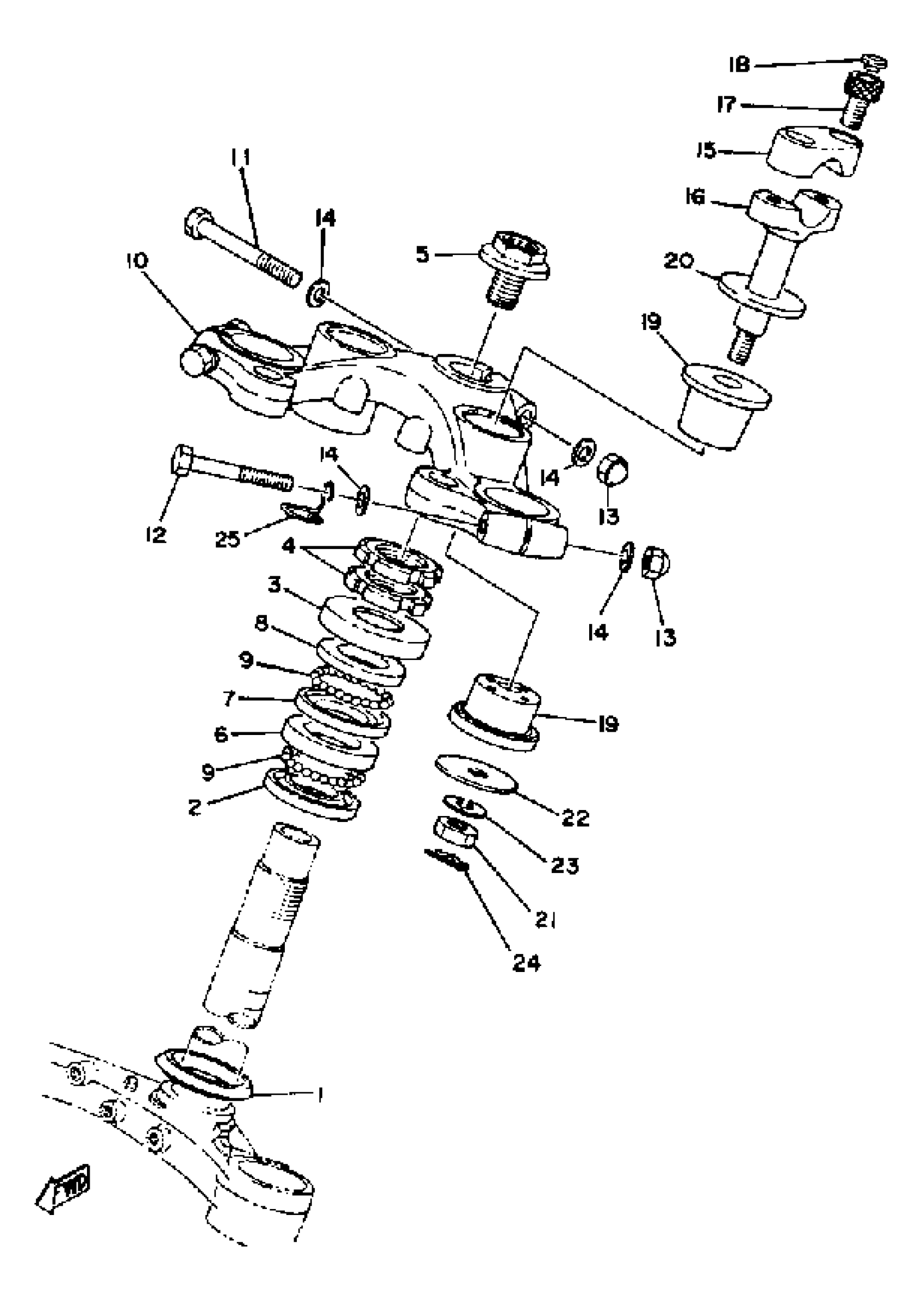

1981 Yamaha XS650S (XS650SH) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAL, DUST

164-23462-00-00

1

$6.42

In stock

2

RACE, BALL 1

256-23411-00-00

1
Out of stock

3

COVER, BALL RACE

136-23415-00-00

1

$7.71

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

6

RACE, BALL2

256-23412-00-00

—

$35.19

In stock

7

RACE, BALL3

256-23413-00-00

—

$35.19

In stock

8

RACE, BALL4

256-23414-00-00

—

$51.94

In stock

9

BALL

93501-04011-00

1
Out of stock

10

CROWN, HANDLE

2M0-23435-00-98

1
Out of stock

11

BOLT

97021-08065-00

1
Out of stock

12

BOLT, HEXAGON

97017-08055-00

1

$6.88

In stock

13

NUT, CAP

95307-08800-00

1
Out of stock

14

WASHER(6TA)

92907-08600-00

1

$2.52

In stock

15

HOLDER, HANDLE UPR

360-23441-01-98

1
Out of stock

16

HOLDER, HANDLE LOWER

4AA-23442-01-98

1
Out of stock

17

BOLT, SOCKET

91317-08025-00

—

$6.25

In stock

18

CAP, BOLT (371,447)

341-23469-00-00

—

$8.55

In stock

19

BUSHING, RUBBER

1T4-23434-00-00

—
Out of stock

20

WASHER (1J7)

90209-12151-00

—

$2.91

In stock

21

NUT (682)

95380-10700-00

1

$5.78

In stock

22

WASHER PLATE 256234440000

90201-10149-00

—

$6.68

In stock

23

—

$3.00

In stock

24

CLIP 136253750000

90468-12006-00

—

$5.10

In stock

25

HOLDER, CABLE

4H7-23317-00-00

1
Out of stock
