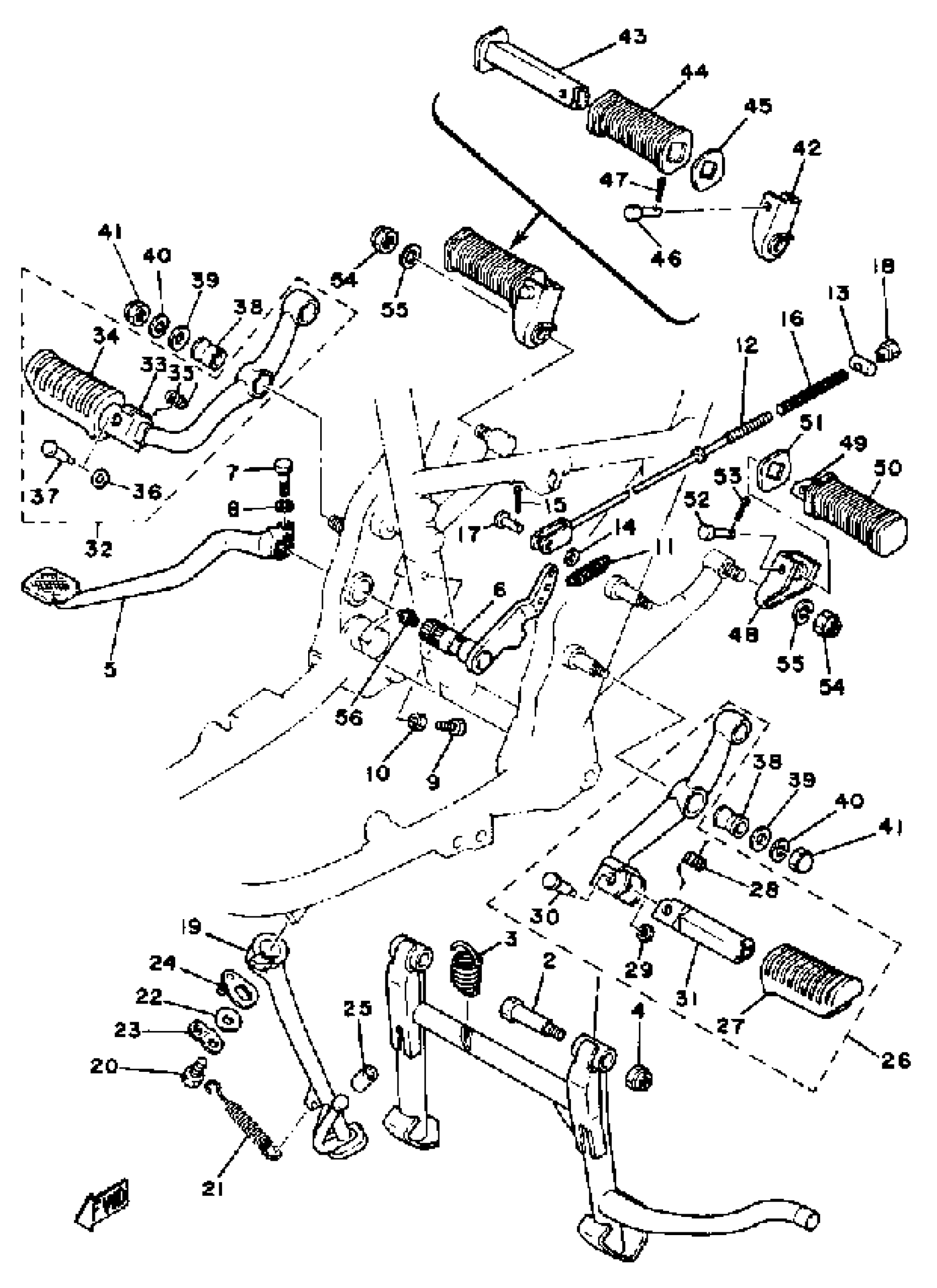

Yamaha XS650SH (XS650S) 1981 STAND FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

1T3-27111-02-00

Unavailable

2

BOLT

90109-10268-00

Unavailable

3

SPRING, TENSION

90506-50064-00

Unavailable

4

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

5

PEDAL, BRAKE

533-27211-01-93

Unavailable

6

SHAFT, BRAKE PEDAL

533-27212-00-00

Unavailable

7

BOLT (1J7)

90109-06468-00

$7.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SCREW 341272170000

90153-06008-00

$7.49

10

NUT, HEXAGON (371 447)

90170-06184-00

$5.60

11

SPRING, TENSION

90506-20249-00

Unavailable

12

ROD, BRAKE

447-27231-02-00

Unavailable

13

PIN 1562723700

90249-12008-00

$8.49

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

PIN, COTTER

91490-16020-00

Unavailable

16

SPRING, (180-27236-00)

90501-10245-00

Unavailable

17

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

18

NUT (25K)

90179-06411-00

Unavailable

19

BOLT, HEXAGON

97013-08020-00

Unavailable

20

BOLT, HEXAGON

97013-08020-00

Unavailable

21

SPRING (460)

90507-29009-00

Unavailable

22

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable

23

WASHER, SIDE STAND

36Y-27322-00-00

Unavailable

24

HOOK, SIDE STAND

36Y-27352-00-00

Unavailable

25

STOPPER

1T3-27314-00-00

Unavailable

26

FRT FOOTREST ASY L

1T3-27410-00-93

Unavailable

27

COVER, FOOTREST

4L0-27423-00-00

Unavailable

28

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

29

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

30

PIN (214-27418-00)

90243-08006-00

Unavailable

31

FOOTREST

3CK-27451-00-00

Unavailable

32

FRT FOOTREST ASSEMBLY R

1T3-27420-00-93

Unavailable

33

FOOTREST

3N6-27461-00-00

Unavailable

34

COVER, FOOTREST

4L0-27423-00-00

Unavailable

35

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

36

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

37

PIN (214-27418-00)

90243-08006-00

Unavailable

38

DAMPER, FOOTREST

256-27414-00-00

Unavailable

39

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

40

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

41

NUT, CROWN(3BM)

90176-10073-00

Unavailable

42

BRACKET 2

3G1-27442-00-00

Unavailable

43

FOOTREST, REAR 2

447-27441-00-00

Unavailable

44

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

45

WASHER 447274370000

90209-18070-00

Unavailable

46

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

47

PIN, COTTER

91490-16020-00

Unavailable

48

BRACKET 1

3G1-27432-00-00

Unavailable

49

FOOTREST, REAR 1

447-27431-00-00

Unavailable

50

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

51

WASHER 447274370000

90209-18070-00

Unavailable

52

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

53

PIN, COTTER

91490-16020-00

Unavailable

54

NUT CROWN(663)

95380-12800-00

Unavailable

55

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

56

NIPPLE, GREASE

93700-06M03-00

Unavailable
