1981 Yamaha XS650S (XS650SH) Speedometer Tachometer Diagram

← All diagrams

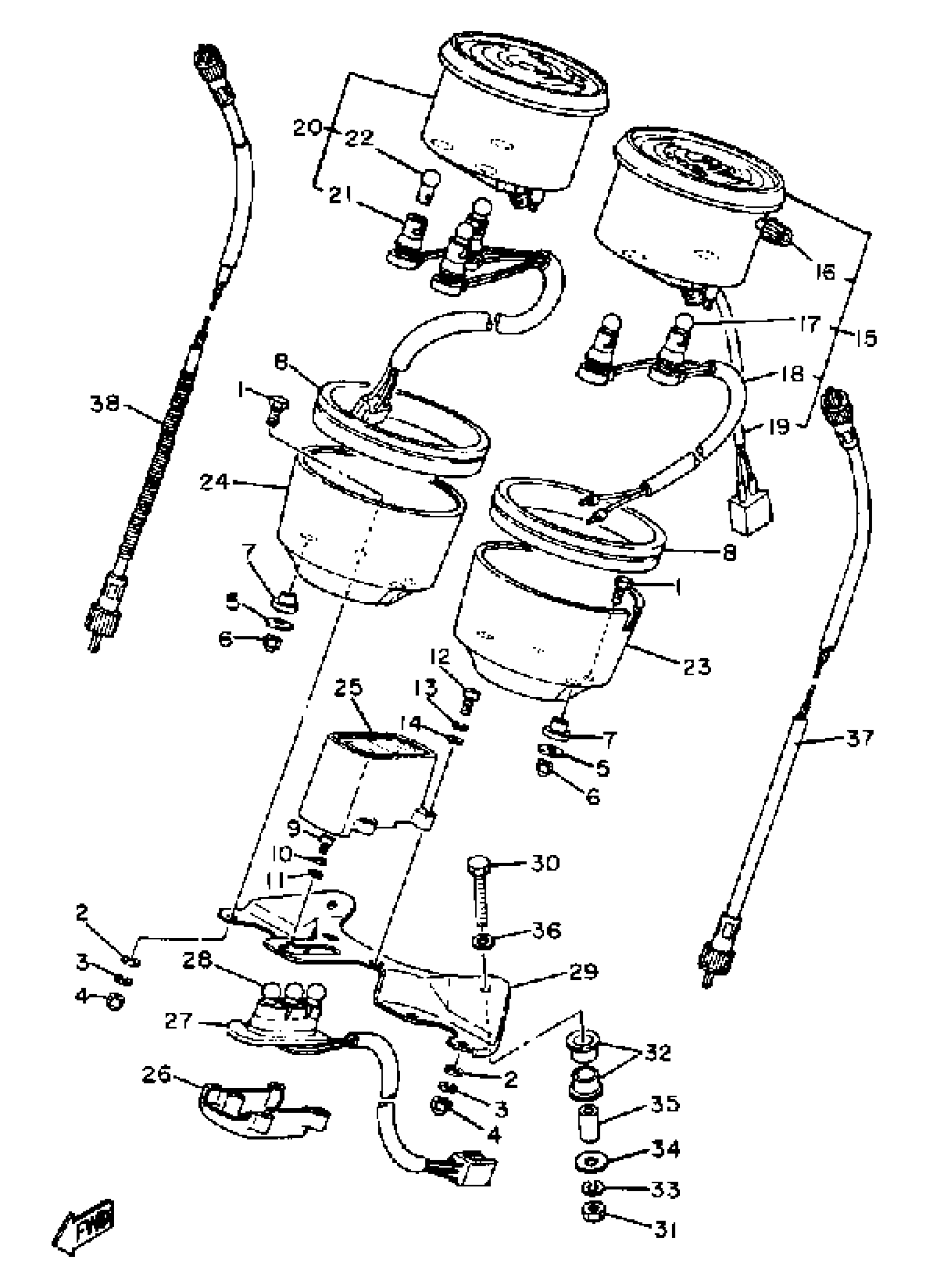

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha XS650S (XS650SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650S (XS650SH) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT

584-83546-00-00

1
Out of stock

2

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

NUT (J17)

95380-06800-00

1

$6.74

In stock

5

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

6

NUT (CROWN)

95303-05800-00

1
Out of stock

7

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

8

DAMPER

3H3-83513-00-00

1
Out of stock

9

SCREW, PAN HEAD

(92503-04008-00)

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

SCREW, PAN HEAD

98517-04012-00

1

$3.28

In stock

13

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

14

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

15

SPEEDOMETER ASSY

5H1-83570-A0-00

1
Out of stock

16

KNOB, TRIP METER

4SV-83578-00-00

—
Out of stock

17

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

18

. SOCKET CORD ASSY

10M-83520-20-00

1
Out of stock

19

. SENDER

2H7-83556-00-00

1
Out of stock

20

TACHOMETER ASSEMBLY

3X4-83540-00-00

1
Out of stock

21

SOCKET CORD ASSEMBLY

(10M-83509-10-00)

1
Out of stock

22

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

23

COVER, SPEEDOMETER

2J2-83507-00-00

—
Out of stock

24

COVER, TACHOMETER

2J2-83508-00-00

—
Out of stock

25

PILOT BOX, UPPER

3G1-83568-A0-00

1
Out of stock

26

PILOT BOX, LOWER

2G2-83569-A0-00

1
Out of stock

27

SOCKET CORD ASSEMBLY

3G1-83509-00-00

1
Out of stock

28

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

29

BRACKET, METER

2M0-83519-00-00

1
Out of stock

30

BOLT(8BC)

97017-06040-00

—
Out of stock

31

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

32

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

35

COLLAR (877)

90387-06249-00

—
Out of stock

36

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

37

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

38

TACHOMETER CABLE

447-83560-01-00

1
Out of stock
