1981 Yamaha XS650S (XS650SH) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1981 Yamaha XS650S (XS650SH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

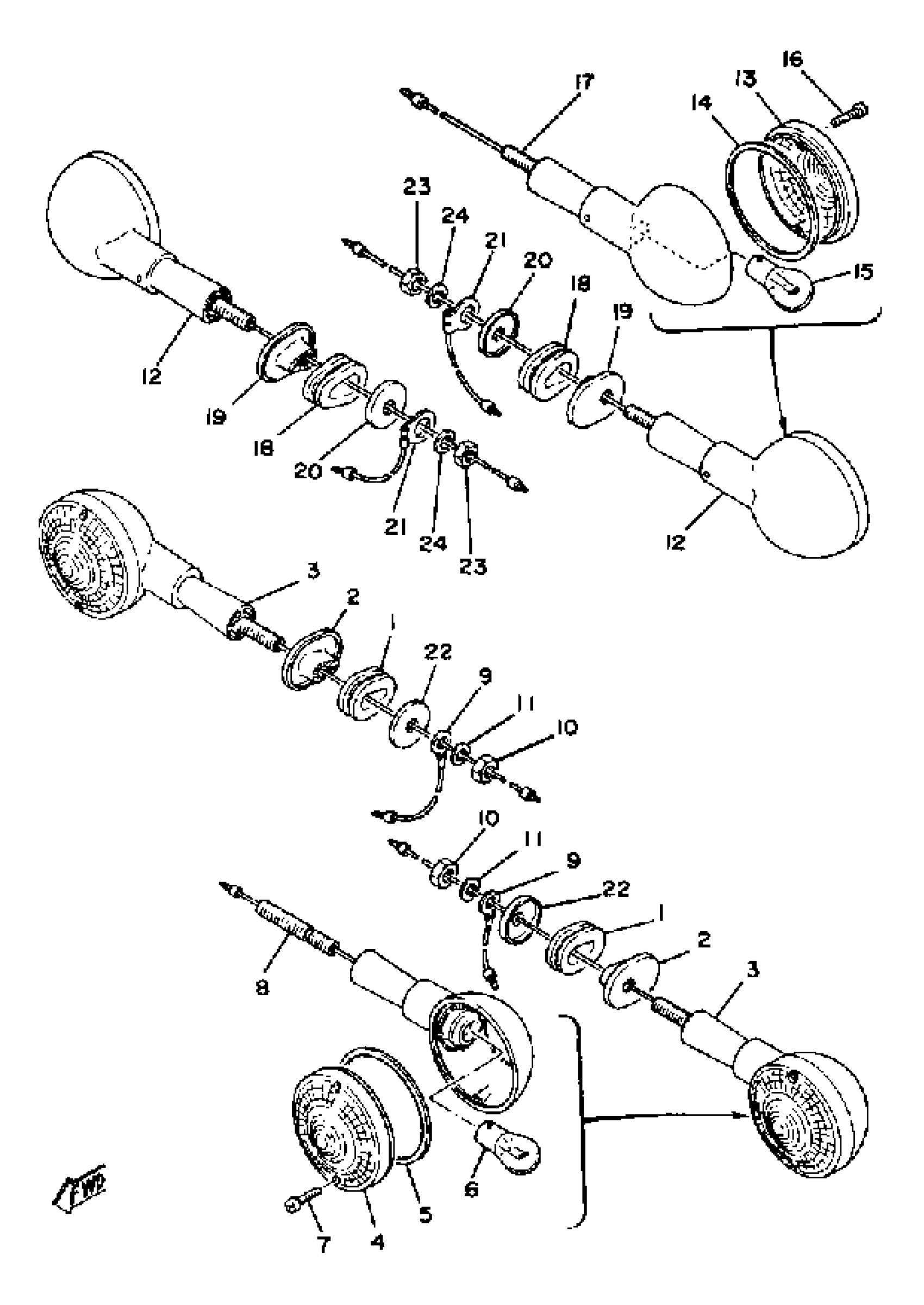

1981 Yamaha XS650S (XS650SH) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER, FLASHER 1

256-83321-00-00

1
Out of stock

2

COLLAR, FLASHER 1

366-83316-00-00

1
Out of stock

3

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

1
Out of stock

4

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

5

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

6

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

7

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

8

. BOLT, STUD

341-83367-09-00

1
Out of stock

9

WIRE, EARTH (GROUND)

256-84313-01-00

1
Out of stock

10

NUT(6L2)

95333-08600-00

1

$3.20

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

R FLSHR LITE ASSEMBLY

1E5-83330-20-93

1
Out of stock

13

LENS, FLASHER

341-83312-70-00

—

$16.86

In stock

14

GASKET, FLASHER LENS

3Y6-83313-00-00

1

$6.58

In stock

15

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

16

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

17

. BOLT, STUD

360-83367-09-00

1
Out of stock

18

DAMPER, FLASHER 1

256-83321-00-00

1
Out of stock

19

COLLAR, FLASHER 1

366-83316-00-00

1
Out of stock

20

WASHER, SPEC''L SHAP

90209-08028-00

1
Out of stock

21

CORD

447-83336-01-00

1
Out of stock

22

WASHER

90209-08008-00

—
Out of stock

23

NUT(6L2)

95333-08600-00

1

$3.20

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock
