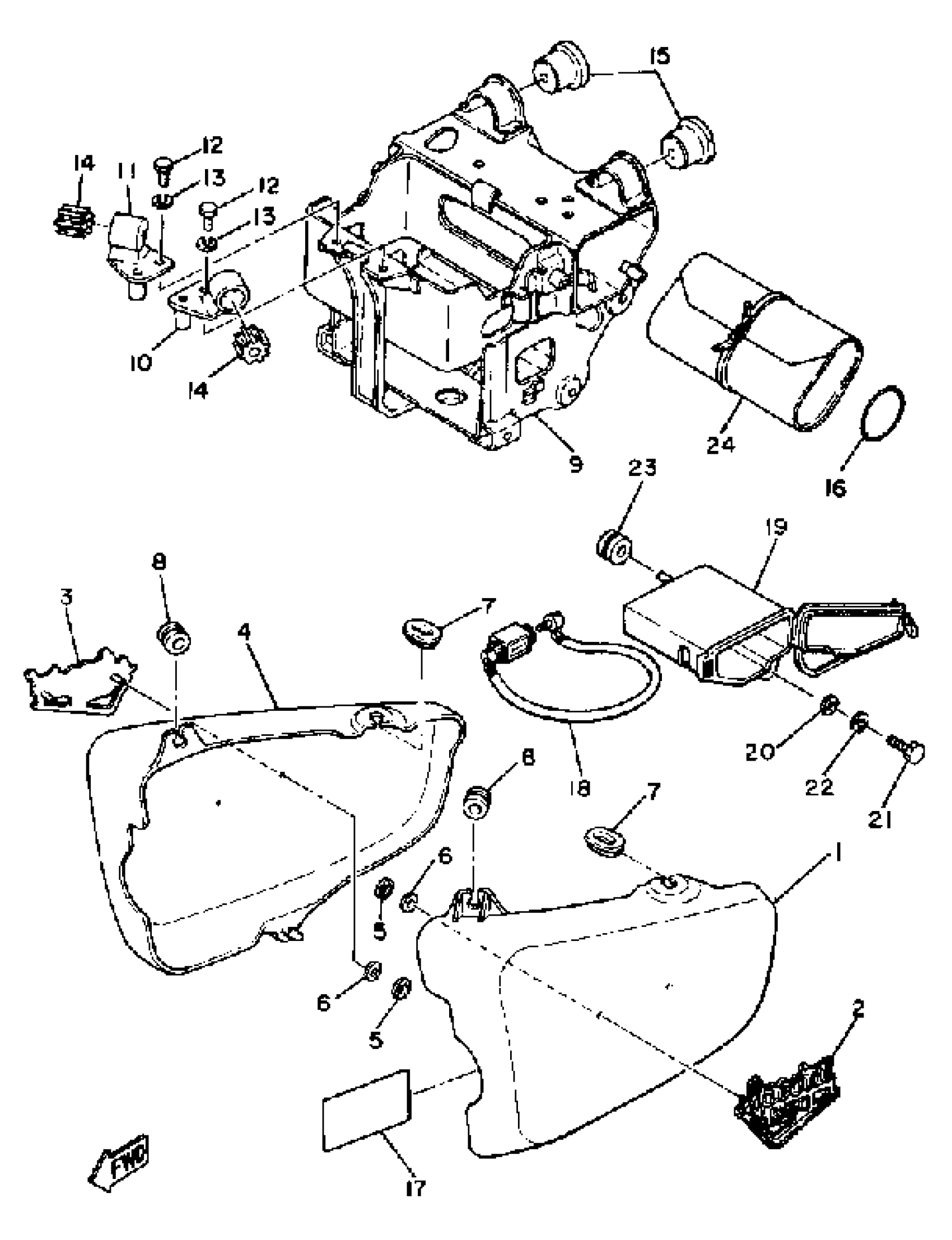

Yamaha XS650SH (XS650S) 1981 SIDE COVER TOOL Diagram

#

Description
Price

1

COVER, SIDE 1

3G1-21711-00-9G

Unavailable

1

COVER, SIDE 1

4N9-21711-00-6G

Unavailable

2

EMBLEM 1

4M4-21781-00-00

Unavailable

3

EMBLEM 2

4M4-21782-00-00

Unavailable

4

COVER, SIDE 2

(3G1-21721-00-9G)

Unavailable

4

COVER, SIDE 2

4N9-21721-00-6G

Unavailable

5

NUT SPRING 116283170100

90183-04005-00

$10.49

6

WASHER PLATE 174283160000

90202-04003-00

$8.49

7

GROMMET(41Y)

90480-01401-00

$8.49

8

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

9

BOX, BATT.

(3G1-21170-01-33)

Unavailable

10

BRACKET, BATT BOX

447-21149-00-00

Unavailable

11

BRACKET, BATT BOX

447-21344-00-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

DAMPER, SIDE COVER

2J2-21729-00-00

Unavailable

15

DAMPER

256-21747-00-00

Unavailable

16

O-RING

93210-40040-00

Unavailable

17

PLATE, SPEC

(4M4-21683-00-00)

Unavailable

18

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

Unavailable

19

BOX

4M4-21258-00-00

Unavailable

20

WASHER, PLATE

90201-06M02-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

22

WASHER, SPRING

92995-06100-00

Unavailable

23

GROMMET (1E6)

90480-15058-00

Unavailable

24

TOOL KIT

3J3-W2810-00-00

Unavailable
