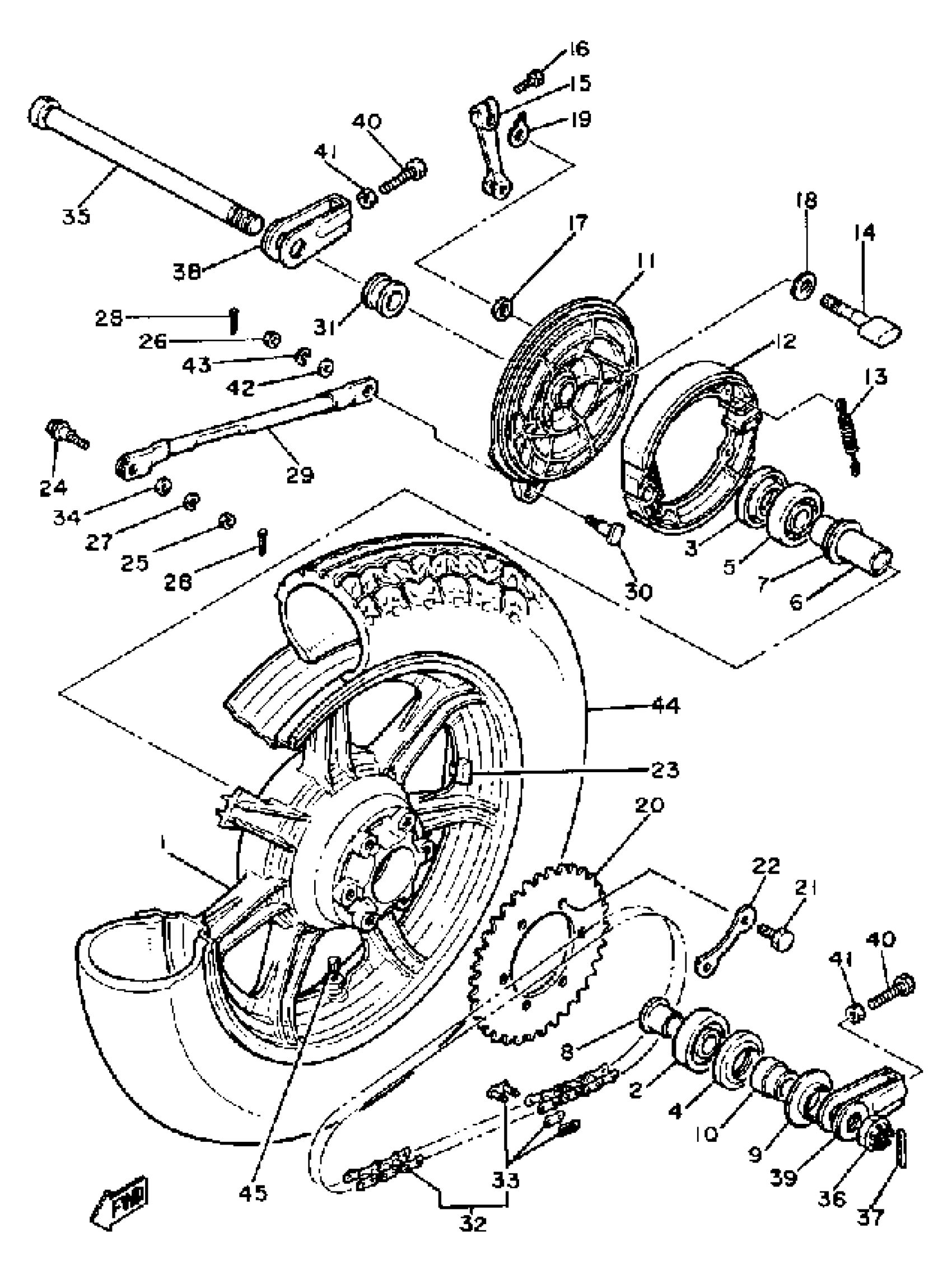

Yamaha XS650SH (XS650S) 1981 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(4M4-25338-20-00)

Unavailable

2

BRG,R-B 6305ZZ 62MM 232G (6A5)

93306-305U0-00

Unavailable

3

OIL SEAL (27X52X5-256)

93104-27026-00

$19.99

4

OIL SEAL (35X62X9-256)

93102-35065-00

Unavailable

5

BEARING(3BC)

93306-30437-00

$66.99

6

SPACER

90560-20135-00

Unavailable

7

FLANGE, SPACER

2H7-25315-00-00

$7.99

8

COLLAR

90387-20166-00

Unavailable

9

COVER, HUB DUST

256-25367-00-00

Unavailable

10

COLLAR

90387-20176-00

Unavailable

11

PLATE, BRAKE SHOE

(4M4-25321-00-98)

Unavailable

12

BRAKE SHOE KIT

5R3-W253E-00-00

Unavailable

13

SPRING, TENSION 2462533300

90507-20002-00

$8.49

14

CAMSHAFT

4H7-25351-00-00

$44.99

15

LEVER, CAMSHAFT

341-25355-00-00

Unavailable

16

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

17

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

18

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

19

PLATE, INDICATOR

4H7-2533A-02-00

Unavailable

20

SPROCKET,DRIVN 34T

256-25434-20-00

Unavailable

21

BOLT

90101-10479-00

Unavailable

22

WASHER, LOCK

256-25412-00-00

Unavailable

23

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

23

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

23

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

24

BOLT

90109-08374-00

Unavailable

25

. NUT

95380-08700-00

Unavailable

26

NUT, HEXAGON (509)

90170-08158-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

BAR, TENSION

2M1-25371-00-00

Unavailable

30

BOLT

90109-08338-00

Unavailable

31

CHAIN 50HDS-104L

94580-05104-00

Unavailable

33

CHAIN JOINT

94680-05011-00

Unavailable

34

.. WASHER, PLATE

92990-08600-00

Unavailable

35

AXLE, WHEEL

341-25381-00-00

Unavailable

36

NUT, CASTLE

90171-18043-00

Unavailable

37

PIN, COTTER

91490-40045-00

Unavailable

38

PULLER, CHAIN 1

341-25388-01-00

Unavailable

39

PULLER, CHAIN 2

341-25389-00-00

Unavailable

40

BOLT(4SR)

90101-08777-00

Unavailable

41

. NUT

95380-08700-00

Unavailable

42

.. WASHER, PLATE

92990-08600-00

Unavailable

43

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

43

130/90-16 K127S TL

(94113-16434-00)

Unavailable

45

VALVE, RIM (31A)

93900-00031-00

Unavailable

45

VALVE, RIM (31A)

93900-00031-00

Unavailable
