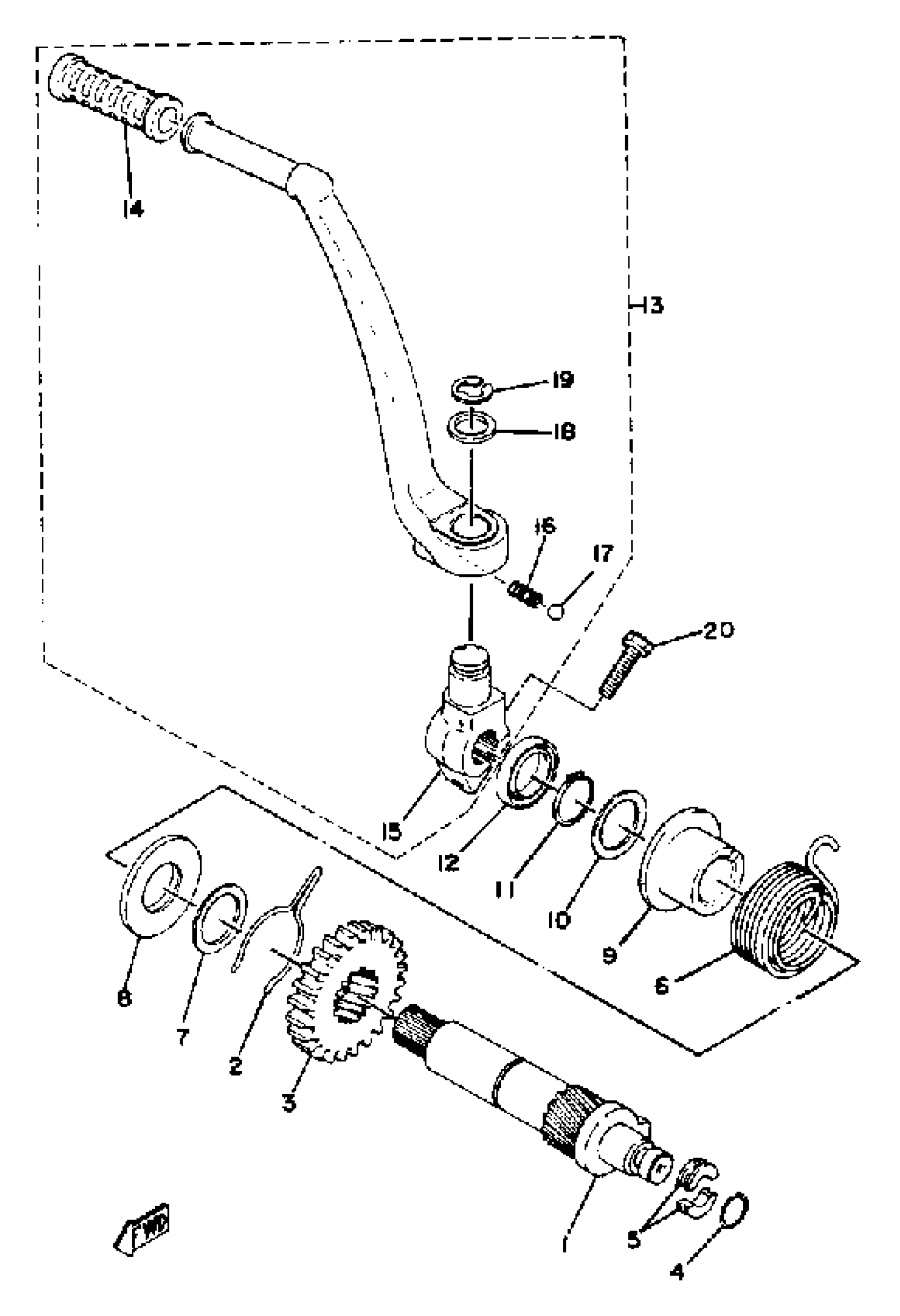

Yamaha XS650SH (XS650S) 1981 KICK STARTER Diagram

#

Description
Price

1

KICK AXLE ASSEMBLY

(256-15660-02-00)

Unavailable

2

CLIP

(90468-26044-00)

Unavailable

3

GEAR, KICK

306-15641-01-00

Unavailable

4

CLIP

(256-15673-00-00)

Unavailable

5

HOLDER, KICK GEAR

(256-15654-00-00)

Unavailable

6

SPRING, TORSION

90508-32062-00

Unavailable

7

SHIM (0.1MM)

611-45567-00-01

Unavailable

7

SHIM

(611-45567-00-03)

Unavailable

7

SHIM (0.5MM)

611-45567-00-05

Unavailable

8

SPACER (856-23858-00)

90560-25048-00

Unavailable

9

GUIDE, SPRING

256-15664-01-00

Unavailable

10

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

11

CIRCLIP (256)

93410-25017-00

$3.76

12

OIL SEAL (25X35X7-256)

93102-25064-00

$14.99

13

KICK CRANK ASSY

1JN-15610-00-00

Unavailable

14

COVER, KICK LEVER

156-15618-01-00

Unavailable

15

BOSS, KICK CRANK

(2M0-15621-01-00)

Unavailable

16

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

17

BALL (12R)

93507-32031-00

Unavailable

18

WASHER PLATE 278156130000

90201-15234-00

Unavailable

19

CIRCLIP

99006-10600-00

Unavailable

20

BOLT, HEXAGON

97013-08030-00

Unavailable
