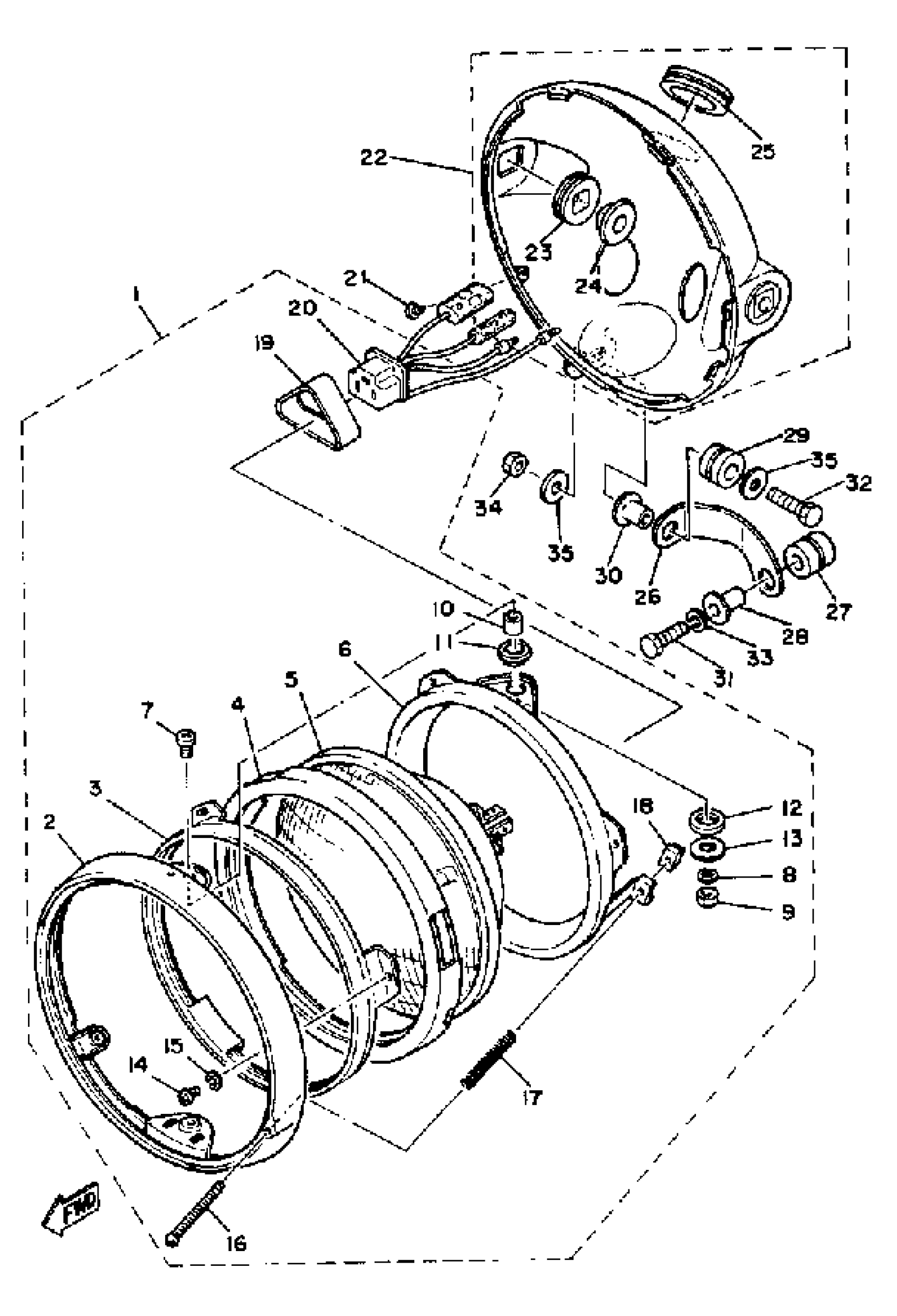

Yamaha XS650SH (XS650S) 1981 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSEMBLY

584-84310-61-00

Unavailable

2

RIM, HEAD LAMP

341-84315-40-00

$142.99

3

. RING, RETAINING

447-84395-60-00

Unavailable

4

. GASKET, LENS

447-84322-60-00

Unavailable

5

. LENS ASSEMBLY

341-84320-60-00

Unavailable

6

RING,MOUNTING

447-84394-69-00

Unavailable

7

SCREW, PAN HEAD

98517-05020-00

$4.25

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

NUT, HEXAGON (663)

95380-05600-00

$8.49

10

. COLLAR 1

584-84392-60-00

Unavailable

11

. DAMPER

584-84393-60-00

Unavailable

12

. DAMPER, MNTNG RNG 1

584-84399-60-00

Unavailable

13

WASHER PLATE 803835240000

90201-05032-00

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

15

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

16

. SCREW, RIM ADJUSTING

447-84331-61-00

Unavailable

17

SPRING, COMPRESSION (ITALY)

447-84332-60-00

Unavailable

18

NUT, ADJUST

198-84334-60-00

Unavailable

19

. COVER, SOCKET

341-84397-61-00

Unavailable

20

SOCKET

371-84312-60-00

Unavailable

21

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

22

BODY ASSEMBLY

584-84330-61-93

Unavailable

23

DAMPER, HEAD LAMP

584-84345-60-00

Unavailable

24

COLLAR 2

584-84338-60-00

Unavailable

25

GROMMET, WIREHARNESS

214-84153-60-00

Unavailable

26

STAY, HEADLIGHT 1

2M0-84318-00-00

Unavailable

27

GROMMET

90480-14244-00

Unavailable

28

COLLAR

90387-07549-00

Unavailable

29

GROMMET 839774310000

90480-14023-00

Unavailable

30

COLLAR

90387-06158-00

Unavailable

31

BOLT, HEXAGON

97017-06025-00

Unavailable

32

BOLT, HEXAGON

97017-06030-00

Unavailable

33

WASHER, SPRING

92995-06100-00

Unavailable

34

NUT, HEXAGON

95380-06600-00

Unavailable

35

WASHER, PLATE

90201-06380-00

Unavailable
