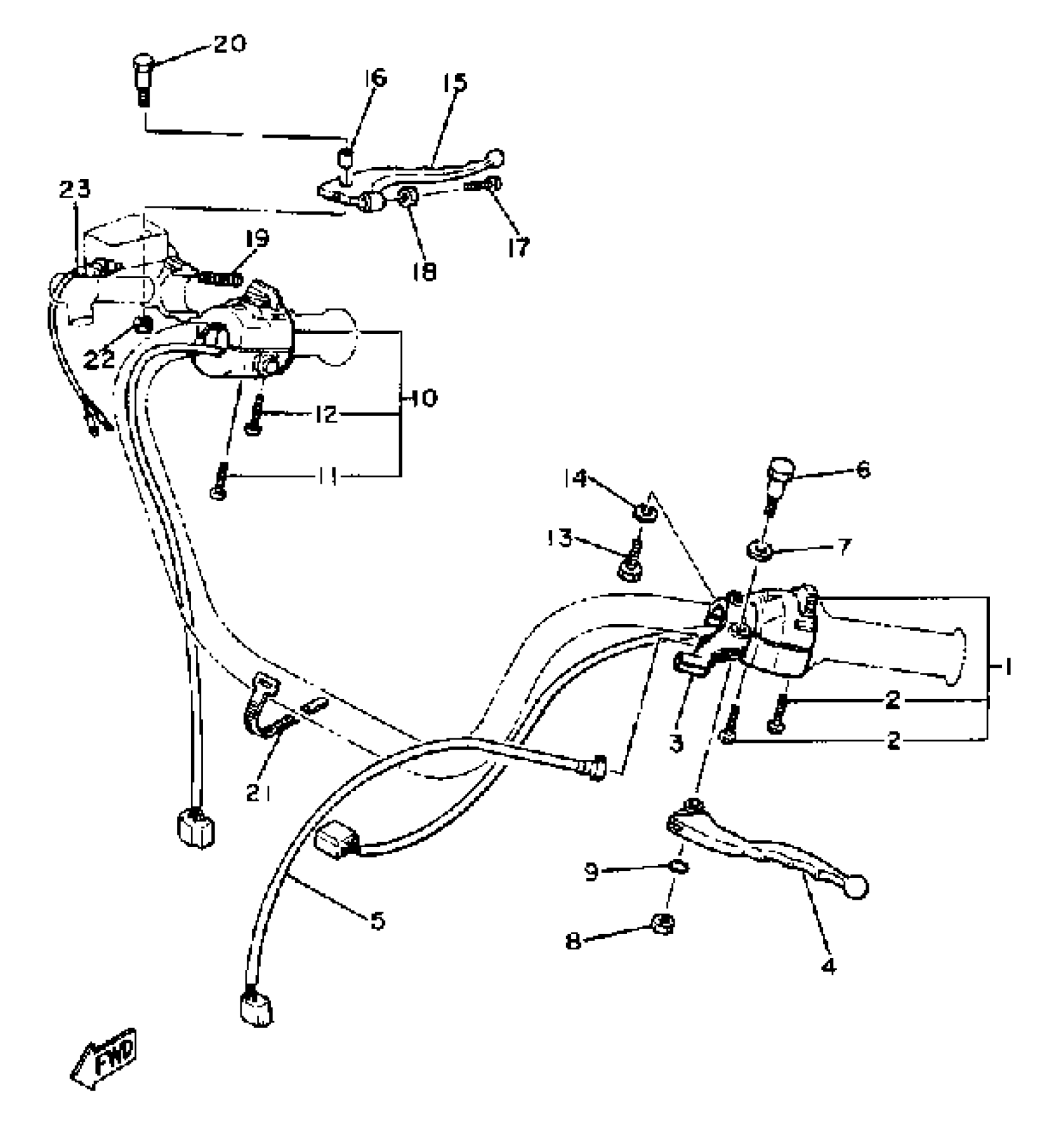

Yamaha XS650SH (XS650S) 1981 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 3

1T3-83973-00-00

Unavailable

2

SCREW, PAN HEAD

98517-05030-00

$10.49

3

HOLDER, LEVER 1

3Y6-82911-00-00

$55.99

4

LEVER L

2H0-83912-31-00

$31.99

5

SWITCH

3Y6-82917-00-00

Unavailable

6

BOLT(1FG)

90109-06798-00

$8.49

7

WASHER, PLATE 1562722600

90201-08083-00

$9.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

O-RING (2H7)

93210-11368-00

$5.60

10

SWITCH, HANDLE 2LR

2L0-83975-01-98

Unavailable

11

SCREW, PAN HEAD

98517-05030-00

$10.49

12

SCREW, PAN

98507-05040-00

$8.49

13

BOLT, HEXAGON

97007-06022-00

$8.49

14

WASHER, SPRING

92907-06100-00

$4.25

15

LEVER (R.H)

2H7-83922-20-00

$40.99

16

BUSH, SPEC''L NYLON

90386-08094-00

Unavailable

17

SCREW (2L0)

90149-06131-00

Unavailable

18

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

19

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

20

BOLT (4L0)

90109-06577-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable

22

NUT, SELF-LOCKING

95617-06100-00

$8.49

23

FRONT STOP SWITCH ASSY

26H-83980-00-00

Unavailable
