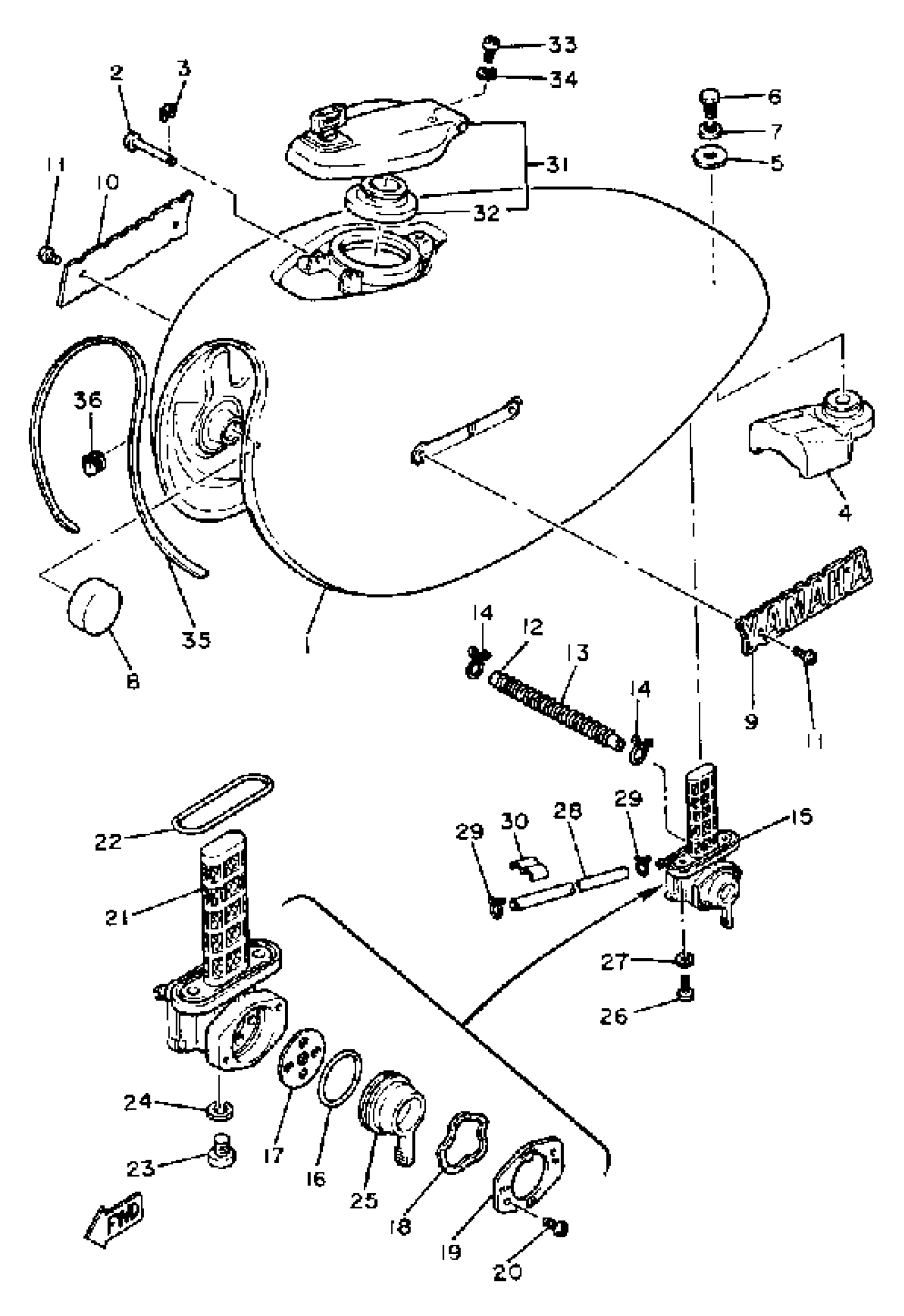

Yamaha XS650SH (XS650S) 1981 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK (NEW WHITE)

3G1-24110-00-6G

Unavailable

1

FUEL TANK

3G1-24110-00-9G

Unavailable

2

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

3

CIRCLIP (604)

93430-02001-00

$8.49

4

DAMPER, LOCATING 1

256-24181-01-00

Unavailable

5

WASHER PLATE 248217570000

90201-06074-00

$9.49

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, SPRING

92995-06100-00

Unavailable

8

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

9

EMBLEM 1

4G7-24161-00-00

$64.99

10

EMBLEM 1

4G7-24161-00-00

$64.99

11

SCREW (2F0)

90152-04006-00

$10.49

12

HOSE (L450)

90445-10144-00

$7.49

13

SPRING, COMPRESSION (1J7)

90504-06030-00

$9.49

14

CLIP

90467-090A2-00

$4.41

15

FUEL COCK ASSEMBLY 1

3G1-24500-03-00

Unavailable

16

O-RING

2G2-24534-00-00

Unavailable

17

VALVE

16G-24523-00-00

Unavailable

18

. WASHER, WAVE

16G-24518-00-00

Unavailable

19

PLATE, LVR FITTING

(2G2-24525-00-00)

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

NET, FILTER 1

3Y1-24514-00-00

Unavailable

22

O-RING

2G2-24512-00-00

Unavailable

23

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

24

GASKET, DRAIN PLUG

2G2-24522-00-00

Unavailable

25

LEVER, COCK

(2G2-24524-00-00)

Unavailable

26

SCREW 366241430000

90149-06008-00

Unavailable

27

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

28

HOSE (L770)

90445-090G9-00

Unavailable

29

CLIP 101235600

90467-08003-00

Unavailable

30

CLAMP(56R)

90464-60067-00

Unavailable

31

CAP ASSY

4R0-24602-01-00

Unavailable

32

GASKET, CAP

2M0-24641-00-00

Unavailable

33

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

34

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

35

PLATE, MOLD

2M0-24189-00-00

Unavailable

36

CLIP

90468-03063-00

Unavailable
