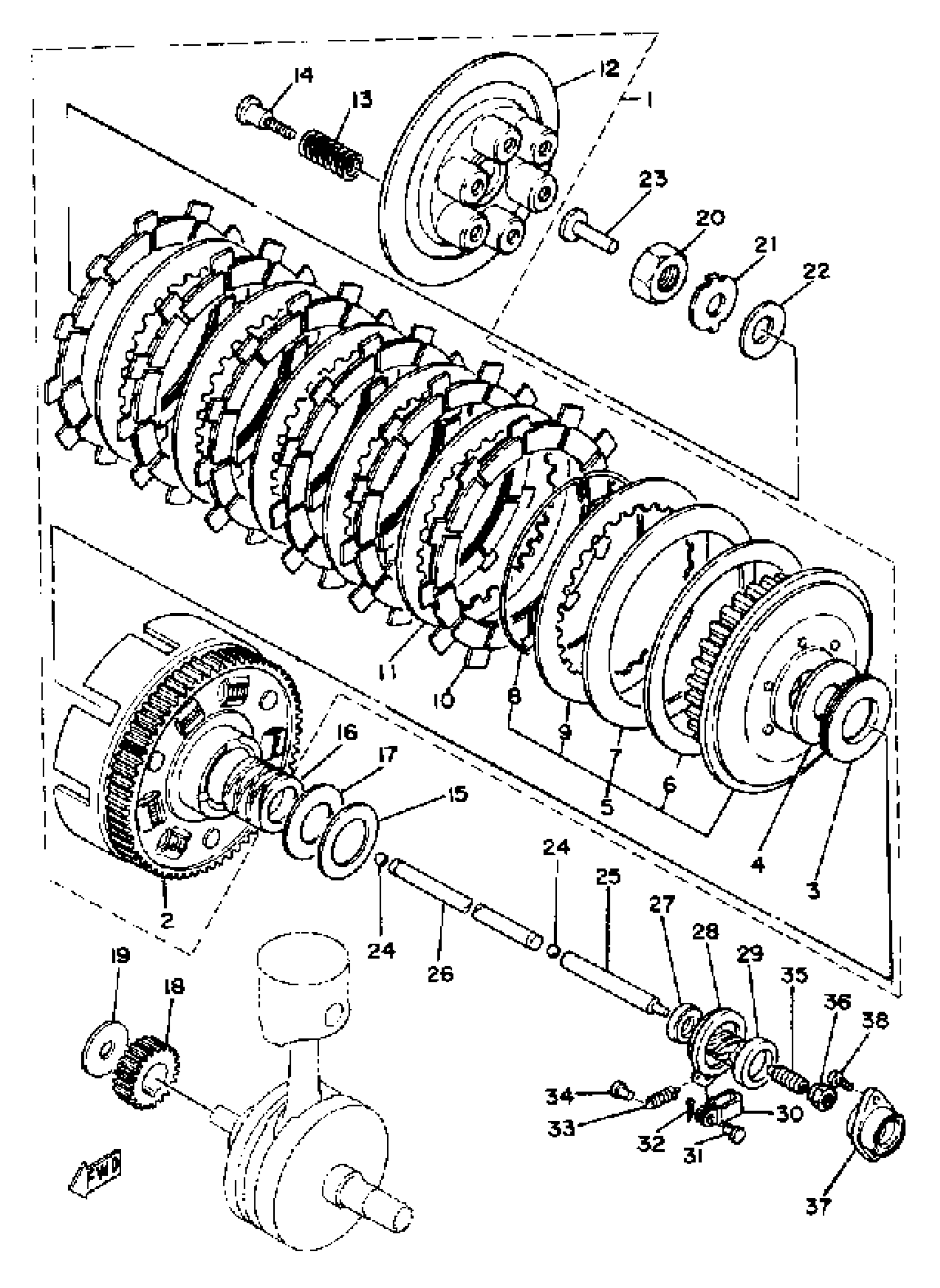

Yamaha XS650SH (XS650S) 1981 CLUTCH Diagram
#
1
CLUTCH ASSEMBLY
(1T3-16301-00-00)
Unavailable
2
PRI DRVN GEAR
(256-16150-02-00)
Unavailable
3
BEARING, FLAT #41
93341-23504-00
Unavailable
5
. CLUTCH BOSS ASSEMBLY
1T3-16370-00-00
Unavailable
6
.. PLATE, SEAT
2H7-16384-00-00
Unavailable
7
.. SPRING, CLUTCH BOSS
2H7-16383-00-00
Unavailable
8
.. RING, CLUTCH BOSS
1T3-16385-00-00
Unavailable
9
.. PLATE, CLUTCH 2
256-16325-00-00
Unavailable
12
. PLATE, PRESSURE 1
341-16351-01-00
Unavailable
14
SCREW (584)
90149-06102-00
Unavailable
15
WASHER, PLATE(1FK)
90201-256K6-00
Unavailable
16
SPACER
90560-25131-00
Unavailable
18
GEAR, PRI DRIVE
(256-16111-00-00)
Unavailable
19
WASHER, PLATE
90201-16579-00
Unavailable
20
NUT, HEXAGON (2H7)
90170-18221-00
Unavailable
21
WASHER, LOCK
90215-19139-00
Unavailable
22
WASHER, CONICAL SPRING
90208-18025-00
Unavailable
23
ROD, PUSH 1
256-16356-00-00
Unavailable
24
BALL
93505-16006-00
Unavailable
25
ROD, PUSH 2
447-16357-01-00
Unavailable
26
ROD, PUSH 3
341-16376-00-00
Unavailable
27
OIL SEAL (3G1)
93102-08206-00
Unavailable
28
PUSH LEVER ASSEMBLY
1T3-16340-00-00
Unavailable
29
SEAL, DUST
214-16347-01-00
Unavailable
30
JOINT
214-16389-00-00
Unavailable
31
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
32
. PIN, COTTER
91401-10015-00
Unavailable
33
SPRING, TENSION
90506-10023-00
Unavailable
34
HOOK, SPRING
132-16346-00-00
Unavailable
35
BOLT SET 256163430100
90113-08021-00
Unavailable
36
NUT
90179-08179-00
Unavailable
37
HOUSING, PUSH SCREW
371-16396-00-00
Unavailable
38
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
