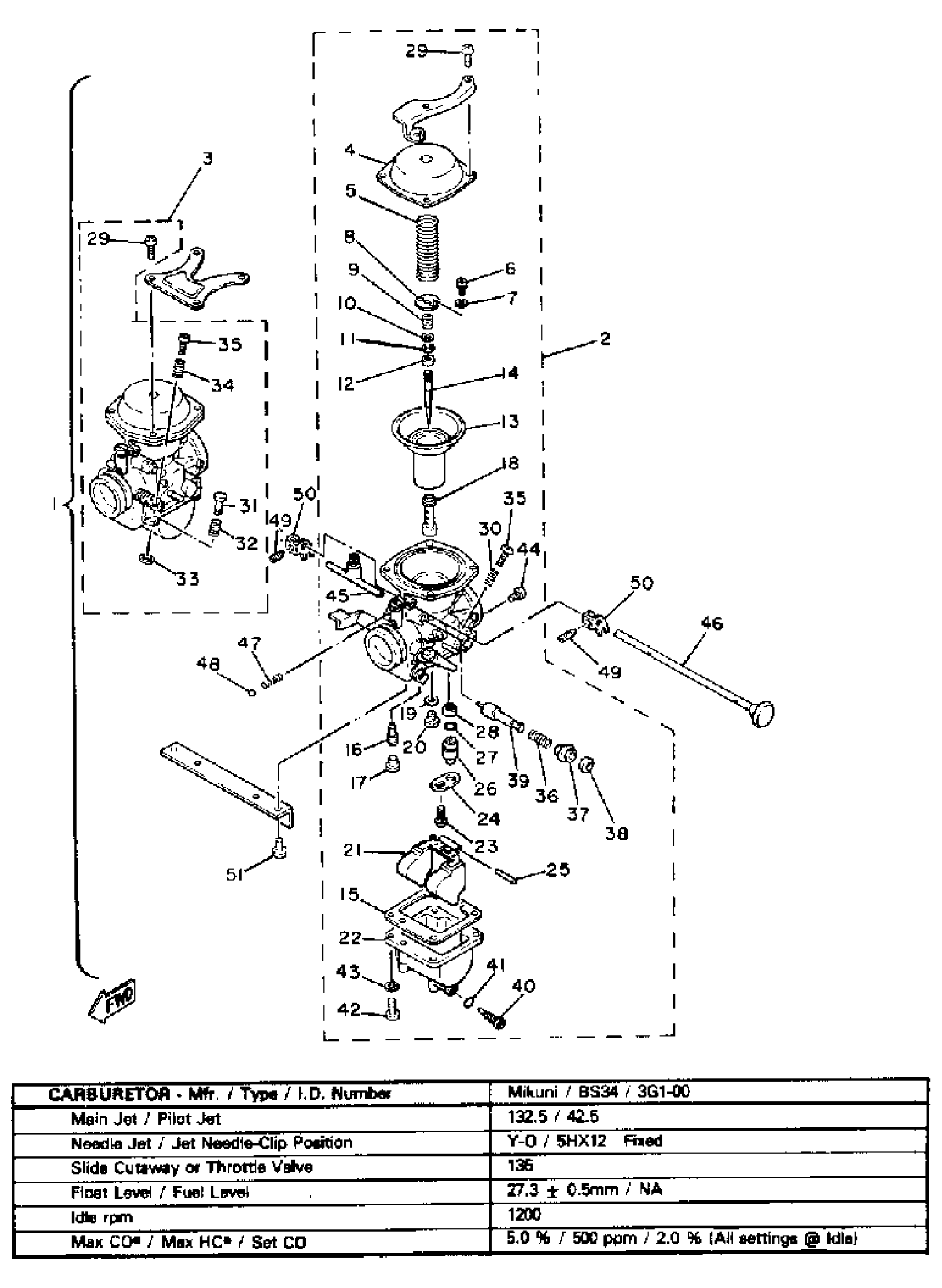

Yamaha XS650SH (XS650S) 1981 CARBURETOR Diagram

#

Description
Price

2

. CARBURETOR ASSEMBLY 1

3G1-14901-00-00

Unavailable

3

. CARBURETOR ASSEMBLY 2

3G1-14902-00-00

Unavailable

4

COVER, DIAPHRAGM

(3G1-14958-01-00)

Unavailable

5

.. SPRING, DIAPHRAGM

3G1-14933-00-00

Unavailable

6

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

7

WASHER, SPRING

92990-03100-00

$8.49

8

PLATE, DIAPHRAGM

3F7-14936-00-00

Unavailable

9

SPRING, NEEDLE

3F7-14589-00-00

$5.49

10

WASHER, PLATE (7Y2)

90201-037F2-00

Unavailable

11

CLIP

256-14919-00-00

$6.99

12

RING, NEEDLE

3F7-14918-00-00

$10.99

13

DIAPHRAGM ASSY

3F7-14940-00-00

$315.99

14

.. NEEDLE

2H7-14116-12-00

Unavailable

15

GASKET, FLOAT CHAMBER

3F7-14984-00-00

$57.99

16

.. JET, PILOT #425

256-14142-42-A0

Unavailable

17

SCREW, PLUG

3F7-14991-00-00

Unavailable

18

NOZZLE, MAIN

(2F3-14941-92-00)

Unavailable

19

WASHER,MAIN JET

137-14153-00-00

Unavailable

20

.. JET, MAIN #1325

620-14231-99-A0

Unavailable

21

FLOAT

3H5-14985-00-00

Unavailable

22

. BODY, FLOAT CHAMBER

3U6-14981-06-00

Unavailable

23

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

24

.. UNAVAILABLE IN PRICE BOOK

2H0-13146-00-00

Unavailable

25

PIN, FLOAT

537-14186-00-00

Unavailable

26

NEEDLE VALVE SET

25G-14107-20-00

Unavailable

27

O-RING

8F2-14147-00-00

Unavailable

28

NET, FILTER

1J7-14994-00-00

Unavailable

29

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

30

. SPRING, THROTTLE STOP

3F7-14133-00-00

Unavailable

31

. ROD, PUSH

584-14992-00-00

Unavailable

32

SPRING, THROTTLE STOP

(584-14934-00-00)

Unavailable

33

. CLIP

256-14937-00-00

Unavailable

34

. , SPRING, THROTTLE STOP

3F7-14934-00-00

Unavailable

35

. STOP SCREW SET

12R-1490K-00-00

Unavailable

36

.. SPRING, PLUNGER

3F7-14135-00-00

Unavailable

37

.. CAP, PLUNGER

3F7-14174-00-00

Unavailable

38

.. COVER, PLUNGER CAP

3F7-14173-00-00

Unavailable

39

.. PLUNGER, STARTER

3F7-14171-00-00

Unavailable

40

SCREW

2L1-14191-00-00

Unavailable

41

O-RING

214-14147-00-00

Unavailable

42

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

43

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

44

JET, MAIN (#135)

3G2-14231-27-00

Unavailable

45

.. PIPE, STARTER CON

3G1-14988-00-00

Unavailable

46

. SHAFT, STARTER LVR

3G1-14977-00-00

Unavailable

47

SPRING

583-14589-00-00

Unavailable

48

BALL

93501-08001-00

Unavailable

49

. SCREW, STARTER LEVER 2

584-14991-00-00

Unavailable

50

. LEVER, STARTER

3F7-14905-00-00

Unavailable

51

SCREW, PAN

98507-06014-00

Unavailable
