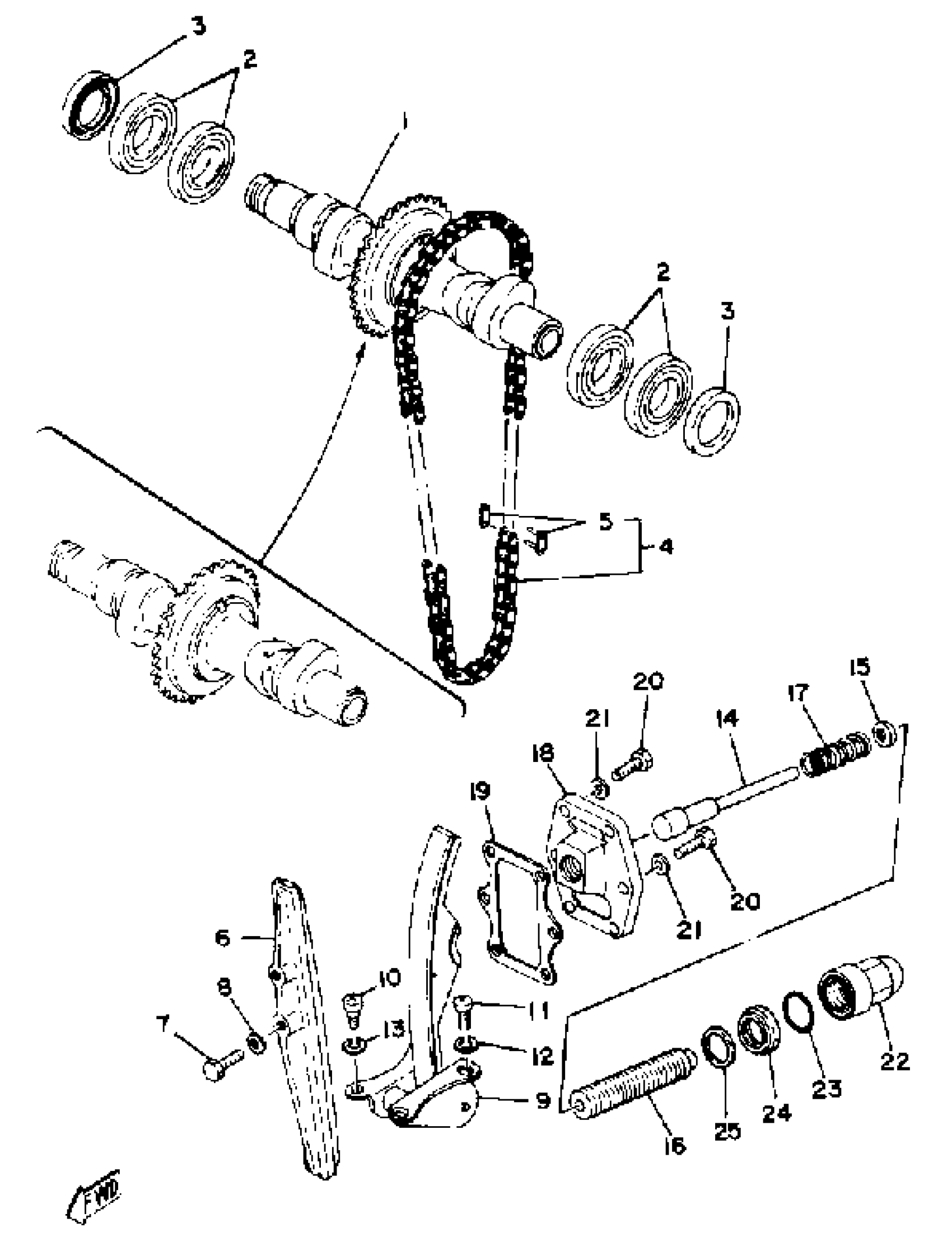

Yamaha XS650SH (XS650S) 1981 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSEMBLY 1

3G1-12170-00-00

Unavailable

2

BRG. (256)

93316-00501-00

$33.99

3

OIL SEAL (25X40X5-256)

93102-25090-00

$14.99

4

CHAIN, CAM SHAFT (583)

94500-02106-00

$68.99

4

CHAIN

94562-19106-00

Unavailable

5

JOINT, CHAIN (583)

94600-02001-00

$7.99

5

JOINT, CHAIN

94662-19001-00

$8.99

6

GUIDE, STOPPER 1

256-12231-01-00

Unavailable

7

BOLT(3DM)

97024-06020-00

$8.49

8

GASKET 256113960000

90430-06014-00

Unavailable

9

GUIDE, STOPPER 2

447-12220-00-00

Unavailable

10

SCREW, SPEC''L SHAPE

90149-06009-00

Unavailable

11

SCREW, PAN

98507-06014-00

$8.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

WASHER, SPRING

92995-06100-00

Unavailable

14

ROD, CHN TENSIONER

341-12217-04-00

Unavailable

15

DAMPER, CHAIN TENSIONER ROD

2H0-12232-00-00

Unavailable

16

BOLT

90109-18580-00

Unavailable

17

SPRING COMPRESSION341122160200

90501-14095-00

Unavailable

18

HOLDER, TENSIONER

584-12211-00-00

Unavailable

19

GASKET,TENSION CAS

306-12213-12-00

Unavailable

20

BOLT(3DM)

97024-06020-00

$8.49

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

NUT, CROWN

90176-18021-00

Unavailable

23

O-RING

93210-21190-00

Unavailable

24

NUT, SPEC''L SHAPE

90179-18274-00

Unavailable

25

GASKET (1J7)

90430-18130-00

Unavailable
