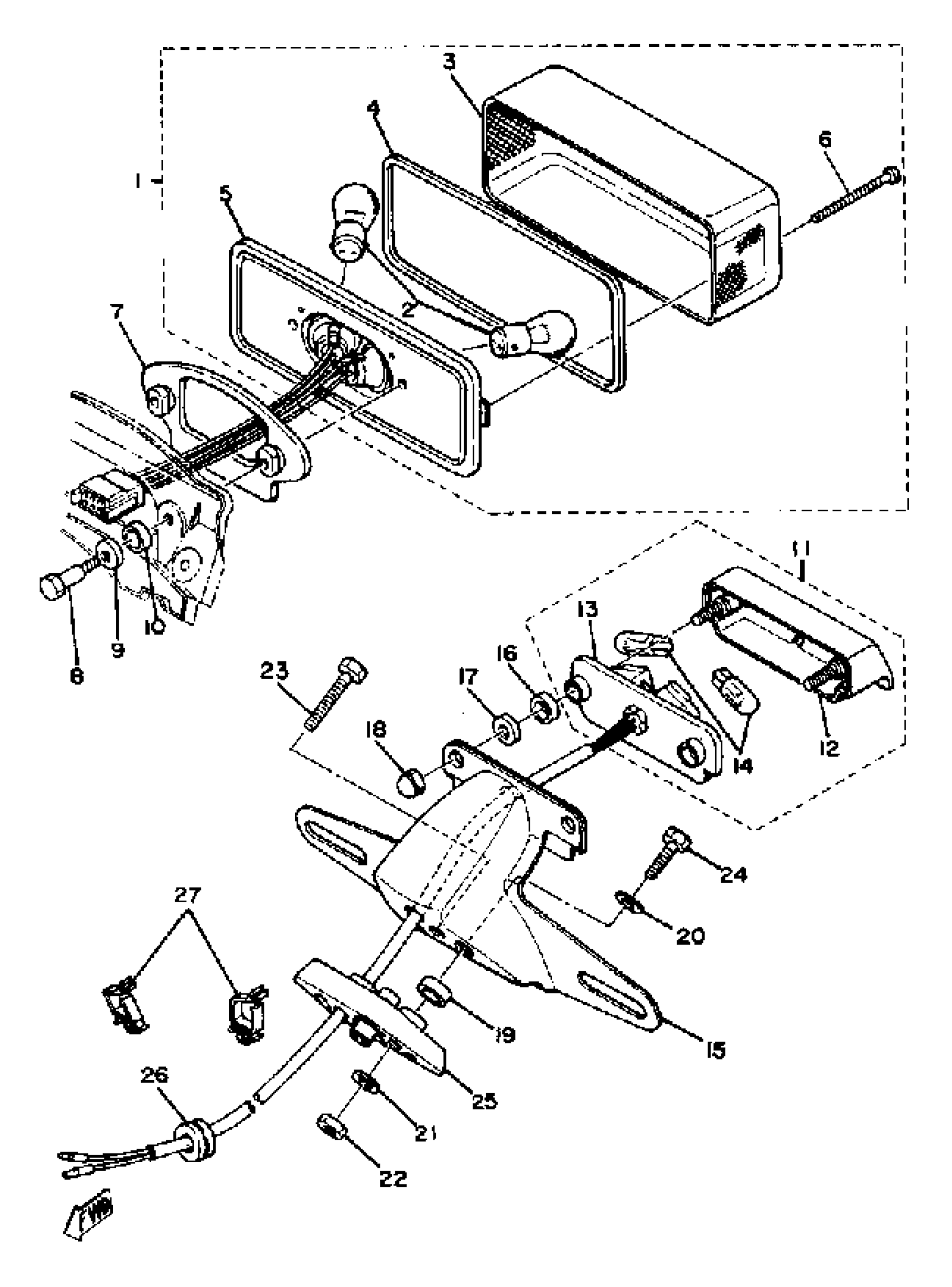

Yamaha XS650SE-114241 (XS650SE-114241) 1978 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$91.19

2

TAILLIGHT UNIT ASSY

1W9-84710-61-00

$91.19

3

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

4

GASKET, TAIL LENS

1M1-84523-60-00

$10.29

5

LENS, TAIL LAMP

1M1-84521-60-00

$34.25

6

SCREW, ADJUSTING

5BF-8433E-00-00

$5.70

7

SEAT, BASE

1M1-84512-60-00

Unavailable

8

BRACKET, LICENSE

2J2-84751-00-93

Unavailable

9

BOLT 337847520000

90109-06005-00

$5.86

10

WASHER, SPECIAL

2H7-84754-00-00

$9.70

11

DAMPER

1M1-84527-60-00

$7.03

12

REFLECTOR, REAR 1

449-85131-02-00

$24.04

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

NUT, HEXAGON (663)

95380-05600-00

$6.08

15

DAMPER

2M0-84753-00-00

Unavailable

16

BOLT 338845520000

90109-06022-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

$2.36

18

NUT, HEXAGON

95380-06600-00

$4.11

19

WASHER, SPRING

92995-06100-00

$2.95

20

CORD, TAIL LIGHT

438-84517-00-00

Unavailable

21

GROMMET (438)

90480-15061-00

Unavailable
