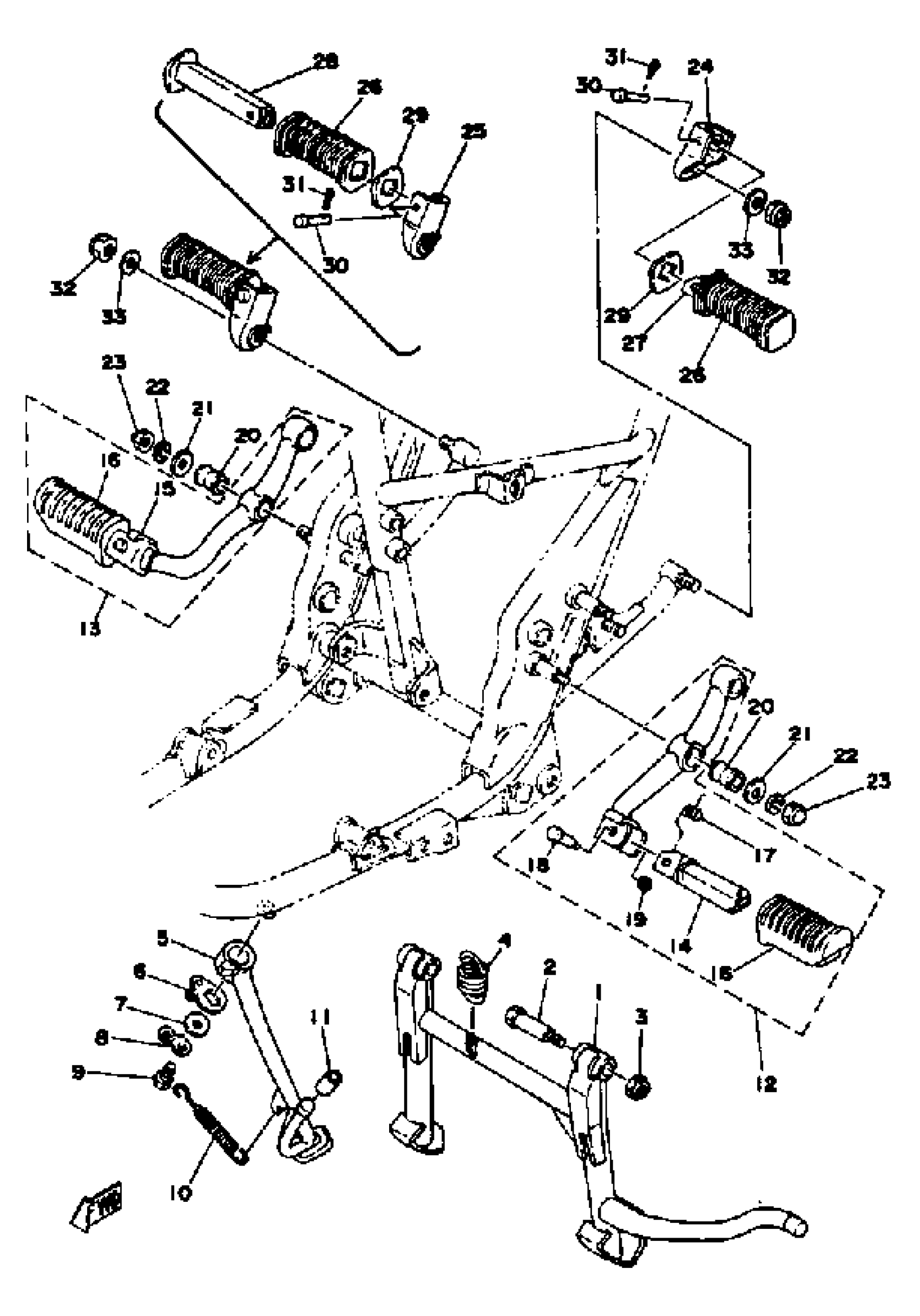

Yamaha XS650SE-114241 (XS650SE-114241) 1978 STAND FOOTREST Diagram

#

Description

Price

1

STAND, MAIN

1T3-27111-02-00

Unavailable

2

BOLT

90109-10268-00

Unavailable

3

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

4

SPRING, TENSION

90506-50064-00

Unavailable

5

STAND, SIDE

1T3-27311-00-00

Unavailable

6

HOOK, SIDE STAND

36Y-27352-00-00

Unavailable

7

WASHER, PLATE (5J0)

90201-085E6-00

$10.49

8

WASHER, SIDE STAND

36Y-27322-00-00

Unavailable

9

BOLT, HEXAGON

97013-08020-00

$1.16

10

SPRING (460)

90507-29009-00

$20.99

11

STOPPER

1T3-27314-00-00

Unavailable

11

STOPPER

278-27314-00-00

Unavailable

12

FRT FOOTREST ASY L

1T3-27410-00-93

Unavailable

13

FRT FOOTREST ASSEMBLY R

1T3-27420-00-93

Unavailable

14

FOOTREST

3CK-27451-00-00

Unavailable

15

FOOTREST

3N6-27461-00-00

Unavailable

16

COVER, FOOTREST

4L0-27423-00-00

Unavailable

17

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

18

PIN (214-27418-00)

90243-08006-00

Unavailable

19

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

20

DAMPER, FOOTREST

256-27414-00-00

Unavailable

21

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

22

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

23

NUT, CROWN(3BM)

90176-10073-00

Unavailable

24

BRACKET 1

3G1-27432-00-00

Unavailable

25

UNAVAILABLE IN PRICE BOOK

361-27442-00-00

Unavailable

25

BRACKET 2

3G1-27442-00-00

Unavailable

26

COVER, REAR FOOTREST

447-27433-00-00

Unavailable

27

FOOTREST, REAR 1

447-27431-00-00

Unavailable

28

FOOTREST, REAR 2

447-27441-00-00

Unavailable

29

WASHER 447274370000

90209-18070-00

Unavailable

30

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

30

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

31

PIN, COTTER

91490-16020-00

Unavailable

32

NUT CROWN(663)

95380-12800-00

Unavailable

33

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable
