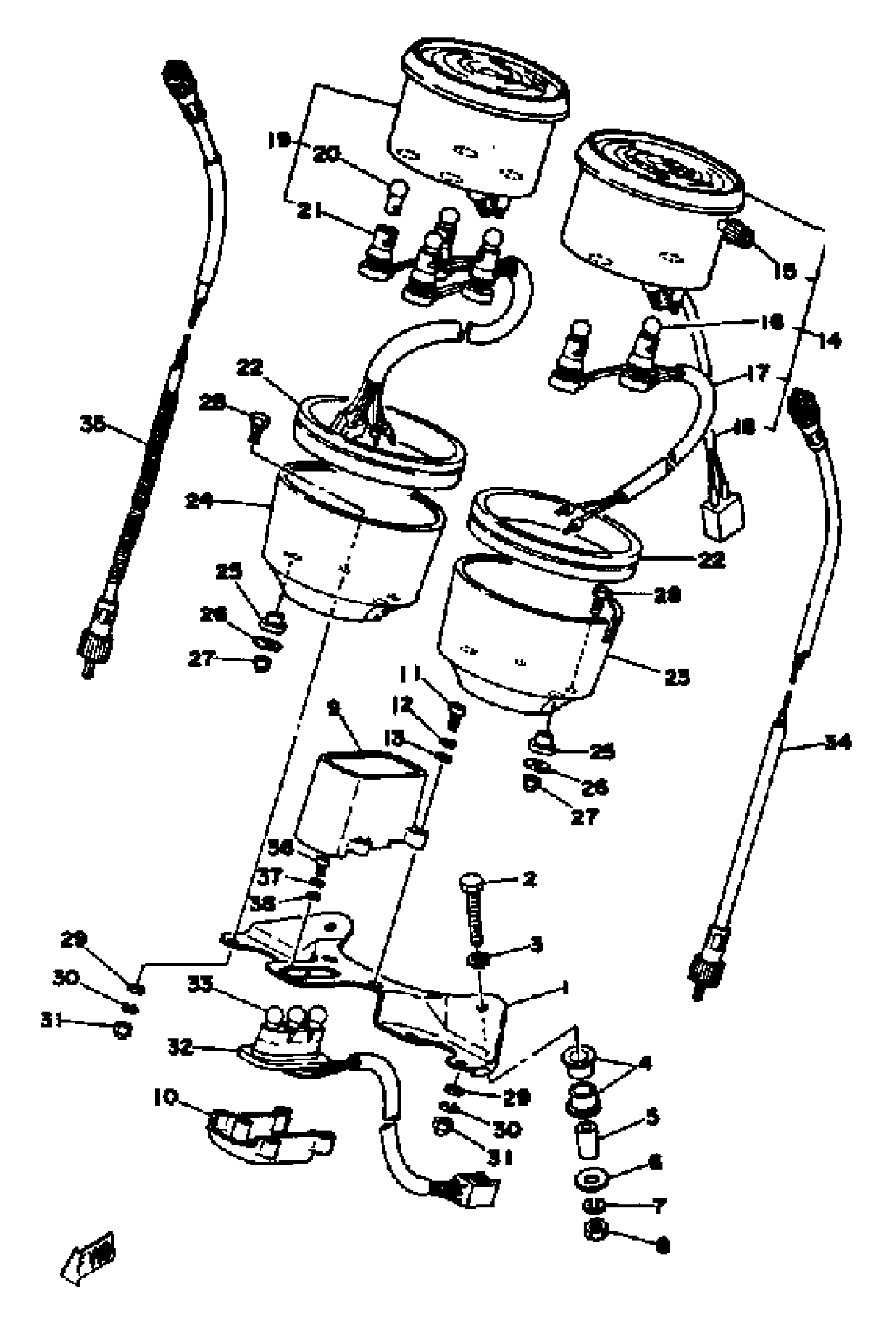

Yamaha XS650SE-114241 (XS650SE-114241) 1978 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

BRACKET, METER

2M0-83519-00-00

Unavailable

2

BOLT(8BC)

97017-06040-00

$9.49

3

WASHER(6TA)

92907-06600-00

$2.72

4

DAMPER, METER BRACKET

584-83541-00-00

Unavailable

5

COLLAR (877)

90387-06249-00

$4.99

6

WASHER, PLATE

90201-06380-00

$0.60

7

WASHER, SPRING

92995-06100-00

Unavailable

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

PILOT BOX, UPPER

2M0-83568-00-00

Unavailable

9

PILOT BOX, UPPER

3G1-83568-A0-00

Unavailable

10

PILOT BOX, LOWER

2G2-83569-A0-00

Unavailable

11

SCREW, PAN HEAD

98517-04012-00

$3.88

12

WASHER(6TA)

92907-04100-00

$8.49

13

WASHER(JF2)

92907-04600-00

$1.71

14

SPEEDOMETER ASSEMBLY

2J2-83570-A0-00

Unavailable

14

SPEEDOMETER ASSY

5H1-83570-A0-00

Unavailable

15

KNOB, TRIP METER

4SV-83578-00-00

Unavailable

16

BULB (12V-3.4W)

123-83516-21-00

Unavailable

17

SOCKET, METER

(3J6-83536-00-00)

Unavailable

17

SOCKET, METER

(584-83536-01-00)

Unavailable

18

. SENDER

1J3-83556-01-00

Unavailable

18

. SENDER

2H7-83556-00-00

Unavailable

19

TACHOMETER ASSEMBLY

3G0-83540-A0-00

Unavailable

19

TACHOMETER ASSEMBLY

3X4-83540-00-00

Unavailable

20

BULB (12V-3.4W)

123-83516-21-00

Unavailable

20

BULB (12V-3.4W)

123-83516-21-00

Unavailable

21

SOCKET CORD ASSEMBLY

(2G2-83520-00-00)

Unavailable

21

SOCKET CORD ASSEMBLY

(3J3-83520-01-00)

Unavailable

22

DAMPER

3H3-83513-00-00

Unavailable

23

COVER, SPEEDOMETER

2J2-83507-00-00

Unavailable

24

COVER, TACHOMETER

2J2-83508-00-00

Unavailable

25

UNAVAILABLE IN PRICE BOOK

584-83523-01-00

Unavailable

26

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

27

NUT (CROWN)

95303-05800-00

Unavailable

28

BOLT

584-83546-00-00

Unavailable

29

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

30

WASHER, SPRING

92995-06100-00

Unavailable

31

NUT (J17)

95380-06800-00

Unavailable

32

SOCKET CORD ASSEMBLY

3G1-83509-00-00

Unavailable

33

BULB (12V-3.4W)

123-83516-21-00

Unavailable

34

UNAVAILABLE IN PRICE BOOK (341-83550-00)

341-83440-01-00

Unavailable

35

TACHOMETER CABLE

447-83560-01-00

Unavailable

36

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

37

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

38

WASHER, PLAIN (646)

92990-04600-00

Unavailable
