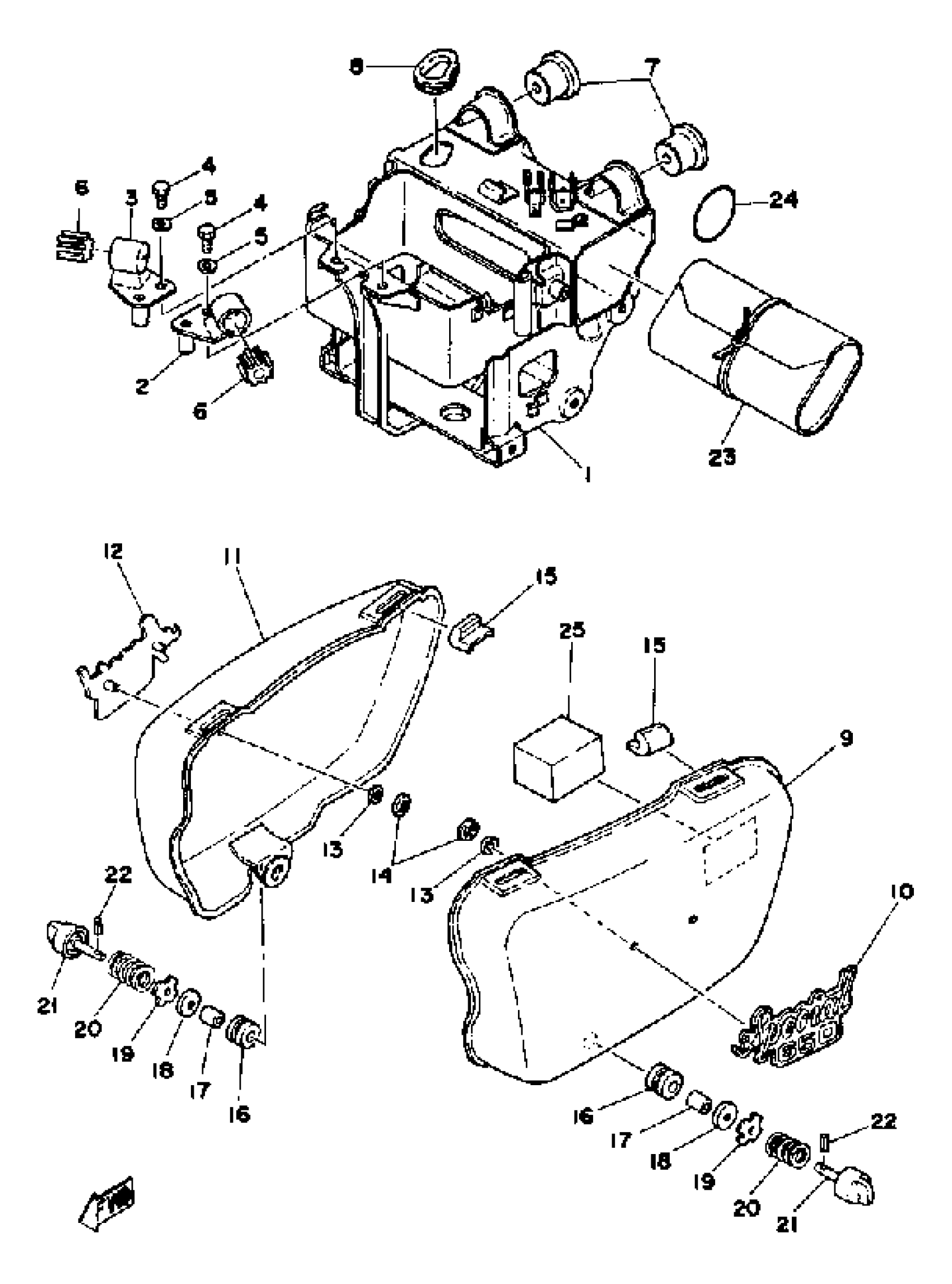

Yamaha XS650SE-114241 (XS650SE-114241) 1978 SIDE COVER-BATTERY BOX Diagram

#

Description

Price

1

BOX, BATT.

(447-21170-04-33)

Unavailable

2

BRACKET, BATT BOX

447-21149-00-00

Unavailable

3

BRACKET, BATT BOX

447-21344-00-00

Unavailable

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, SPRING

92995-06100-00

Unavailable

6

DAMPER, SIDE COVER

2J2-21729-00-00

$5.49

7

DAMPER

256-21747-00-00

Unavailable

8

BRACKET, BATTERY

(447-82128-00-00)

Unavailable

9

COVER, SIDE 1

2M0-21711-00-E9

Unavailable

9

COVER, SIDE 1

2M0-21711-00-H7

Unavailable

9

COVER, SIDE 1

2M0-21711-00-H9

Unavailable

9

COVER, SIDE 1

(2M0-21711-00-J9)

Unavailable

10

EMBLEM 1

2M0-21781-00-00

Unavailable

11

COVER, SIDE 2

2M0-21721-00-E9

Unavailable

11

COVER, SIDE 2

2M0-21721-00-H7

Unavailable

11

COVER, SIDE 2

2M0-21721-00-H9

Unavailable

11

COVER, SIDE 2

2M0-21721-00-J9

Unavailable

12

EMBLEM 2

2M0-21782-00-00

Unavailable

13

WASHER PLATE 174283160000

90202-04003-00

Unavailable

14

NUT SPRING 116283170100

90183-04005-00

Unavailable

15

DAMPER, SIDE COVER

466-21717-00-00

Unavailable

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

COLLAR

90387-07020-00

Unavailable

18

WASHER, PLATE

90201-06095-00

Unavailable

19

WASHER, SPEC''L SHAP

90209-06044-00

Unavailable

20

SPRING, COMPRESSION

90501-18205-00

Unavailable

21

KNOB, SIDE COVER 1

447-21714-01-00

Unavailable

22

PIN, SPRING

91690-25016-00

Unavailable

23

TOOL KIT

3J3-W2810-00-00

Unavailable

24

O-RING

93210-40040-00

Unavailable

25

DAMPER

447-21746-00-00

Unavailable
